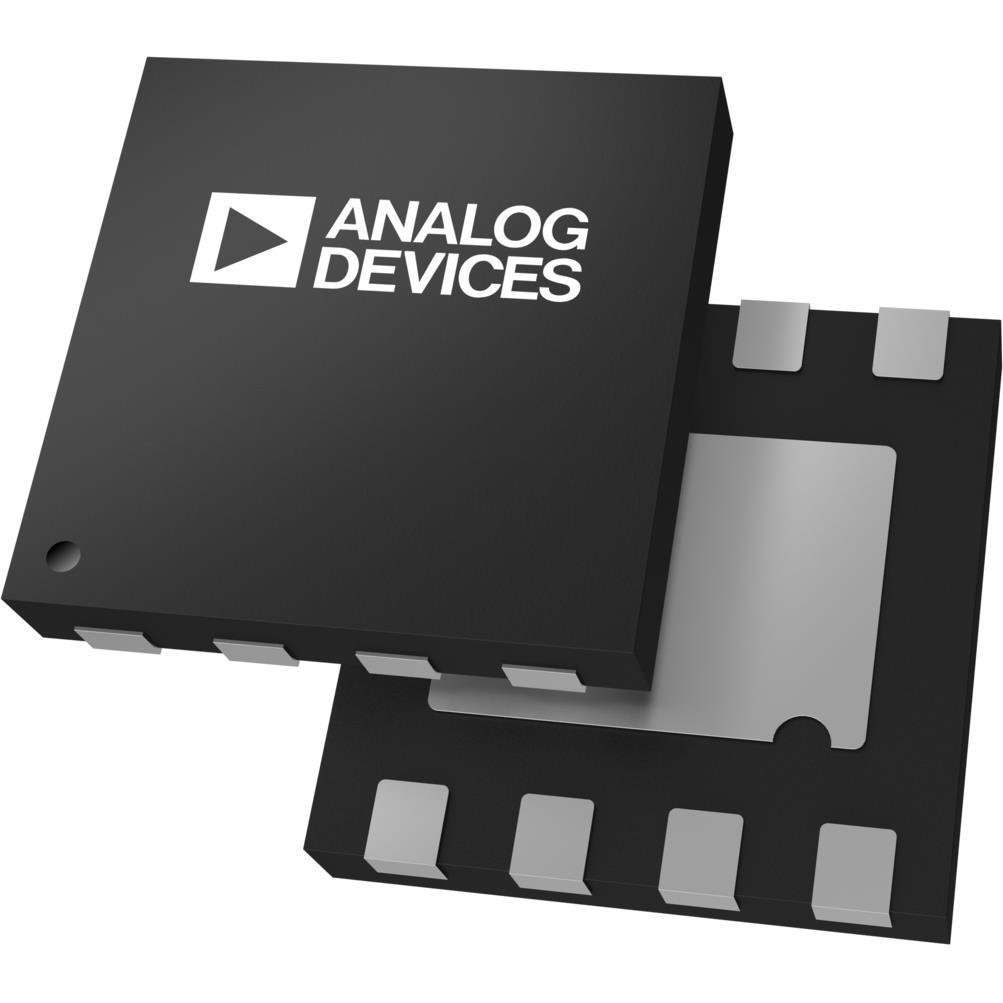

8-LFCSP-UD
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

ADL5721ACPZN-R7

DigiKey Part Number
ADL5721ACPZN-R7TR-ND - Tape & Reel (TR)
ADL5721ACPZN-R7CT-ND - Cut Tape (CT)
ADL5721ACPZN-R7DKR-ND - Digi-Reel®
Manufacturer
Analog Devices Inc.
Manufacturer Product Number
ADL5721ACPZN-R7
Description
IC RF AMP 5.9GHZ-8.5GHZ 8LFCSP
Manufacturer Standard Lead Time
10 Weeks
Customer Reference
Detailed Description
RF Amplifier IC 5.9GHz ~ 8.5GHz 8-LFCSP-UD (2x2)
Datasheet
 Datasheet
EDA/CAD Models
ADL5721ACPZN-R7 Models
Product Attributes
Type
Description
Select All
Category
Manufacturer
Analog Devices Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status
Active
Frequency
5.9GHz ~ 8.5GHz
P1dB
-10dBm
Gain
25dB
Noise Figure
1.7dB
RF Type
-
Voltage - Supply
3.3V
Current - Supply
74mA
Test Frequency
-
Mounting Type
Surface Mount
Package / Case
8-UFDFN Exposed Pad, CSP
Supplier Device Package
8-LFCSP-UD (2x2)
Base Product Number
ADL5721
Product Questions and Answers

See what engineers are asking, ask your own questions, or help out a member of the DigiKey engineering community

In-Stock: 2,351
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Cut Tape (CT) & Digi-Reel®
QuantityUnit PriceExt Price
1$220.97000$220.97
10$192.91100$1,929.11
25$183.18160$4,579.54
100$169.83680$16,983.68
250$161.85532$40,463.83
500$156.22788$78,113.94
* All Digi-Reel orders will add a $55.00 reeling fee.
Tape & Reel (TR)
QuantityUnit PriceExt Price
3,000$136.83075$410,492.25
Manufacturers Standard Package
For Use With
1 Items
ADL5721-EVALZ

ADL5721-EVALZ

EVALUATION BOARD FOR ADL5721

Analog Devices Inc.

$2,567.11000
