2380-5121TG 3M | Connectors, Interconnects

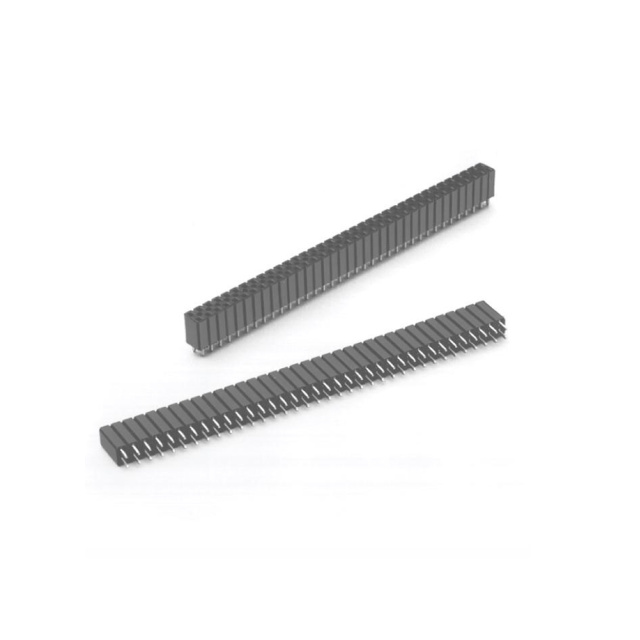

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

2380-5121TG
DigiKey Part Number	3M158753-ND
Manufacturer	3M
Manufacturer Product Number	2380-5121TG
Description	CONN HEADER R/A 80POS 2.54MM
Customer Reference
Detailed Description	Connector Header Through Hole, Right Angle 80 position 0.100" (2.54mm)
Datasheet	Datasheet
EDA/CAD Models	2380-5121TG Models

Product Attributes

Type	Description	Select All
Category	Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Mfr	3M
Series	2300
Packaging	Bulk
Part Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	80
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	-
Insulation Height	0.242" (6.14mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Glass Filled
Features	-
Operating Temperature	-55°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	-
Base Product Number	2380
