WR-FFC Series Flat Flexible Cables

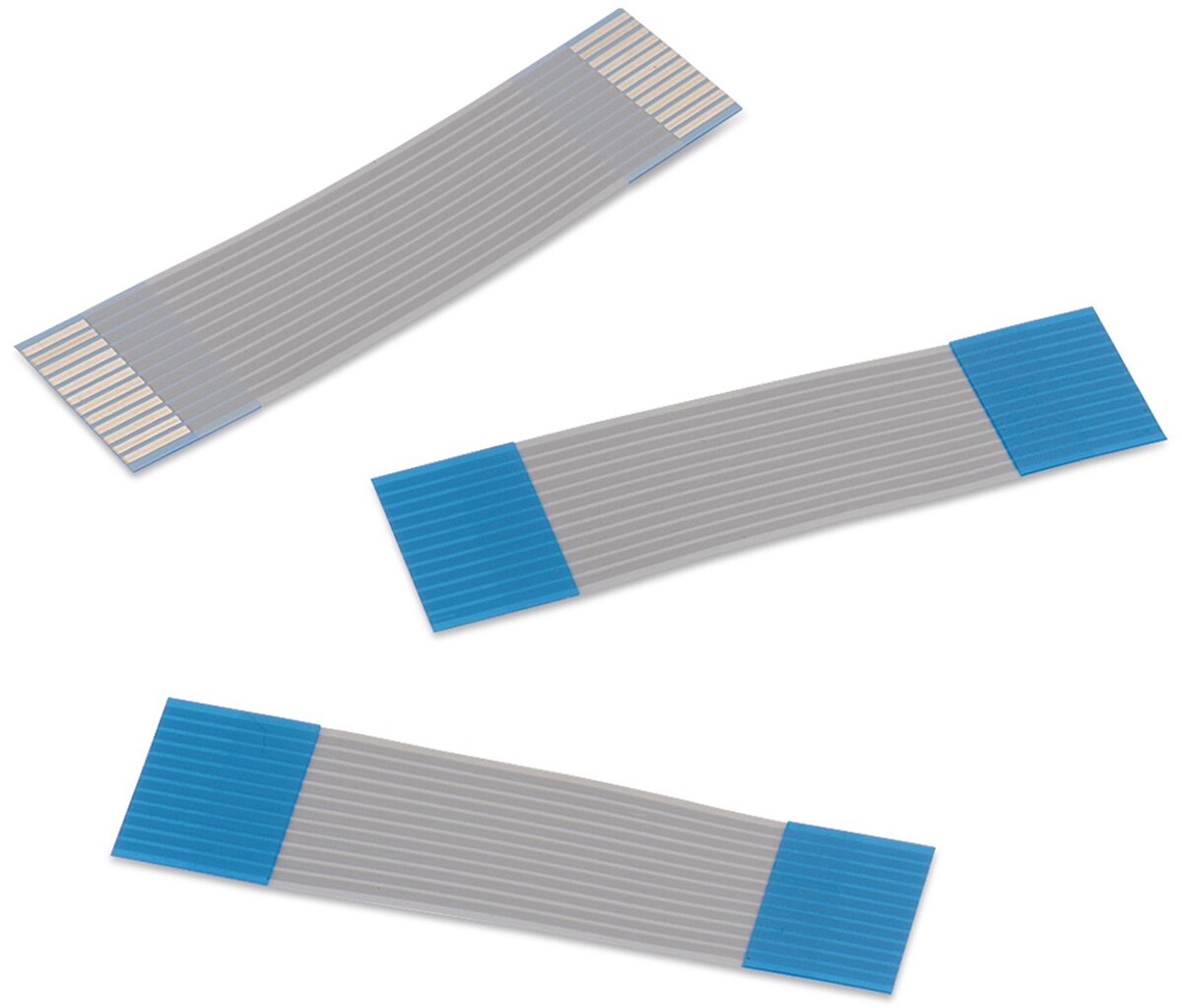

Würth Elektronik’s WR-FFC series compact cables are very flexible and can be bent and folded to save space
Würth Elektronik’s WR-FFC series flat flexible cables (FFC) are typically used in LCD screens, board-to-board solutions for medical devices, test and measurement equipment, industrial applications, consumer electronics, and many other kinds of equipment requiring a small, strong, and flexible cable for data transmission purposes. The cable usually consists of a flat and flexible plastic film base with multiple metal plated conductors bonded to one of its surfaces. Each end of the cable is usually reinforced with a stiffener to facilitate insertion into the connector.
FFCs can be used with WR-FPC zero insertion force (ZIF) or WR-FPC low insertion force (LIF) connectors which are counterparts fixed to the printed circuit board.
Features
- Compact, thin, and light to save space
- Phosphor bronze contacts offering good conductivity and high flexibility
- Tin plating offering low contact resistance and high resistance to corrosion
- PET housing for a flexible insulator with tensile strength
- Flexible to be bent and folded
- UL marking on each FFC compliance guaranteed by an external lab
- Current rating in accordance with electrical properties of ZIF connectors:
- 0.5 A for the 0.5 mm pitch
- 1 A for the 1 mm pitch
Applications
- LCD screens
- Medical devices
- Test and measurement equipment
- Industrial
- Consumer electronics
WR-FFC Series
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | 687624050002 | CABLE FFC/FPC 24POS 0.5MM 1.97" | 600 - Immediate | $24.28 | View Details |
|  | 687624100002 | CABLE FFC/FPC 24POS 0.5MM 3.94" | 441 - Immediate | $24.28 | View Details |
|  | 686714100001 | CABLE FFC/FPC 14POS 1MM 3.94" | 496 - Immediate | $24.28 | View Details |
|  | 687614050002 | CABLE FFC/FPC 14POS 0.5MM 1.97" | 1268 - Immediate | $27.00 | View Details |
|  | 687712100002 | CABLE FFC/FPC 12POS 0.5MM 3.94" | 3284 - Immediate | $24.28 | View Details |
|  | 687750050002 | CABLE FFC/FPC 50POS 0.5MM 1.97" | 724 - Immediate | $24.28 | View Details |
|  | 687650100002 | CABLE FFC/FPC 50POS 0.5MM 3.94" | 4666 - Immediate | $24.28 | View Details |
|  | 687740200002 | CABLE FFC/FPC 40POS 0.5MM 7.87" | 1855 - Immediate | $24.28 | View Details |
|  | 687730100002 | CABLE FFC/FPC 30POS 0.5MM 3.94" | 2036 - Immediate | $24.28 | View Details |
|  | 687612100002 | CABLE FFC/FPC 12POS 0.5MM 3.94" | 0 - Immediate | $24.28 | View Details |
|  | 687718100002 | CABLE FFC/FPC 18POS 0.5MM 3.94" | 108 - Immediate | $24.28 | View Details |
|  | 687620200002 | CABLE FFC/FPC 20POS 0.5MM 7.87" | 599 - Immediate | $24.28 | View Details |
|  | 687750152002 | CABLE FFC/FPC 50POS 0.5MM 5.98" | 1821 - Immediate | $24.28 | View Details |
|  | 686715152001 | CABLE FFC/FPC 15POS 1MM 5.98" | 3618 - Immediate | $24.28 | View Details |
|  | 687706050002 | CABLE FFC/FPC 6POS 0.5MM 1.97" | 346 - Immediate | $24.28 | View Details |
|  | 687640050002 | CABLE FFC/FPC 40POS 0.5MM 1.97" | 543 - Immediate | $24.28 | View Details |
| | 687730152002 | CABLE FFC/FPC 30POS 0.5MM 5.98" | 358 - Immediate | $24.28 | View Details |
|  | 687650050002 | CABLE FFC/FPC 50POS 0.5MM 1.97" | 740 - Immediate | $24.28 | View Details |
|  | 687740050002 | CABLE FFC/FPC 40POS 0.5MM 1.97" | 1443 - Immediate | $24.28 | View Details |
|  | 687626100002 | CABLE FFC/FPC 26POS 0.5MM 3.94" | 118 - Immediate | $24.28 | View Details |
