WIRL-COMB: Stephano-I Radio Module

Product Highlights > WIRL-COMB: Stephano-I Radio Module

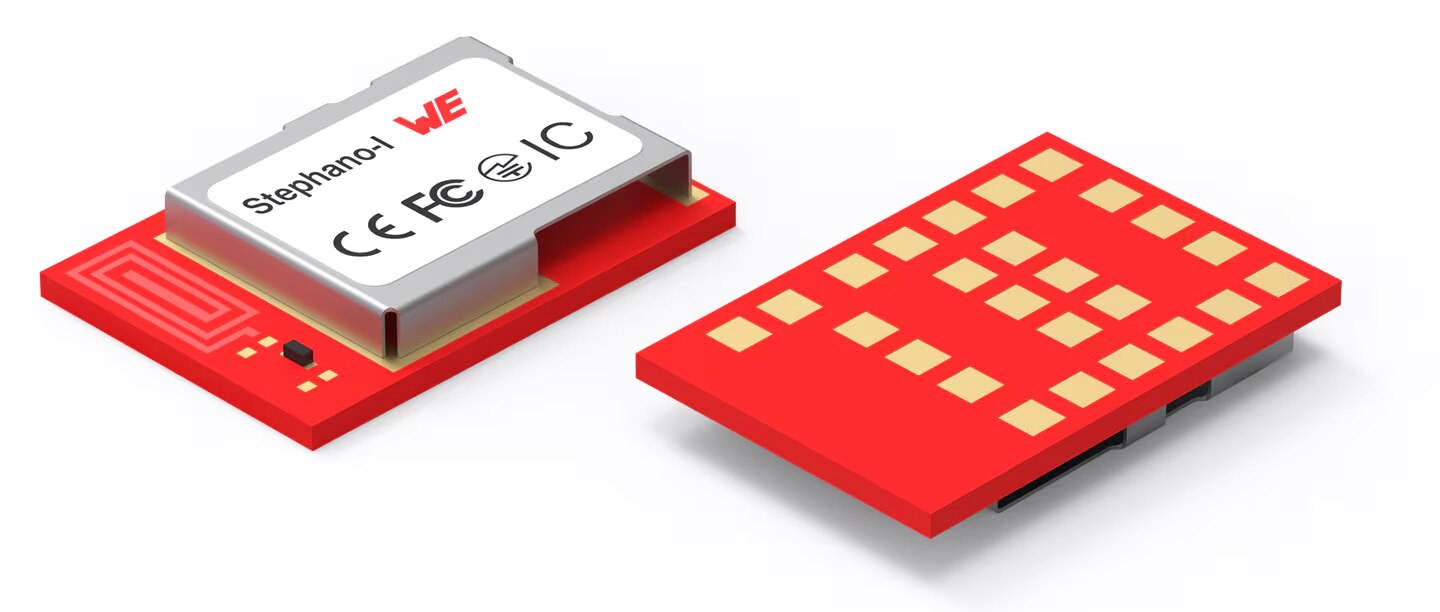

            WIRL-COMB: Stephano-I Radio Module
                    Würth Elektronik Stephano-I Wi-Fi® and Bluetooth® LE 2.4 GHz radio modules are suited for IoT applications


The Würth Elektronik Stephano-I is a compact radio module designed for IoT applications, combining Wi-Fi and BLE capabilities, allowing low-power connectivity with smart devices. The module operates through a UART interface, controlled via AT commands, making it easy to integrate with a host microcontroller. Stephano-I is ideal for embedded systems needing wireless communication.

Features

Combo module with IEEE 802.11 b/g/n Wi-Fi and BLE 5.0
Up to 5 MBaud UART rate with flow control
Based on the 32-bit RISC-V single-core processor Espressif ESP32-C3 with up to 160 MHz
Low power capabilities
FOTA update possible
Can act as station as well as soft access point
Full TCP/IP stack

MQTT and HTTP
Provides WPAPSK, WPA2PSK, and WPA/WPA2PSK encryption methods in soft access point configuration
WE-SPP-like profile, HID profile
Long range and advanced 2 Mbit data rate radio profile, besides the legacy 1 Mbit radio profile
Set up to three congruent BLE connections simultaneously
Peripheral/central and broadcaster/observer roles for BLE
