Wolfspeed

1700 V Silicon Carbide MOSFETs

Wolfspeed 1700 V silicon carbide MOSFETs enable faster switching and enhance reliability

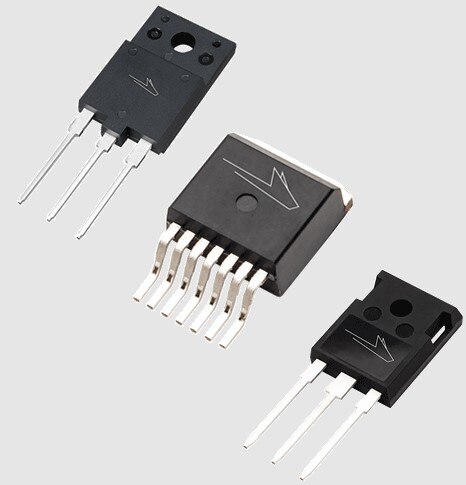

Image of Wolfspeed 1700 V Silicon Carbide MOSFETsWolfspeed’s 1700 V silicon carbide (SiC) MOSFETs allow designers to experience high-speed switching with low capacitances, higher system efficiency, and simplified circuit solutions.

The 1700 V SiC MOSFETs from Wolfspeed are optimized for excellent versatility in auxiliary power supplies. The ultra-wide 12 V to 18 V turn-on gate voltage range coupled with 0 V turn-off voltage enables simplified auxiliary power supply designs without the need for additional voltage regulators or negative bias.

Features
  • Wide VGS(on) range:
    • 12 V to 18 V for industrial
    • 12 V to 15 V for automotive
  • Simple turn off with 0 V VGS(off)
  • High-speed switching with low capacitances
  • Halogen-free, RoHS compliant
  • High blocking voltage with low on-resistance
  • Ultra-low drain-gate capacitance
  • Robust operation under high-humidity and high-temperature environmental conditions
Applications
  • Auxiliary power supplies
  • Switch mode power supplies
  • High-voltage capacitive loads

1700 V Silicon Carbide MOSFETs

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
SICFET N-CH 1700V 4.4A TO247-3C3M0900170DSICFET N-CH 1700V 4.4A TO247-30 - ImmediateSee Page for PricingView Details
SICFET N-CH 1700V 4.4A D2PAK-7C3M0900170J-TRSICFET N-CH 1700V 4.4A D2PAK-7208 - ImmediateSee Page for PricingView Details
SIC, MOSFET, 900M, 1700V, TO-247C3M0900170MSIC, MOSFET, 900M, 1700V, TO-2470 - Immediate$53.54View Details
SIC, MOSFET, 900M, 1700V, TO-247E3M0900170DSIC, MOSFET, 900M, 1700V, TO-247415 - Immediate$55.67View Details
SIC, MOSFET, 900M, 1700V, TO-263E3M0900170J-TRSIC, MOSFET, 900M, 1700V, TO-2630 - Immediate$55.67View Details
Published: 2025-03-19
