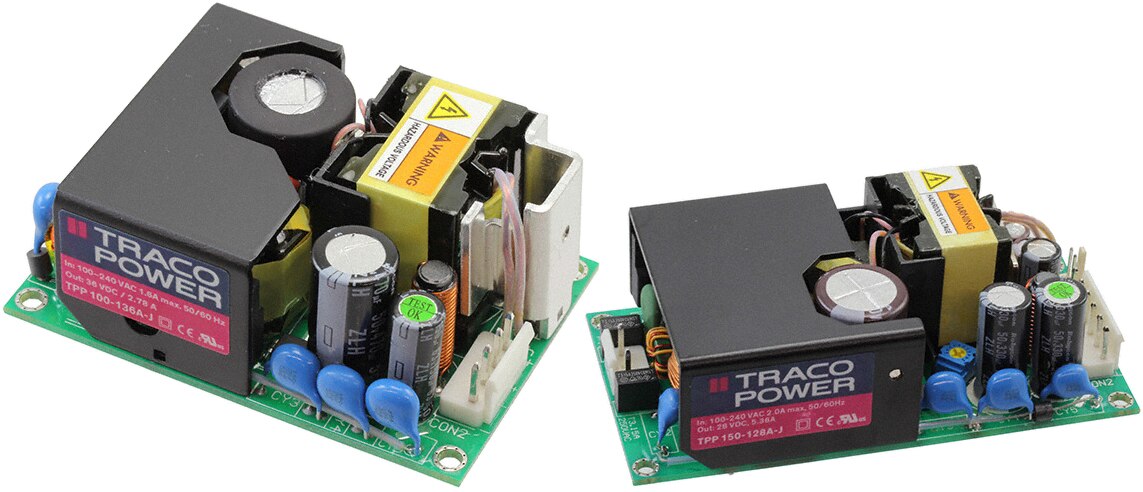

TPP 100A-J/150A-J Series Miniature Open-Frame AC/DC Power Supplies
Traco Power's 100 watt 2" x 3” and 150 watt 2" x 4” footprint power supplies
TRACO POWER's TPP 100A-J and TPP 150A-J series of high-efficiency power supplies utilize industrial grade components for reliable full-load operation over extended temperatures (with or without cooling fans). These features make them ideal for high-density applications where the noise and cost of a cooling fan is prohibitive. Double reinforced insulation, 4 k VAC isolation and <75 µA leakage current make these products appropriate for 2xMOPP and Type BF medical applications. High reliability of 780 k hours (at +25°C per MIL-HDBK-217F) is supported by TRACO POWER's five-year warranty.

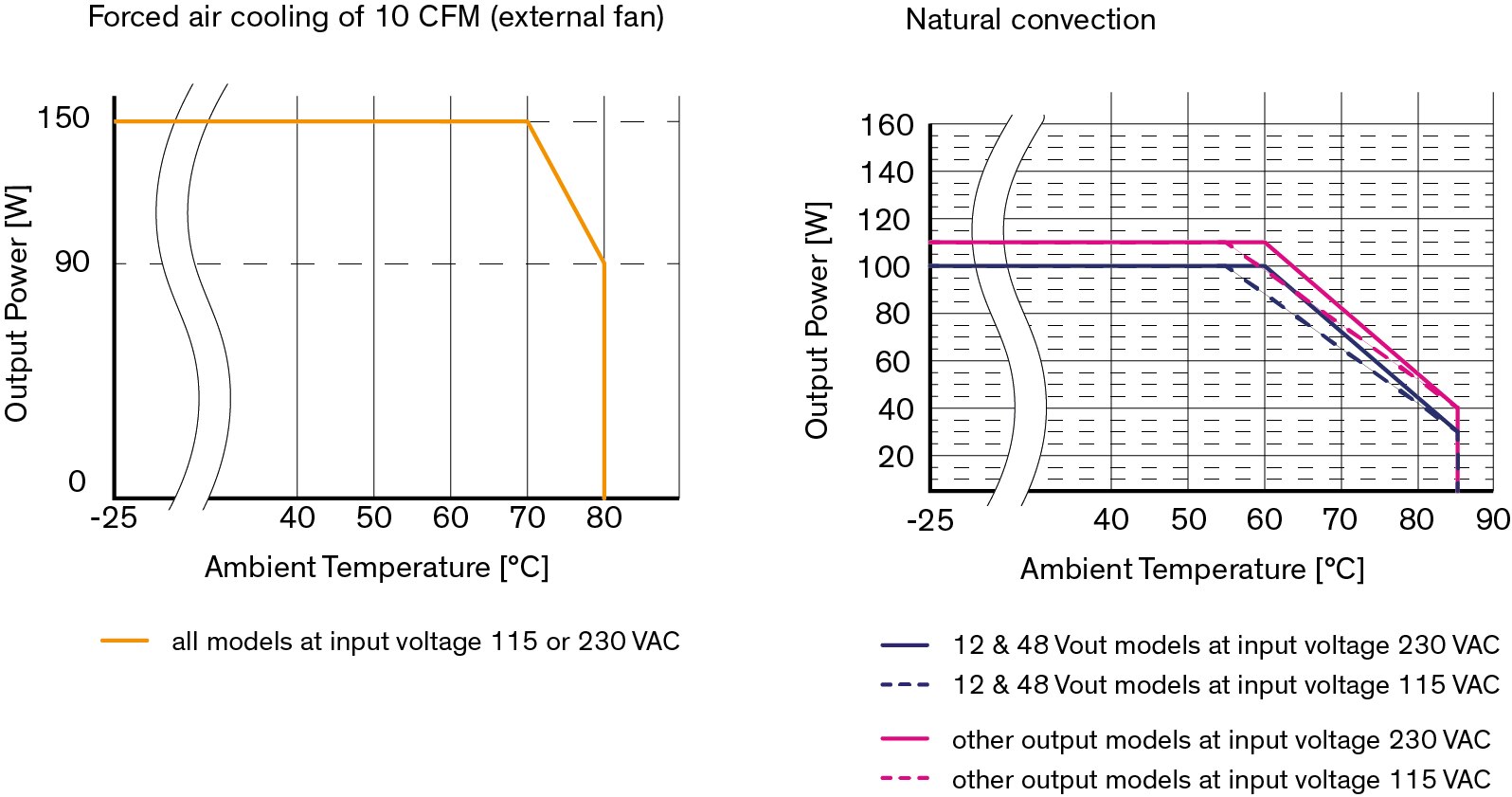

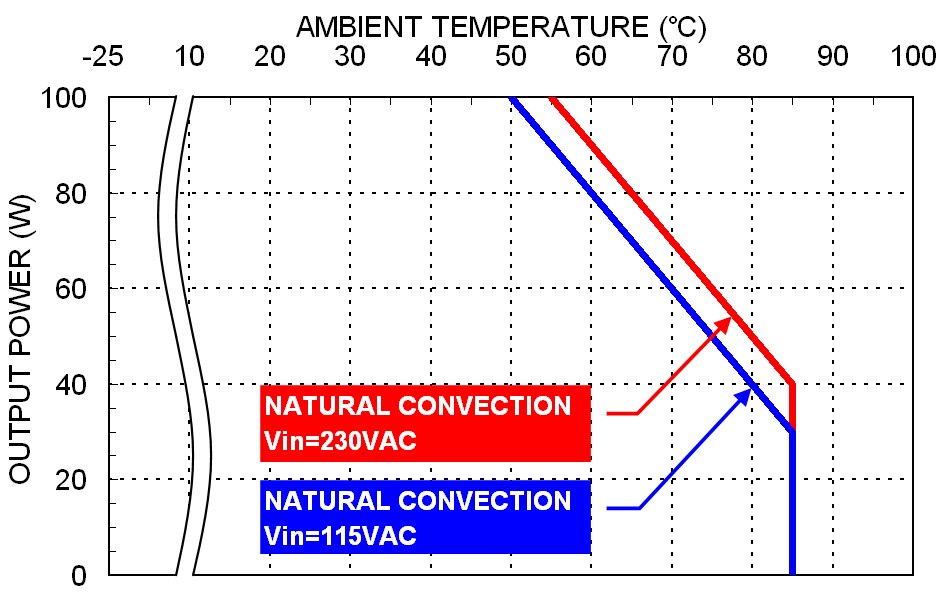

Thermal performance
- -25°C to +85°C operating temperature
- Full load/convection rated +55°C or +60°C (model dependent)
- Full load operation up to +70°C with 10 cfm airflow (TPP 150)
Resources
Features
- Excellent efficiency up to 92%
- Max 0.3 watt no-load power consumption (ErP ready)
- Medical IEC/EN/ES 60601-1 3rd edition safety approvals
- ITE safety approvals IEC/EN/UL 60950-1
- EMC compliance to EN55011 and IEC60601-1-2 4th Edition
- Meets EN55032 class B conducted EMC emissions limits
- Risk management file per ISO 14971
- Input protection class I and class II
- 12 V aux fan output (150 W models)
TPP 100A-J Series 2" x 3” AC/DC Power Supplies
| Image | Manufacturer Part Number | Description | Voltage - Output 2 | Voltage - Output 6 | Voltage - Isolation | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 |  | TPP 100-112A-J | AC/DC CONVERTER 12V 100W | - | - | 4 kV | 8 - Immediate | $755.70 | View Details |
|  | TPP 100-115A-J | AC/DC CONVERTER 15V 100W | - | - | 4 kV | 13 - Immediate | $755.70 | View Details |
| | TPP 100-124A-J | AC/DC CONVERTER 24V 100W | - | - | 4 kV | 185 - Immediate | $755.70 | View Details |
|  | TPP 100-128A-J | AC/DC CONVERTER 28V 100W | - | - | 4 kV | 9 - Immediate | $741.21 | View Details |
| | TPP 100-136A-J | AC/DC CONVERTER 36V 100W | - | - | 4 kV | 6 - Immediate | $704.66 | View Details |
| | TPP 100-148A-J | AC/DC CONVERTER 48V 100W | - | - | 4 kV | 13 - Immediate | $741.21 | View Details |
TPP 150A-J Series 2" x 4” AC/DC Power Supplies
| Image | Manufacturer Part Number | Description | Voltage - Output 2 | Voltage - Output 6 | Voltage - Isolation | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
|  | TPP 150-112A-J | AC/DC CONVERTER 12V 150W | - | - | 4 kV | 2 - Immediate | $758.50 | View Details |
|  | TPP 150-115A-J | AC/DC CONVERTER 15V 150W | - | - | 4 kV | 26 - Immediate | $758.50 | View Details |
| | TPP 150-124A-J | AC/DC CONVERTER 24V 150W | - | - | 4 kV | 111 - Immediate | $758.50 | View Details |
| | TPP 150-128A-J | AC/DC CONVERTER 28V 150W | - | - | 4 kV | 1 - Immediate | $758.50 | View Details |
| | TPP 150-136A-J | AC/DC CONVERTER 36V 150W | - | - | 4 kV | 10 - Immediate | $742.69 | View Details |
|  | TPP 150-148A-J | AC/DC CONVERTER 48V 150W | - | - | 4 kV | 1 - Immediate | $742.69 | View Details |
Published: 2018-10-08
Hong Kong, China
