Clock and Timing Solutions

Texas Instruments solutions include a wide range of products – clock buffers, clock generators, clock jitter cleaners, and RF PLLs and synthesizers – for a broad range of applications including wired and optical communications, wireless communications, industrial, and automotive.

LMX2592/82 - High performance, wideband PLLatinum™ RF synthesizer with integrated VCO

The device accepts input frequencies up to 1.4 GHz, which combined with frequency dividers and programmable low-noise multiplier, allows flexible frequency planning.

Output frequency range from 20 MHz to 9,800 MHz
Industry leading phase noise performance
Input clock frequency up to 1,400 MHz
Phase detector frequency up to 200 MHz, and up to 400 MHz in integer-N mode
Supports fractional-N and integer-N modes
Dual differential outputs
Innovative solution to reduce spurs
< 25 µs fast calibration mode
Programmable phase adjustment
Programmable charge pump current
Programmable output power level
SPI or µWire (4-wire serial interface)
Single power supply operation: 3.3 V

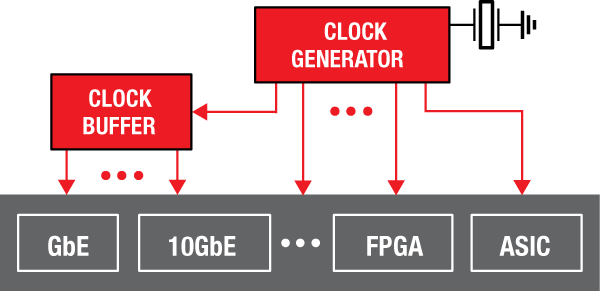

Wired Communications/Networking

Low-jitter clocks enhance system performance by ensuring excellent signal integrity at high data rates

With increasing data rates in networking and wired communication applications, clock jitter has become a major bottleneck for maintaining signal integrity. TI's ultra-low jitter clock jitter cleaners and clock generators improve system performance while reducing the bill-of-materials (BOM) by consolidating several oscillators. Equipped with a flexible architecture and advanced features such as holdover, TI's clock and timing ICs increase system performance, flexibility, and robustness.

Featured devices for wired and optical communications/storage/networking applications
Device	Description	EVM
Clock Oscillators
LMK61E2	Ultra-Low Jitter Fully Programmable Oscillator, Integrated EEPROM, +/-50ppm
Clock Buffers
CDCLVC1310	LVCMOS buffer
LMK00301	Configurable, differential buffer/level translator
LMK00334	4-output, PCIe 3.0-compliant HSCL fanout buffer
LMK00338	8-output, PCIe 3.0-compliant HSCL fanout buffer
Clock Generators
CDCM6208	2-input/8-output clock generator with integer and fractional dividers
LMK03806	1-input/14-output clock generator integer dividers
Clock Jitter Cleaners
LMK04906	2-PLL, 3-input/7-output, frequency holdover mode, programming delay
LMK04816	2-PLL, 3-input/13-output, frequency holdover mode, programming delay

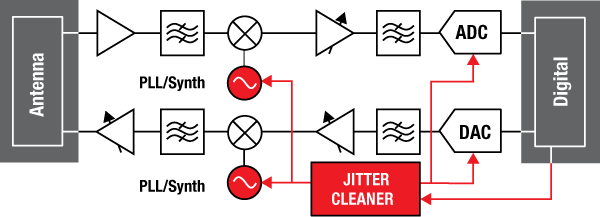

Wireless Communication

Low-noise clocks and synthesizers maximize data converter and overall signal chain performance

Clock jitter and local oscillator (LO) phase noise are key elements in the radio signal path and can directly impact the quality of the RF signal being received and transmitted. Likewise, in the baseband boards, clocks can impact the signal integrity of the high-speed link to and from radio. With industry-leading performance, TI's clock jitter cleaners, clock generators, clock buffers, and RF PLLs and synthesizers maximize the quality and robustness of wireless links.

Featured devices for wireless communications applications
Device	Description	EVM
Clock Oscillators
LMK61E2	Ultra-Low Jitter Fully Programmable Oscillator, Integrated EEPROM, +/-50ppm
Clock Buffers
CDCLVC1310	LVCMOS buffer
LMK00301	Configurable, differential buffer/level translator
Clock Generators
CDCM6208	2-input/8-output clock generator with integer and fractional dividers
CDCE62005	3-input/5-output clock generator with integrated dual VCOs
Clock Jitter Cleaners
LMK04803	2-PLL, 2-input/14-output, integrated 1.9 GHz VCO, frequency holdover mode, programming delay
LMK04805	2-PLL, 2-input/14-output, integrated 2.2 GHz VCO, frequency holdover mode, programming delay
LMK04806	2-PLL, 2-input/14-output, integrated 2.5 GHz VCO, frequency holdover mode, programming delay
LMK04808	2-PLL, 2-input/14-output, integrated 2.9 GHz VCO, frequency holdover mode, programming delay
LMK04826	2.5 GHz, 2-PLL, JESD204B-compliant, frequency holdover mode, programming delay
LMK04828	3 GHz, 2-PLL, JESD204B-compliant, frequency holdover mode, programming delay
RF/PLL's Synthesizers
LMX2571	Low Power Synthesizer with FSK Modulation
LMX2581	Wideband fractional-N synthesizer, integrated wideband VCOs
LMX2492	14 GHz fractional-N PLL with ramp/chirp generation
LMX2592/82	High performance, wideband PLLatinum™ RF synthesizer with integrated VCO

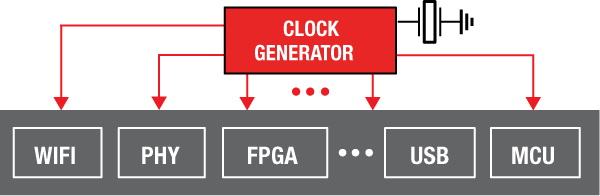

Industrial

Flexible clocks consolidate multiple crystals and oscillators to reduce BOM and enhance reliability

TI's clock and timing ICs can help improve the reliability of a system by consolidating multiple crystals and oscillators with a simple, low-power clocking solution. In industrial applications where performance is critical, such as test & measurement and medical, TI's low-jitter clocks and RF PLLs and synthesizers let designers push the limits of performance to deliver differentiated solutions.

Featured devices for industrial applications
Device	Description	EVM
Clock Oscillators
LMK61E2	Ultra-Low Jitter Fully Programmable Oscillator, Integrated EEPROM, +/-50ppm
Clock Buffers
CDCLVC1310	LVCMOS buffer
LMK00301	Configurable, differential buffer/level translator
Clock Generators
CDCE949	4-PLL, integrated VCXO, spread spectrum clocking, 1.8/2.5/3.3V outputs
CDCM6208	2-input/8-output clock generator with integer and fractional dividers
LMK03806	1-input/14-output clock generator with integer dividers
Clock Jitter Cleaners
LMK04826	2.5 GHz, 2-PLL, JESD204B-compliant, frequency holdover mode, programming delay
LMK04828	3 GHz, 2-PLL, JESD204B-compliant, frequency holdover mode, programming delay
LMK04906	2-PLL, 3-input/7-output, frequency holdover mode, programming delay
RF/PLL's Synthesizers
LMX2571	Low Power Synthesizer with FSK Modulation
LMX2581	Wideband fractional-N synthesizer, integrated wideband VCOs
LMX2492	14 GHz fractional-N PLL with ramp/chirp generation
LMX2531	High Performance Frequency Synthesizer System with Integrated VCO
LMX2592/82	High performance, wideband PLLatinum™ RF synthesizer with integrated VCO

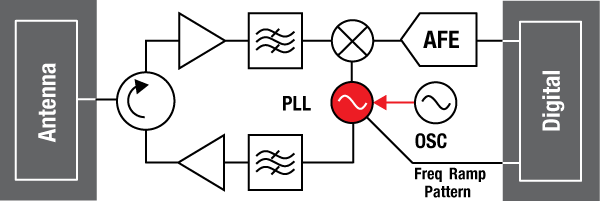

Automotive

Clocks and RF PLLs simplify the clock tree and improve range and accuracy of automotive radar

With a range of automotive-grade clocks and RF PLLs, TI offers solutions for both infotainment and advanced driver assist systems (ADAS). In ADAS applications, TI's high-performance PLLs can significantly enhance the range and accuracy of radar systems while simplifying the design by integrating critical functions such as ramp generation. In infotainment applications, TI's clock generators and buffers help to consolidate multiple crystals and oscillators with a simple low-power clocking solution.

Featured devices for automotive applications
Device	Description	EVM
Clock Buffers
CDCE949-Q1	4-PLL, integrated VCXO, spread spectrum clocking, 1.8/2.5/3.3V outputs
CDCE937-Q1	3-PLL, integrated VCXO, spread spectrum clocking, 1.8/2.5/3.3V outputs
Clock Generators
CDCM6208	2-input/8-output clock generator with integer and fractional dividers
RF/PLL Synthesizers
LMX2492-Q1	14 GHz fractional-N PLL with ramp/chirp generation
LMX2485Q-Q1	Wideband, dual fractional-N PLL
