Souriau Push-Pull Connectors

Souriau-Sunbank by Eaton provides a portfolio of push-pull connectors suitable for high reliability and high quality applications where a simple yet fast method to connect/disconnect is required. Ideal for use in areas with limited space where endurance is the priority, our push-pull connectors can be used in medical applications (imaging, cardio management, electro surgical, lab analysis, and processing), instrumentation (industrial controllers, electronic test equipment, hand-held analyzers, and security/surveillance), military and radio/communication applications (police radar, audio/video communications, radio transmission).

Plastic JMX IP50 IP68 (Waterproof)
Metal JBX IP40 IP68 (Waterproof)

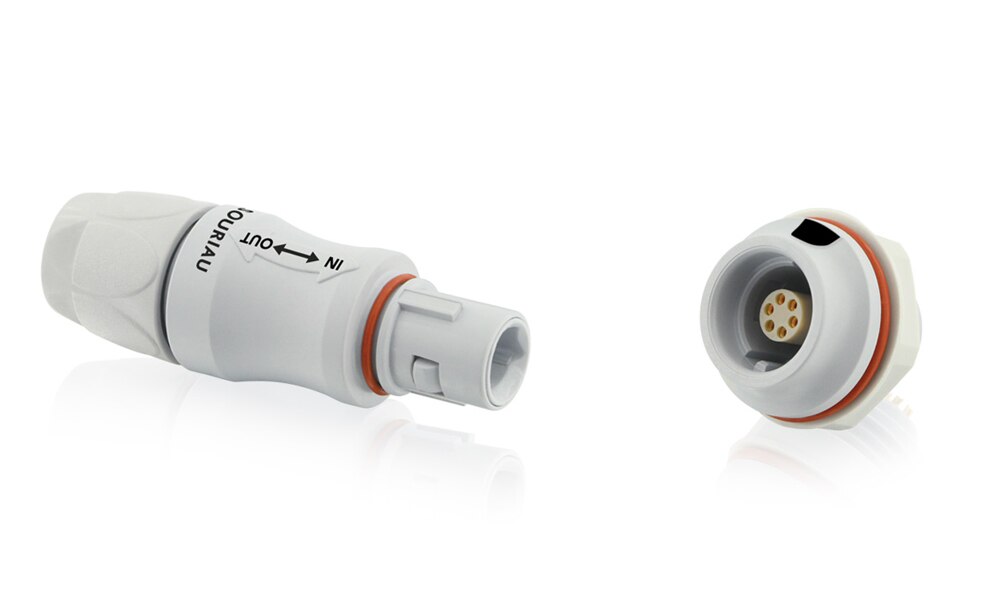

Souriau's JMX Series Plastic Push-Pull Connectors for Medical and Industrial Applications

Souriau-Sunbank by Eaton’s JMX series push-pull connectors guarantee reliable and secure connections

The waterproof and extreme high temperature resistance characteristics of the JMX series make it ideal for Medical, Instrumentation and Measurement applications. In addition, the plastic Push-Pull connectors can also be used in a diversity of other Industrial applications requiring a lightweight, yet durable harsh environment interconnect solution.

Souriau-Sunbank by Eaton’s JMX plastic Push-Pull connector series guarantees a reliable and secure connection with only two fingers. Connectors are available with six different keying options and nine color identification codes to avoid situations of incorrect and accidental mismating.

Capable of over 2,000 mating cycles, this series is also able to withstand steam autoclave sterilization per IEC 60601-1 (up to 200 cycles). It will also protect your equipment from fluid ingress due to its IP68 attributes in mated and unmated conditions.

The JMX Plastic Push-Pull is aesthetically and visually appealing to complement and blend with medical equipment designs. The curves of the coupling ring provide exceptional tactile comfort and an easy to handle grip design so that fingers will fit instinctively.

Features & Benefits

Easy and Safe: Reliable Push-Pull locking mechanism, only requires two fingers to mate/unmate securely with an audible and tactile indicator, capable of mating over 2,000 times, and multiple keying and color identifications are available to avoid accidental system mating errors.
Protect Equipment: Waterproof, rated IP68 in mated and/or unmated condition, the JMX Series will protect your equipment from fluid ingress and liquid projection.
Sterilization: Connectors adapted for the medical market to withstand autoclave steam sterilization, with pre-vacuum and gravity displacement process, per IEC 60601. Connectors are rated for 200 autoclave cycles at 134°C (273°F).
Aesthetic Equipment: Connectors have been designed to be aesthetically pleasing, with an attractive, appealing, and ergonomic connector to fit with all medical equipment designs.
Make Life Easier: UL/IEC Compliant, in accordance with UL 1977 and IEC 61984, these compliances will help make your equipment qualification easier.

Technical Data

Crimp or solder termination
Operating temperature:
- Receptacle: -20°C +100°C
- Plug: -40°C +125°C
- Short term (autoclaving): Resistance up to +134°C
Will withstand Steam autoclave sterilization (Pre-vacuum & gravity displacement process): 200 cycles
IP50 / IP68 (Mated and unmated conditions)
2,000 mating cycles
UL94 V-0
RoHS and REACH compliant

Applications

Physio & Medical Therapy
Patient Monitoring
Diagnostic & Imaging
All other diverse Industrial applications
Surgical & Dental Systems
Instrumentation
Laboratory Equipment
Lighting

Data Links

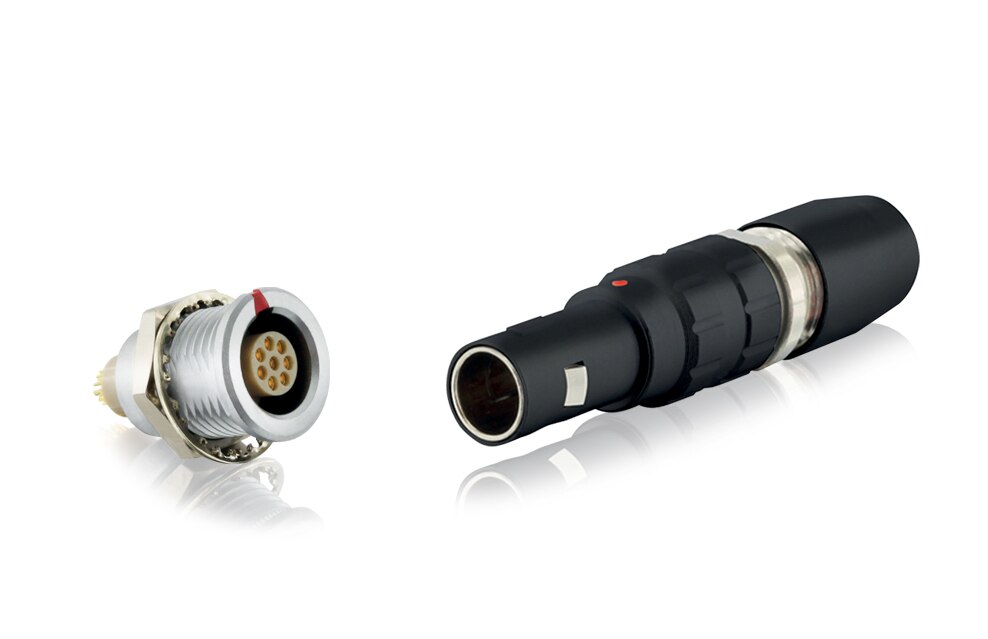

Souriau's JBX Series Metal Push-Pull Connectors

Souriau’s JBX series is a metal push-pull connector available in IP40 and IP68 sealing that is suited for indoor and outdoor applications such as medical, building automation, instrumentation, measurement, off-road, mining or telecom.

JBX connectors guarantee a reliable and secure connection by using a push-pull locking mechanism that requires only two fingers to mate and unmate the connector. An audible and visual indicator will ensure a reliable locking, capable to resist to more than 5,000 cycles.

The 360° EMI shielding ensures a proper transmission and signal integrity which makes it optimal for high resolution imaging applications. The use of 0.5 mm contacts and miniature housing make JBX connectors suitable for tight application.

Mixed layouts combine power and signal contacts in a unique interconnection solution to reduce system complexity and minimize component /installation cost.

Features & Benefits

Waterproof: IP68 in Mated and Unmated Conditions, ideal for outdoor applications with temporary or continuous water immersion and dust protection.
Signal Integrity: 360° EMI Shielded, less than 5mΩ: Qualified and Compatible to be used in electromagnetic radiation areas and ensures proper signal integrity and transmission.
Space Savings: High Density Layouts, ideal for compact devices due to small footprint. The use of 0.5mm contacts along with miniature housing makes it suitable for tight applications.
Reliable Mating: Push Pull Locking Mechanism, only requires two fingers to mate/unmate securely with an audible, tactile and visual indicator, capable of mating over 5,000 times.
Cost Savings: Mixed Power & Signal Layouts, power supply and transmission can be combined in a unique interconnection solution to reduce system complexity and minimize component/installation costs.
