1 mm Pitch Micro Mate™ Discrete Wire System

Samtec's space-saving discrete wire system supports cable-to-board, cable-to-cable, and cable-to-panel applications

Image of Samtec's 1 mm Pitch Micro Mate Discrete Wire SystemSamtec’s 1 mm Micro Mate discrete wire system offers incredible space-savings and design flexibility. Crimp-style dual-leaf contacts provide a reliable wire-to-board connection in a slim, low-profile design for cable-to-board, cable-to-cable and cable-to-panel applications.

This discrete wire system is available in single-row (2-20 contacts) and double-row (4-40 contacts) configurations and vertical and right-angle terminals. They are available as components or complete assemblies.

The components are T1M (board assembly), ISS1/ISD1 (single- and double-row socket housings), IST1/IDT1 (Single and double row terminal housings), ISP1/IDP1 (single- and double-row panel-mount housings), CC09R/CC09M (crimp contacts), and TC37R/TC37M (crimp terminals). Hand tools and bench top applicators are also available to help assemble components into complete cable assemblies.

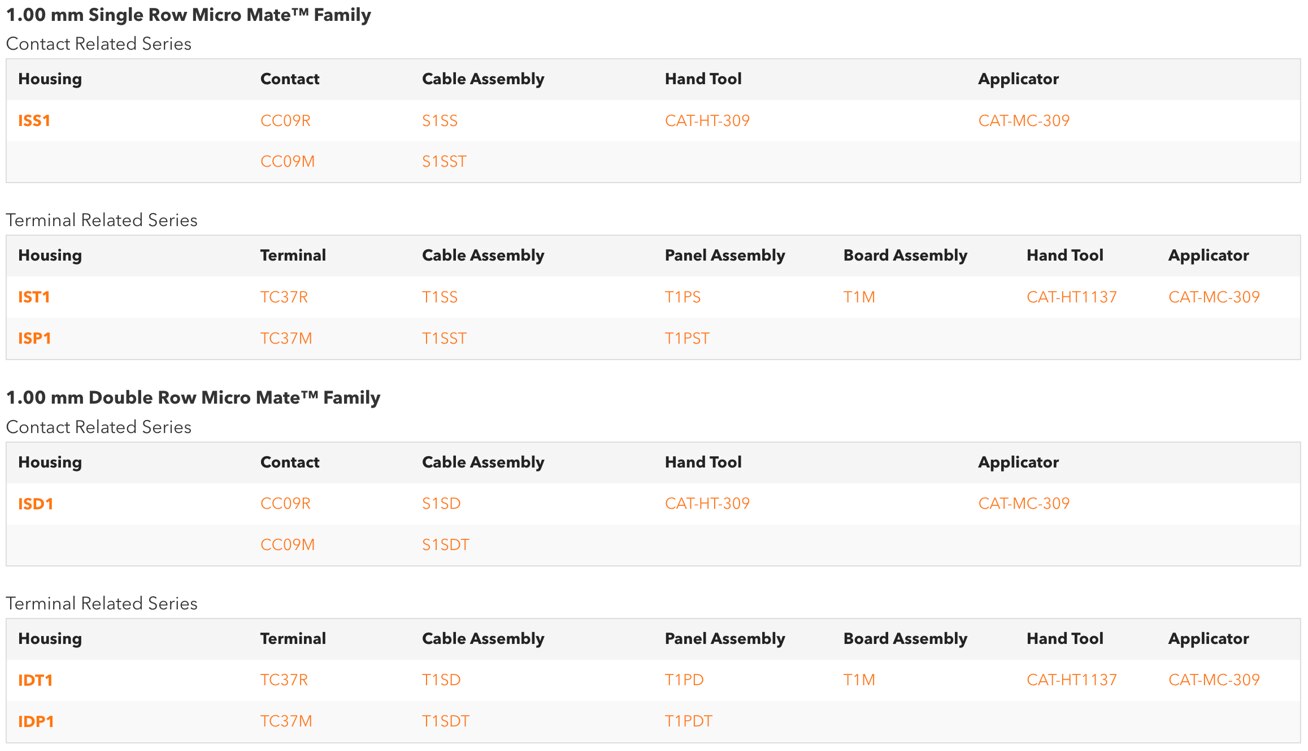

Product Selection Guide

Image of Samtec's 1 mm Pitch Micro Mate Discrete Wire System Component Chart

Resources
Features
  • Available as components with tooling or complete cable assemblies
  • Choice of socket and terminal assemblies
  • Cable-to-board, cable-to-cable, and cable-to-panel applications
  • Crimp-style dual-leaf contact system provides a reliable connection
  • Mating terminal strip in vertical or right-angle
  • Low-profile design down to 3.2 mm
  • Single- or double-row
  • Up to 40 total pins
  • 28 AWG and 30 AWG cable options in PVC or Teflon®
  • Rugged positive latching for increased retention
Applications
  • 5G networking
  • Industrial
  • Military/aerospace
  • Test connectivity
  • Medical
  • Broadcast video
  • Automotive
  • AI/machine learning
  • Instrumentation

Cable Assemblies

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CBL ASSY 1MM 20POS M TO FT1SD-10-28-GF-06.0-T3CBL ASSY 1MM 20POS M TO F2 - Immediate
13 - Marketplace		$83.72View Details
CBL ASSY 1MM 20POS M TO FT1SDT-10-28-GF-06.0-T3CBL ASSY 1MM 20POS M TO F2 - Immediate
48 - Factory Stock		$101.67View Details
CBL 1MM 3POS PNL MNT M TO FT1PST-03-28-GF-02.0-A-T3CBL 1MM 3POS PNL MNT M TO F0 - Immediate$29.88View Details
CBL 1MM 5POS PNL MNT M TO FT1PST-05-28-GF-06.0-A-T3CBL 1MM 5POS PNL MNT M TO F1 - Immediate
1 - Factory Stock		$33.75View Details
CBL 1MM 3POS PNL MNT M TO FT1PST-03-28-GF-06.0-A-T3CBL 1MM 3POS PNL MNT M TO F6 - Immediate$33.83View Details

Board Assembly

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
T1M 1MM TERMINAL STRIPT1M-03-GF-DV-KT1M 1MM TERMINAL STRIP438 - Immediate$33.09View Details
1.00 MM DISCRETE WIRE TERMINAL ST1M-20-F-SH-L1.00 MM DISCRETE WIRE TERMINAL S226 - Immediate$32.02View Details
CONN HEADER SMD R/A 10POS 1MMT1M-10-F-SH-L-KCONN HEADER SMD R/A 10POS 1MM968 - Immediate
4581 - Factory Stock		$29.64View Details
CONN HEADER SMD 3POS 1MMT1M-03-GF-S-V-K-TRCONN HEADER SMD 3POS 1MM950 - Immediate$27.82View Details
CONN HEADER SMD R/A 15POS 1MMT1M-15-GF-S-RA-TRCONN HEADER SMD R/A 15POS 1MM752 - Immediate$23.71View Details

Housings

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN PLUG HSG 3POS 1.00MMISP1-03-ACONN PLUG HSG 3POS 1.00MM79 - Immediate
193 - Factory Stock		$3.13View Details
CONN PLUG HSG 10POS 1.00MMIDP1-05-ACONN PLUG HSG 10POS 1.00MM6 - Immediate
309 - Factory Stock		$4.77View Details
CONN HSG 10POS 1.00MMISS1-10-LCONN HSG 10POS 1.00MM1215 - Immediate
2541 - Factory Stock		$6.42View Details
CONN PLUG HSG 4POS 1.00MMISP1-04-ACONN PLUG HSG 4POS 1.00MM0 - Immediate
224 - Factory Stock		$5.68View Details
CONN HSG 5POS 1.00MMISS1-05-LCONN HSG 5POS 1.00MM829 - Immediate
6047 - Factory Stock		$6.42View Details

Contacts

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN SKT CRIMP 28-30AWG GOLDCC09M-01-GFCONN SKT CRIMP 28-30AWG GOLD12304 - Immediate$1.07View Details
CONN SKT FREE HANGING CRIMP GOLDCC09R-01-GFCONN SKT FREE HANGING CRIMP GOLD51484 - Immediate$1.07View Details
CONN PIN 28-30AWG CRIMP GOLDTC37R-01-GFCONN PIN 28-30AWG CRIMP GOLD25000 - Immediate$0.75View Details
CONN PIN 28-30AWG CRIMP GOLDTC37M-01-GFCONN PIN 28-30AWG CRIMP GOLD6127 - Immediate$1.98View Details
CONN SOCKET CRIMP TINCC09R-01-TCONN SOCKET CRIMP TIN0 - Immediate$0.21View Details

Tools

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CAT TOOLINGCAT-HT-309-2830-12CAT TOOLING19 - Immediate
11 - Factory Stock		$6,281.26View Details
Published: 2022-08-26
