ROHM Opto Solutions
Whether visible or Infrared, we have an optical solution to brighten up your latest innovation
Whether you are looking for a visible or optical solution, ROHM has something for your latest innovation. Their Opto lineup includes LEDs, Optical Sensors, Laser Diodes and even the Drivers that can compliment them. They are all offered in a variety of packages including through hole products all the way down to really compact 1.0 x 0.6 mm picoLEDs. Whether you are working on a Consumer design, an Industrial application or even need a full AECQ Qualified solution for your latest Automotive innovation there are hundreds of solutions available today.
Applications: Interior Automotive, Exterior Automotive, Drones, LED Displays, Backlighting, LED Lighting, Bar Code Scanners, LiDAR, Measurement Equipment, Remote Controls, Consumer Electronics
Features:
- LEDs: RGBs, White LEDs, Side Views, Compact Packages, AEC-Q101
- Optical Sensors: Proximity Sensors, PhotoInterruptors, PhotoTransistors, IR LEDs, PhotoSensors, Ambient Light Sensors, Surface Mount and Through Hole Options
- Laser Diodes: Visible and Infrared, MultiBeam, High Power, VCSELs
Resources
- LEDs
- Optical Sensors
- Laser Diodes
- LED Drivers
- Diagrams
ROHM's lineup of LEDs delivers a wide range of features, including size, color, brightness level, packaging, and wide or narrow view types. Single, Dual and tri-color (RGB) chip LEDs are offered in compact form factors ideal for small consumer devices or ruggedized for Automotive applications.
Features/Benefits:
- Single color, Dual, or RGB options
- Broad spectrum of colors available
- Low current options (down to 1 mA)
- Up to 35 K mcd
- Packaging available in mini mold, right angle, reverse mount, and with a lens or reflector
LED Indication - Discrete
| Part Number | Description | View Details |
|---|---|---|
| SCMP13WBC8W1 | White LED Indication - Discrete 2.9V 2-SMD, No Lead | View Details |
| SMLP13EC8TT86 | Green 527nm LED Indication - Discrete 3V 2-SMD, No Lead | View Details |
| SML-D13MWT86A | Yellow-Green 571nm LED Indication - Discrete 2.1V 0603 (1608 Metric) | View Details |
| SMLP13BC8TT86 | Blue 470nm LED Indication - Discrete 2.9V 2-SMD, No Lead | View Details |
| SMLD12WBN1W1 | White LED Indication - Discrete 2.9V 0603 (1608 Metric) | View Details |
| SML-D13DWT86A | Orange 605nm LED Indication - Discrete 2V 0603 (1608 Metric) | View Details |
| SML-D13VWT86A | Red 630nm LED Indication - Discrete 2V 0603 (1608 Metric) | View Details |
LED Lighting - White
| Part Number | Description | View Details |
|---|---|---|
| SMLK18WBJDW1 | LED Lighting SML White, Cool 5000K 3.9V 90mA 2-SMD, Flat Lead | View Details |
| SMLW36WBFCW1 | LED Lighting SMLV36 White, Cool 8000K 3.4V 90mA 6-SMD, Gull Wing | View Details |
| SMLV36WBFCW1 | LED Lighting SMLV36 White, Cool 8000K 3.4V 90mA 1211 (3228 Metric) | View Details |
| SMLK28WBJCW1 | LED Lighting SML White, Cool 8000K 3.9V 90mA 4-SMD, Flat Leads | View Details |
| SMLK18WBJBW1 | LED Lighting SML White, Warm 3000K 3.9V 90mA 2-SMD, Flat Lead | View Details |
| SMLK18WBJCW | LED Lighting SML White, Cool 8000K 3.9V 90mA 2-SMD, Flat Lead | View Details |
| SMLV36WBFBW1 | LED SMLV36 WARM WHITE 3000K 1411 | View Details |
Display Modules - LED Character and Numeric
| Part Number | Description | View Details |
|---|---|---|
| LBP-602VA2 | Red 7-Segment 2 Character Common Anode 1.9V 10mA | View Details |
| LA-601AB | Red 7-Segment 1 Character Common Anode 2.05V 10mA | View Details |
| LB-602VK2 | Red 7-Segment 2 Character Common Cathode 2V 10mA | View Details |
| LA-101MA | Green 7-Segment 1 Character Common Anode 2.1V 10mA | View Details |
| LB-602VA2 | Red 7-Segment 2 Character Common Anode 2V 10mA | View Details |
| LBP-602MK2 | Green 7-Segment 2 Character Common Cathode 1.9V 20mA | View Details |
| LB-402VN | Red 7-Segment 2 Character Common Cathode 2V 10mA | View Details |
ROHM's optical sensors include high sensitivity, high reliability, IR emitting diodes, and photointerruptors
Features/Benefits:
- High output, compact packages
- Long Life
- High Reliability
- Through Hole or Surface Mount
- I2C or Current Outputs
- Analog or Digital
Infrared, UV, Visible Emitters
| Part Number | Description | View Details |
|---|---|---|
| SIM-20ST | EMITTER IR 950NM 50MA RADIAL | View Details |
| SIR-56ST3FF | EMITTER IR 950NM 100MA T 1 3/4 | View Details |
| SIR-34ST3F | EMITTER IR 950NM 100MA T-1 | View Details |
| SIR-568ST3F | EMITTER IR 850NM 100MA T 1 3/4 | View Details |
| SCM-013RTT86 | EMITTER IR 850NM 30MA SMD | View Details |
| SIR-563ST3FN | EMITTER IR 940NM 100MA T 1 3/4 | View Details |
| SIM-030ST | EMITTER IR 870NM 100MA SMD | View Details |
Optical Sensors - Ambient Light, IR, UV Sensors
| Part Number | Description | View Details |
|---|---|---|
| BH1620FVC-TR | SENSOR OPT 560NM AMBIENT 5WSOF | View Details |
| BH1721FVC-TR | SENSOR OPT 560NM AMBIENT 5WSOF | View Details |
| BH1715FVC-TR | SENSOR OPT 560NM AMBIENT 6WSOF | View Details |
| BH1600FVC-TR | SENSOR OPT 560NM AMBIENT 6WSOF | View Details |
| BH1680FVC-TR | SENSOR OPT 530NM AMBIENT 5WSOF | View Details |
| BH1726NUC-E2 | SENSOR OPT AMBIENT WSON008X2120 | View Details |
| BH1772GLC-E2 | SENSOR OPT 550NM AMBIENT 10VFLGA | View Details |
Optical Sensors - Photointerrupters
| Part Number | Description | View Details |
|---|---|---|
| RPI-221 | SENSOR OPT SLOT PHOTOTRAN PCB MT | View Details |
| RPI-352C40N | SENSOR OPT SLOT MODULE ULTRAMINI | View Details |
| RPI-0128 | SENSOR OPT SLOT PHOTOTRANS MODUL | View Details |
| RPI-125 | SENSOR OPT SLOT PHOTOTRANS MODUL | View Details |
| RPI-352 | SENSOR OPT SLOT PHOTOTRAN PCB MT | View Details |
| RPI-574 | SENSOR OPT SLOT PHOTOTRAN PCB MT | View Details |
| RPI-0226 | SENSOR OPT SLOT TRANSISTOR MODULE | View Details |
Optical Sensors - Phototransistors
| Part Number | Description | View Details |
|---|---|---|
| RPT-37PB3FN | SENSOR PHOTO 800NM TOP VIEW T1 | View Details |
| SML-810TBT86 | SENSOR PHOTO 800NM TOP VIEW 2SMD | View Details |
| RPT-34PB3F | SENSOR PHOTO 800NM TOP VIEW RAD | View Details |
| SCM-014TBT86 | SENSOR PHOTO 800NM TOP VIEW 2SMD | View Details |
| RPT-38PT3F | SENSOR PHOTO 800NM TOP VIEW RAD | View Details |
| RPT-38PB3F | SENSOR PHOTO 800NM TOP VIEW T1 | View Details |
ROHM makes infrared and/or red laser diodes for optical discs, laser printers, bar code readers, and more. New applications include light sources for triangulation, Time of Flight, and LiDAR, with the development of laser diodes for sensing applications expected in the near future.
Features/Benefits:
- Infrared in 790 – 852nm or Red in 635 – 659nm
- Single or multiple outputs
Laser Diodes, Modules
| Part Number | Description | View Details |
|---|---|---|
| RLD65MZT7-00A | Laser Diode 659nm 7mW 2.6V 70mA Radial, Can - 3 Lead | View Details |
| RLD78NZM5-00A | Laser Diode 793nm 10mW 2.3V 40mA Radial, Can - 3 Lead | View Details |
| RLD78MZA6-00A | Laser Diode 790nm 4.5mW 2.3V 60mA Radial, Can - 3 Lead | View Details |
| RLD78MZM7-00A | Laser Diode 792nm 20mW 2.2V 63mA Radial, Can - 3 Lead | View Details |
| RLD63NPC6-00A | Laser Diode 638nm 12mW 2.7V 55mA Radial, Can - 3 Lead | View Details |
| RLD65NZX2-00A | Laser Diode 658nm 7mW 2.7V 45mA Radial, Can - 3 Lead | View Details |
| RLD65PZX2-01A | Laser Diode 658nm 7mW 2.7V 45mA Radial, Can - 3 Lead | View Details |
ROHM offers a broad lineup of LED driver ICs including Buck, Boost, or Charge Pumps. LED Drivers are available for Consumer, Industrial, or interior or exterior Automotive applications.
Features/Benefits:
- Buck or Boost options
- Serial in/parallel out or constant current
- Single or up to 24 outputs
- I2C or SPI bus
- AEC-Q100 Automotive options
PMIC - LED Drivers
| Part Number | Description | View Details |
|---|---|---|
| BD81A74MUV-ME2 | LED Driver IC 4 Output DC DC Controller Step-Down (Buck), Step-Up (Boost) PWM Dimming 120mA VQFN28SV5050 | View Details |
| BD60A60NUX-TR | LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 30mA VSON008X2030 | View Details |
| BD6583MUV-AE2 | LED Driver IC 6 Output DC DC Controller Step-Up (Boost) Analog, PWM Dimming 25mA VQFN024V4040 | View Details |
| BD521GOFJ-E2 | LED Driver IC 1 Output AC DC Offline Switcher Dimming 400µA 8-SOP-J | View Details |
| BD2606MVV-E2 | LED Driver IC 6 Output DC DC Regulator Switched Capacitor (Charge Pump) I²C Dimming 20mA SQFN016V4040 | View Details |
| BD81A24EFV-ME2 | LED Driver IC 4 Output DC DC Controller Step-Down (Buck), Step-Up (Boost) PWM Dimming 120mA 28-HTSSOP-B | View Details |
| BD6071HFN-TR | LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 35mA 8-HSON | View Details |

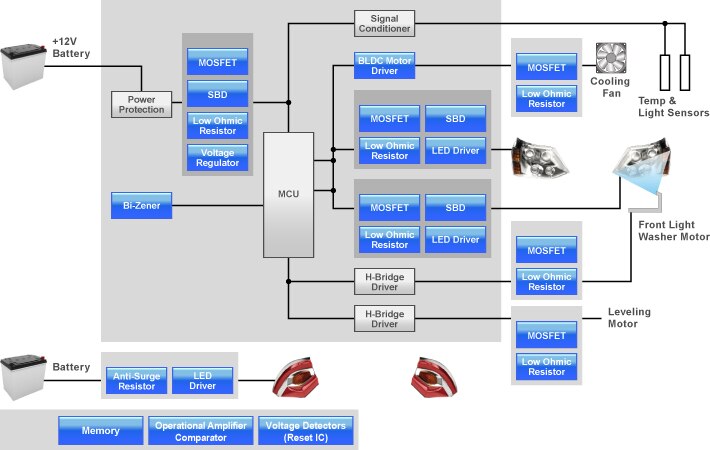

Automotive Lamp Module

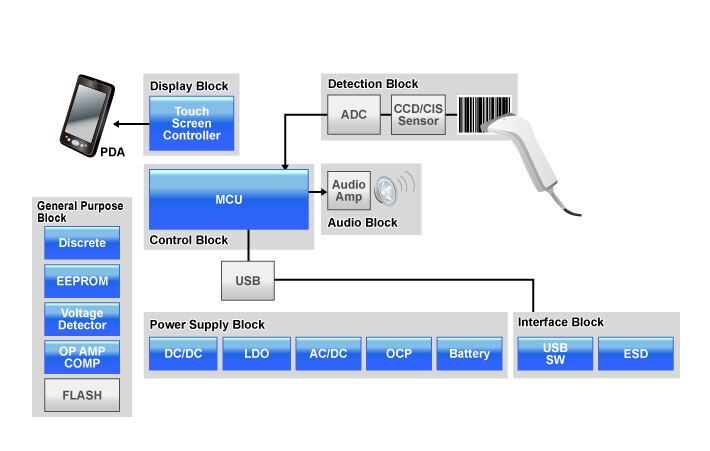

Bar Code Scanner

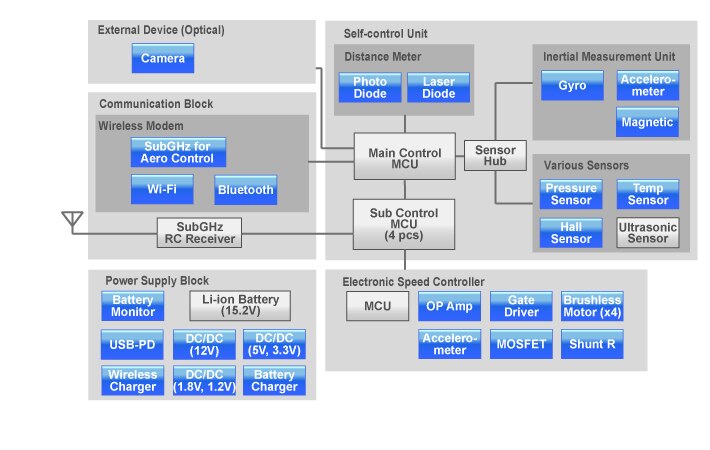

Drone

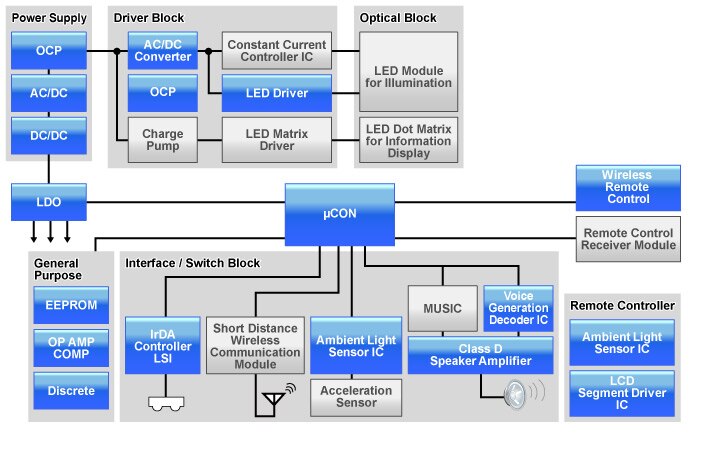

LED Lighting
