            RT5713/RT5714 360 nA Low Quiescent Current, 1 A HCOT nanoPower Buck Converters
                    Richtek's RT5713/RT5714 HCOT nanoPower buck converter family with internal compensation provide 2-level output voltage selections


Richtek's RT5713 and RT5714 are high-efficiency synchronous step-down converters featuring typical 360 nA quiescent current. They provide high efficiency at light loads down to 10 mA. Their input voltage range is from 2.2 V to 5.5 V. The RT5713 and RT5714 provide 2-level output voltages that can be programmed via the voltage select pin VSEL while delivering output current up to 0.5 A/1 A.

The hysteretic constant-on-time (HCOT) operation with internal compensation optimizes the transient response over a wide range of loads and output capacitors.

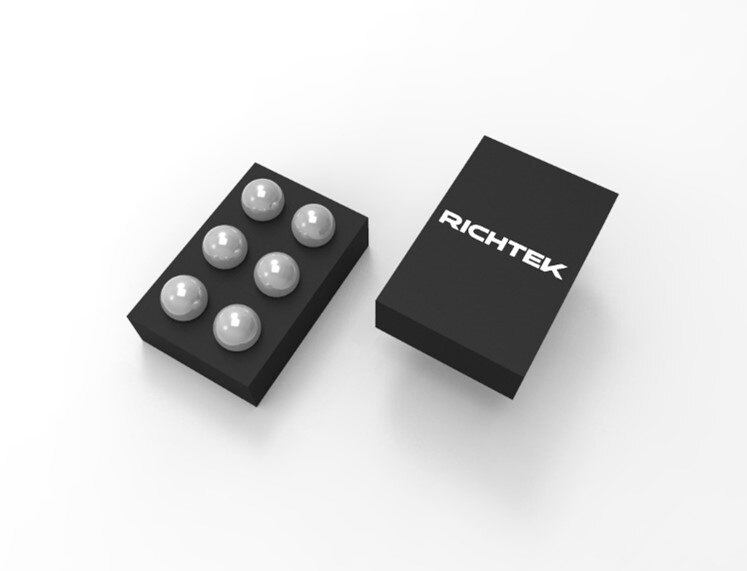

The RT5713 and RT5714 are available in WL-CSP-6B 1.415 x 0.885 (BSC) and WDFN-6L 2 x 2 packages.

Features

Input voltage range: 2.2 V to 5.5 V
Support fixed output voltage 0.525 V to 4 V
2-level output voltage selection by V_SEL pin
Typ. 360 nA quiescent current
PSM operation
Internal compensation
Output voltage discharge
Overcurrent protection (OCP)

Overtemperature protection (OTP)
Output current

RT5713 400 mA, peak to 0.5 A
RT5714 600 mA, peak to 1 A

Undervoltage lockout (UVLO) protection
Online V_OUT dynamically voltage-scaling
Tiny, 6-pin, 0.35 mm pitch WL-CSP package
Supports <7 mm² solution size

Applications

Handheld devices
Portable information
Battery powered equipment

Wearable devices
Internet of things
Smartwatches

RT5713/RT5714 nanoPower Buck Converters

	Image	Manufacturer Part Number	Description	Available Quantity	Price	View Details
		RT5713-K1WSC(2)	IC REG BUCK 0.8V/1.8V 6WLCSP	2270 - Immediate	$6.83	View Details
		RT5714-K1WSC(2)	IC REG BUCK 0.8V/1.8V 1A 6WLCSP	3000 - Immediate	$14.57	View Details
