            RZ/G3E General-Purpose MPU
                    Renesas MPUs provide the combination of two different cores to enable users to build products with both high performance and low power consumption


Image of Renesas RZ/G3E General-Purpose MPU The Renesas RZ/G3E is a compact powerhouse, combining a quad-core (or dual) Arm® Cortex®-A55 at up to 1.8 GHz, a Cortex-M33 for low-power tasks, and an Arm Ethos-U55 NPU that is perfect for edge AI and HMI duties. It’s designed to handle complex UI workloads, video codecs, and responsive controls, while smartly conserving energy.

Features

CPU and AI combo: Cortex-A55 (quad or dual), Cortex-M33, and Ethos-U55 NPU, offering both multitasking and low-power processing
Graphics and video: Arm Mali-G52 + H.264/H.265 codec for immersive visuals
Memory support: on-chip 512 KB shared SRAM (with ECC) + LPDDR4/LPDDR4X interface (32-bit, single channel at 3,200 MT/s)
Display and camera I/O: MIPI CSI-2 capture, dual (MIPI-DSI/LVDS/parallel) display options

Communication interfaces: Ethernet (2 x GbE), PCIe Gen3 (1 or 2 lanes), USB 3.2 Gen2 host, USB 2.0 (2 ch), CAN FD, SD/eMMC, xSPI, SCI/SPI/I²C, and I3C
Reliable packaging: FCBGA in a compact 15 mm x 15 mm or 21 mm x 21 mm footprint
Evaluation board ready: SMARC module support for development with carrier boards and accessories

Applications

Rich HMI panels (e.g., industrial touchscreens and infotainment displays)
Edge AI devices like visual analytics and face/object detection
Surveillance or smart camera systems (video stream and real-time processing)
Compact gateways combining display, control, and networked interfaces
Embedded systems needing efficient dual-core processing for heavy lifting and ultra-low power standby

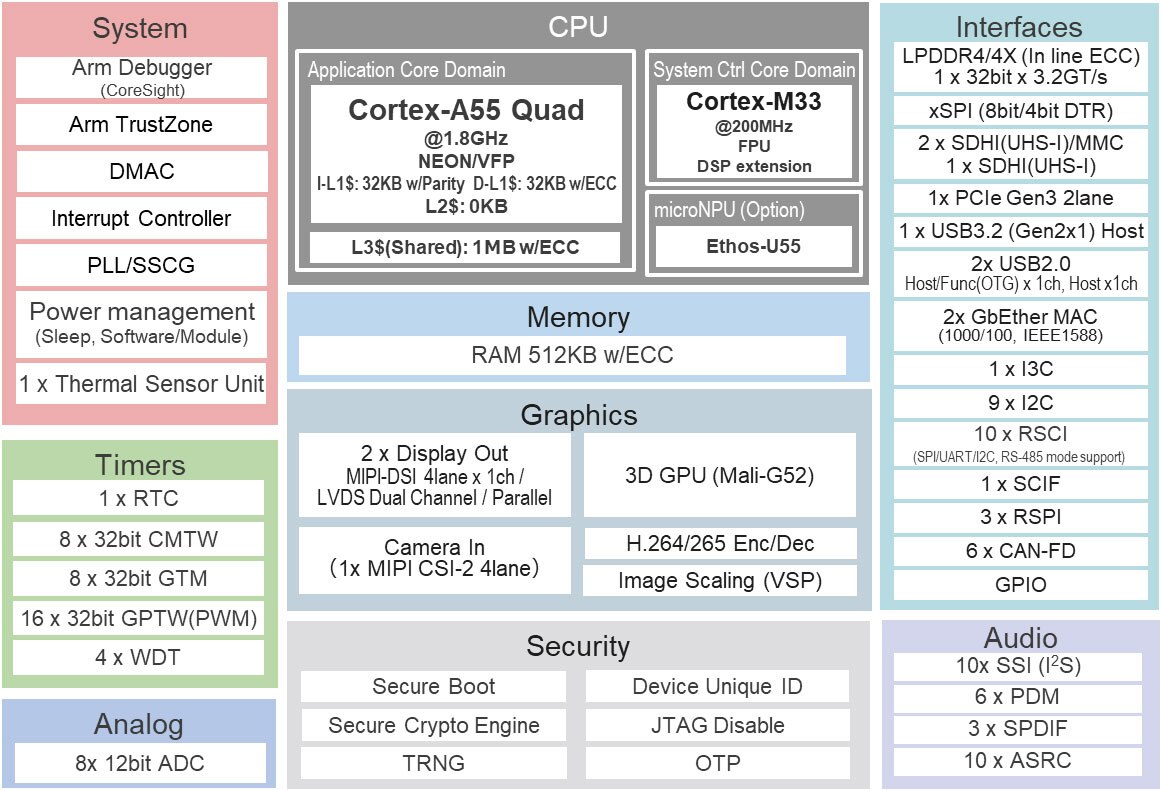

Block Diagram (click to enlarge)
