DIN-Rail Power Supplies

PULS power supplies help you to minimize your system costs and increase your system reliability.

With the customer benefits in mind, PULS concentrates entirely on the design and manufacture of DIN-rail power supplies. This focus enables PULS to set standards in terms of efficiency, compact size, service life, and reliability.

The product families DIMENSION, PIANO and MiniLine are based on innovative power technology and suitable for even the most demanding applications.

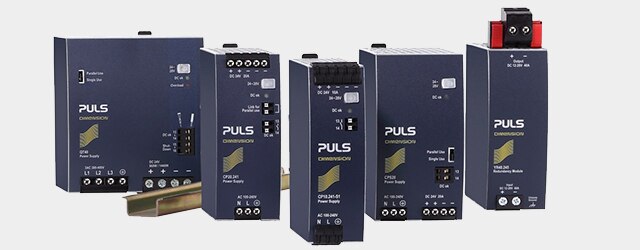

DIMENSION – Highest Performance

The DIMENSION family includes a wide range of full featured and powerful DIN rail power supplies. The units are available with a variety of input & output voltages and numerous agency approvals. The product family offers a suitable power supply solution for almost any application.

Benefits:

Wide product variety: 12-48 V power supplies, 80 to 960 W, 1- / 2- or 3-phase input
Reduce heat generation and save energy costs thanks to peak efficiencies of 95.5% (CP10.481)
Heavy loads are easily started due to high power reserves
Numerous agency approvals (IECEx, ATEX, Class I Div2, UL, GL) for global markets and special applications
Wide operating temperature range: -25°C to +70°C
Suitable supplementary units available: DC/DC converter, DC-UPS, redundancy and protection modules

Q Series – Full Featured

The Q Series is known for impressive technical values and many user friendly features.

The power supplies are equipped with large power reserves, near zero input inrush current, high immunity to transients, low electromagnetic emission and a comprehensive international approval package.

Part Number	Description	Phase	Voltage	Current (A)
QS3.241	Power Supply, 80W, 100-240VAC 1PH, 24-28VDC, 3.4-3A	1	24-28 VDC	3.4-3 A
QS5.241	Power Supply, 120W, 100-240VAC 1PH, 24-28VDC, 5-4.5A	1	24-28 VDC	5-4.5 A
QS10.121	Power Supply, 180W, 100-240VAC 1PH, 12-15VDC, 15-12A	1	12-15 VDC	15-12 A
QS10.241	Power Supply, 240W, 100-240VAC 1PH, 24-28VDC, 10-9A	1	24-28 VDC	10-9 A
QS10.481	Power Supply, 240W, 100-240VAC 1PH, 48-56VDC, 5-4.3A	1	48-56 VDC	5-4.3 A
QS20.241	Power Supply, 480W, 100-240VAC 1PH, 24-28VDC, 20-17.5A	1	24-28 VDC	20-17.5 A
QS20.481	Power Supply, 480W, 100-240VAC 1PH, 48-55VDC, 10-8.7A	1	48-55 VDC	10-8.7 A
QT20.241	Power Supply, 480W, 380-480VAC 3PH, 24-28VDC, 20-17.5A	3	24-28 VDC	20-17.5 A
QS40.241	Power Supply, 960W, 100-240VAC 1PH, 24-28VDC, 40-34.3A	1	24-28 VDC	40-34.3 A
QS40.481	Power Supply, 960W, 100-240VAC 1PH, 48-54VDC, 20-17.8A	1	48-54 VDC	20-17.8 A
QT40.241	Power Supply, 960W, 380-480VAC 3PH, 24-28VDC, 40-34.3A	3	24-28 VDC	40-34.3 A

C Series – High Power Density

The C Series power supplies combine an outstanding performance and a very compact housing.

The high efficiency, advanced inrush current limitation, active PFC, and the wide temperature range are remarkable.

Part Number	Description	Phase	Voltage	Current (A)
CS3.241	Power Supply, 80W, 100-240VAC 1PH, 24-28VDC, 3.3-2.7A	1	24-28 VDC	3.3-2.7 A
CS5.241	Power Supply, 120W, 100-120 / 200-240VAC 1PH, 24-28VDC, 5-4.3A	1	24-28 VDC	5-4.3 A
CS10.241	Power Supply, 240W, 100-120 / 200-240VAC 1PH, 24-28VDC, 10-8.6A	1	24-28 VDC	10-8.6 A
CP10.121	Power Supply, 240W, 120-240VAC 1PH,12-15VDC, 16-12.8A	1	12-15 VDC	16-12.8 A
CP10.241	Power Supply, 240W, 120-240VAC 1PH, 24-28VDC, 10-8.6A	1	24-28 VDC	10-8.6 A
CP10.481	Power Supply, 259W, 120-240VAC 1PH, 48-56VDC, 5.4-4.6A	1	48-56 VDC	5.4-4.6 A
CT10.241	Power Supply, 240W, 380-480VAC 3PH, 24-28VDC, 10-9A	3	24-28 VDC	10-9 A
CPS20.121	Power Supply, 480W, 100-240VAC 1PH, 12-15VDC, 30-27A	1	12-15 VDC	30-27 A
CPS20.241	Power Supply, 480W, 100-240VAC 1PH, 24-28VDC, 20-17.5A	1	24-28 VDC	20-17.5 A
CPS20.481	Power Supply, 480W, 100-240VAC 1PH, 48-55VDC, 10-8.7A	1	48-55 VDC	10-8.7 A

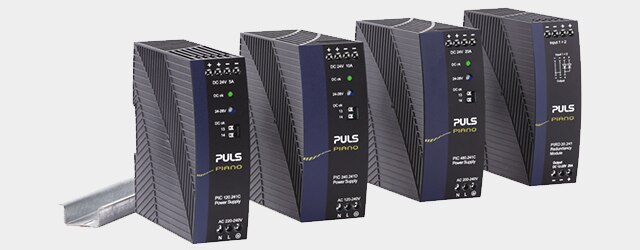

PIANO – The Perfect Mix of Value and Quality

The PIANO family is designed for applications that require reliable DC power with basic functionality for added value.

With these cost optimized power supplies you will get exactly what you need for your application - without making compromises on the well-known PULS qualities, like efficiency, service lifetime, reliability or size.

Benefits:

24V power supplies, 120 W and 240 W, 1-phase input
Increased system uptime with MTBF values of more than 1.72 million hours
Reduced energy costs thanks to a peak efficiency of 95.2% (PIC240.241D)
Highly shock-resistant and light-weight polycarbonate housing

Part Number	Description	Phase	Voltage	Current (A)	View Details
PIC120.241D	Power Supply, 120W, 100-120 / 200-240VAC 1PH, 24-28VDC, 5-4.3A	1	24-28 VDC	5-4.3 A
PIC240.241D	Power Supply, 240W, 120-240VAC 1PH, 24-28VDC, 10-8.6A	1	24-28 VDC	10-8.6 A

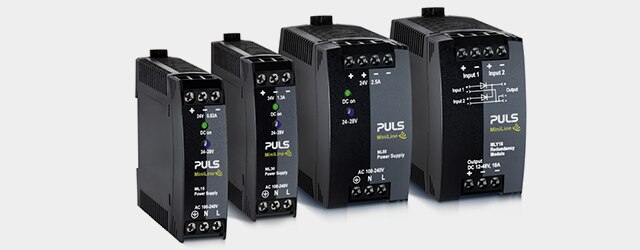

MiniLine – Ultra Compact Design for Low-Power Applications

Reliable and ultra-compact DIN rail power supplies for low power requirements, featuring an excellent cost-value ratio.

Benefits:

Low-power variety: 5-48 V power supplies, 15 to 100 W, 1- or 2-phase input
Various configurations equipped for different applications (e.g. DC wide-range, load sharing, etc.)

Part Number	Description	Phase	Voltage	Current (A)
ML15.051	Power Supply, 15W, 100-240VAC 1PH, 5-5.5VDC, 3A	1	5-5.5 VDC	3 A
ML15.121	Power Supply, 15W, 100-240VAC 1PH, 12-15VDC, 1.3-1A	1	12-15 VDC	1.3-1 A
ML15.241	Power Supply, 15W, 100-240VAC 1PH, 24-28VDC, 0.63-0.54A	1	24-28 VDC	0.63-0.54 A
ML30.100	Power Supply, 30W, 100-240VAC 1PH, 24-28VDC, 1.3-1.1A	1	24-28 VDC	1.3-1.1 A
ML30.101	Power Supply, 25W, 100-240VAC 1PH, 5-5.5VDC, 5-4.5A	1	5-5.5 VDC	5-4.5 A
ML30.102	Power Supply, 50W, 100-240VAC 1PH, 12-15VDC, 4.2-3.4A	1	12-15 VDC	4.2-3.4 A
ML30.241	Power Supply, 30W, 100-240VAC 1PH, 24-28VDC, 1.3-1.1A with Screw Terminals	1	24-28 VDC	1.3-1.1 A
ML30.106	Power Supply, 36W, 100-240VAC 1PH, ±12 or ±15VDC, 0-2.8A	1	±12 or ±15 VDC	0-2.8 A
ML50.100	Power Supply, 50W, 100-240VAC 1PH, 24-28VDC, 2.1-1.8A	1	24-28 VDC	2.1-1.8 A
ML50.102	Power Supply, 50W, 100-240VAC 1PH, 12-15VDC, 4.2-3.4A	1	12-15 VDC	4.2-3.4 A
ML50.105	Power Supply, 50W, 100-240VAC 1PH, 48-56VDC, 1.05-0.9A	1	48-56 VDC	1.05-0.9 A
ML60.121	Power Supply, 54W, 100-240VAC 1PH, 12-15VDC, 4.5-3.6A	1	12-15 VDC	4.5-3.6 A
ML60.241	Power Supply, 60W, 100-240VAC 1PH, 24-28VDC, 2.5-2.1A	1	24-28 VDC	2.5-2.1 A
ML95.100	Power Supply, 95W, 100-120 / 200-240VAC 1PH, 24-28VDC, 3.9-3.2A	1	24-28 VDC	3.9-3.2 A
ML100.100	Power Supply, 100W, 100-120 / 200-240VAC 1PH, 24-28VDC, 4.2-3.6A	1	24-28 VDC	4.2-3.6 A
ML100.102	Power Supply, 90W, 100-120 / 200-240VAC 1PH, 12-15VDC, 7.5-6A	1	12-15 VDC	7.5-6 A
ML100.105	Power Supply, 100W, 100-120 / 200-240VAC 1PH, 48-56VDC, 2.1-1.8A	1	48-56 VDC	2.1-1.8 A

Comparison – Find your Power Solution

DC Power Solutions From Valuable to Full Featured Units 15 W to 960 W		DIMENSION		PIANO	MiniLine
		Q-Series	C-Series
Input / Output	Input Voltage(s)	1-Phase 3-Phase DC	1-Phase 3-Phase DC	1-Phase	1-Phase 3-Phase DC
	Output Voltages (DC)	12 / 24 / 36 / 48 V	12 / 24 / 30 / 36 / 48 V	DC 24V	5 / 10 / 12 / 15 / 24 / 30 / 48 V
	Output Power Range	80 - 960 W	80 - 480 W	120 / 240 W	15 - 100 W
Features	Power Reserves	50% for 4 seconds	20% continuous	-	-
	High Efficiency Ratings	✔ up to 95.4%	✔ up to 95.5%	✔ up to 95.2%	✔ up to 91.0%
	Parallel Connection	✔	✔	✔	✔
	DC-OK Relay Contact Versions	✔	✔	✔	✔
	Expected Lifetime Published	✔	✔	✔	✔
	Housing Material	Metal	Metal	Plastic	Plastic
	Fuse Breaking Capability	✔	✔
	Low Inrush Current	✔	✔
	Resists High Power Transient Voltages	✔	(✔)	(✔)	(✔)
Environmental Conditions	Operational Temperature Range	-25°C ... +70°C	-25°C ... +70°C	-10°C ... +70°C	-10°C ... +70°C
Environmental Conditions	Conformal Coated Versions	✔	(✔)		(✔)
Agency Approvals	Hazardous Locations	(✔)	✔		(✔)
	Marine	✔	✔	(✔)	(✔)
	Semiconductor	✔	(✔)		(✔)
