onsemi offers a complete power portfolio with leadership technology in MOSFETs, Wide Band Gap, IGBTs and power modules for a wide variety of power conversion applications. Pairing with our outstanding power products, onsemi is a value-added partner offering a complete solution from protection to switching. onsemi is equipped to support engineers in creating innovative designs in EV-Charging, AC-DC Power, and Battery Storage applications.
onsemi facilitates a full WBG ecosystem for their customers by providing patented termination structures which provides superior robustness for harsh environmental conditions. From internal manufacturing to physical device models for simulation onsemi ensures reliability for all EliteSiC devices.

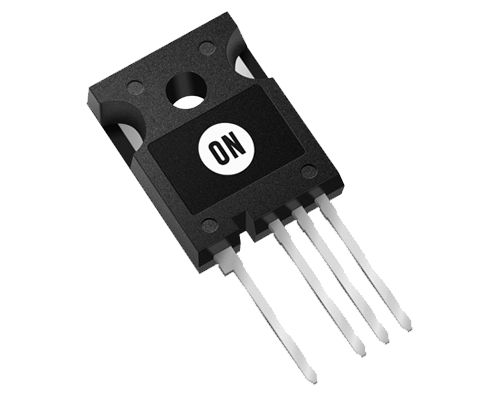

The onsemi EliteSiC MOSFETs provide high-efficiency, increased power density, and reduced system size
The onsemi EliteSiC MOSFETs provide high efficiency, increased power density, and reduced system size

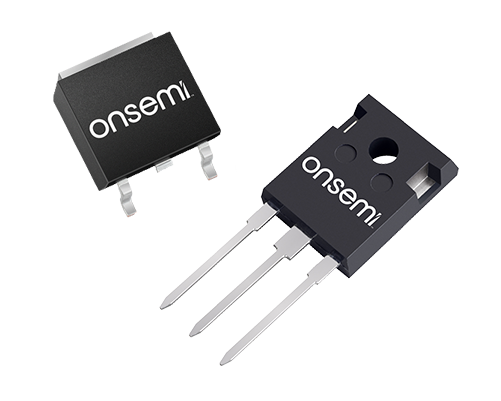

The onsemi EliteSiC diodes provide superior switching performance and high reliability
The onsemi EliteSiC diodes benefits include faster operating frequency, increased power density, and reduced EMI
The onsemi EliteSiC diodes have temperature independent switching characteristics and excellent thermal performance
As an industry-leader in MOSFETs, onsemi offers a complete HV portfolio for power conversion applications. Furthermore, a vertically integrated supply chain ensures reliability along with customization options for SMPS and PFC designs.
| Part Number | Description | View Details |
|---|---|---|
| FCB070N65S3 | N-Channel 44A (Tc) 312W (Tc) Surface Mount D²PAK (TO-263AB) | View Details |
| FCB099N65S3 | N-Channel 30A (Tc) 227W (Tc) Surface Mount D²PAK-3 (TO-263) | View Details |
| FCB125N65S3 | N-Channel 24A (Tc) 181W (Tc) Surface Mount TO-263 (D²Pak) | View Details |
| FCB199N65S3 | N-Channel 14A (Tc) 98W (Tc) Surface Mount D²PAK (TO-263) | View Details |
| FCB260N65S3 | N-Channel 12A (Tc) 90W (Tc) Surface Mount D²PAK (TO-263) | View Details |
| FCD260N65S3 | N-Channel 12A (Tc) 90W (Tc) Surface Mount TO-252, (D-Pak) | View Details |
| FCD360N65S3R0 | N-Channel 10A (Tc) 83W (Tc) Surface Mount D-PAK (TO-252) | View Details |
| FCD600N65S3R0 | N-Channel 6A (Tc) 54W (Tc) Surface Mount D-PAK (TO-252) | View Details |

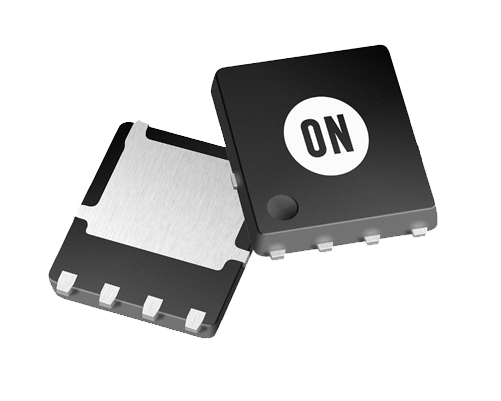

With best-in-class MV technology, onsemi's Trench8 devices offers 20% lower RDS(ON)*Qg FOM than the best competitor. Featuring optimized switching performance based on T6 technology, there is a 35-40% reduction in Qg and Qoss from T6.
| Part Number | Description | View Details |
|---|---|---|
| NTBLS1D1N08H | N-Channel 41A (Ta), 351A (Tc) 4.2W (Ta), 311W (Tc) Surface Mount 8-HPSOF | View Details |
| NTLJS4D7N03HTAG | N-Channel 11.6A (Ta) 860mW (Ta) Surface Mount 6-PQFN (2x2) | View Details |
| NTLJS4D9N03HTAG | N-Channel 9.5A (Ta) 860mW (Ta) Surface Mount 6-PQFN (2x2) | View Details |
| NTMFD6H846NLT1G | Mosfet Array 2 N-Channel (Dual) 80V 9.4A (Ta), 31A (Tc) 3.2W (Ta), 34W (Tc) Surface Mount 8-DFN (5x6) Dual Flag (SO8FL-Dual) | View Details |
| NTMFD6H852NLT1G | Mosfet Array 2 N-Channel (Dual) 80V 295mA 250mW (Ta) Surface Mount 8-DFN (5x6) Dual Flag (SO8FL-Dual) | View Details |
| NTMFS4H01NFT1G | N-Channel 54A (Ta), 334A (Tc) 3.2W (Ta), 125W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL) | View Details |
| NTMFS4H01NFT3G | N-Channel 54A (Ta), 334A (Tc) 3.2W (Ta), 125W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL) | View Details |
onsemi offers a broad isolation portfolio supplying patented technology that combines the safety features of optocouplers and the performance features of digital isolators.
| Part Number | Description | View Details |
|---|---|---|
| NCID9211 | I²C, SPI Digital Isolator 5000Vrms Channel 50Mbps 100kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) | View Details |
| NCID9211R2 | I²C, SPI Digital Isolator 5000Vrms Channel 50Mbps 100kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) | View Details |
| NCID9401 | I²C, SPI Digital Isolator 5000Vrms Channel 10Mbps 100kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) | View Details |
| NCID9411 | I²C, SPI Digital Isolator 5000Vrms Channel 10Mbps 100kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) | View Details |

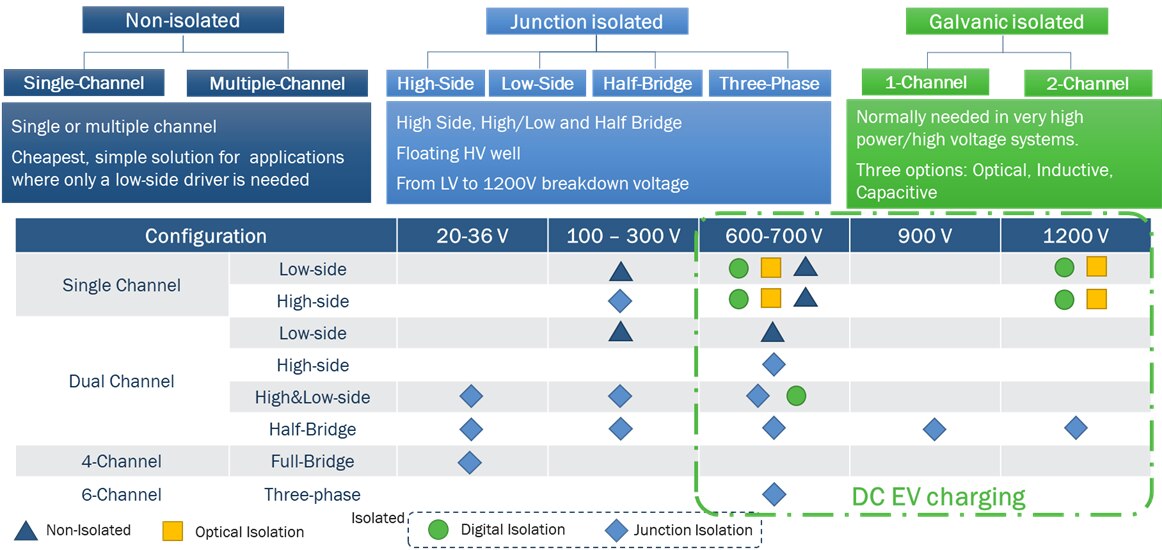

The portfolio of Gate Drivers from onsemi includes GaN, IGBT, FET, MOSFET, H-Bridge MOSFET, and SiC MOSFET inverting and non-inverting drivers ideal for switching applications.
onsemi's NCx5700x for high system efficiency and reliability in high power applications

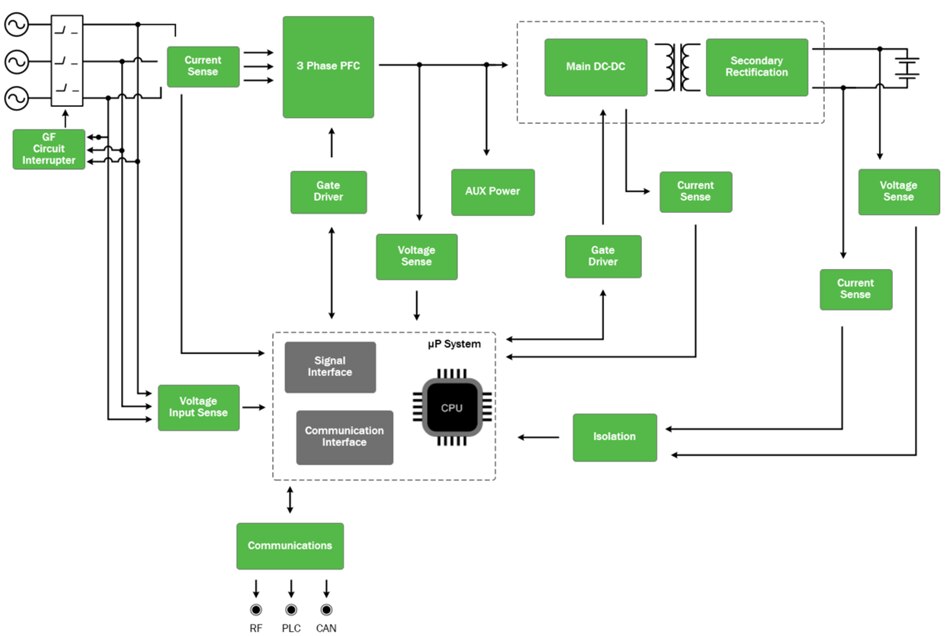

With leading power modules and EliteSiC technologies with a comprehensive overall portfolio, onsemi is your value-added partner for Fast DC EV Charging solutions.

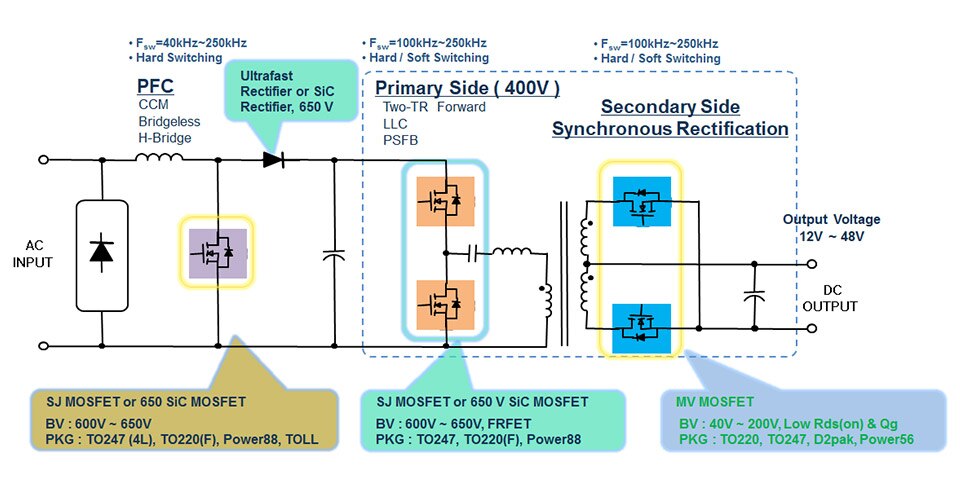

onsemi's comprehensive portfolio of MOSFETs and other products provide a plethora of options for power supply applications. Products and solutions from onsemi increase active-mode efficiency, decrease standby-mode power consumption, and provide power factor correction, at every point in the power chain from line to load.
As energy storage systems have increased demand with the modernization of the grid, onsemi's portfolio of high voltage MOSFETs and EliteSiC discretes help provide complete and robust solutions.

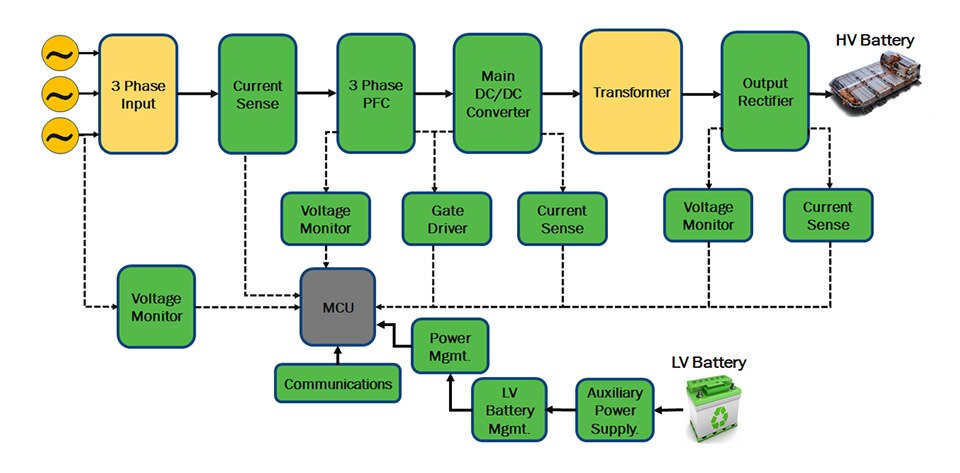

Plug-in and Full Electric vehicles require fast charging bi-directional On Board Charger Systems (OBC) connected to the power grid to replenish vehicle battery energy. onsemi provides a comprehensive portfolio of robust high power density discrete and modular solutions for On Board Charging Systems.

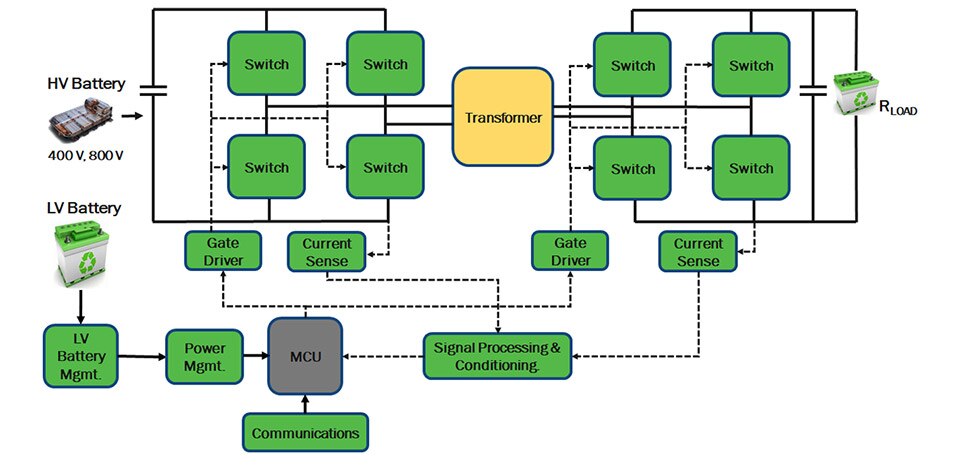

onsemi offers discrete and modular component solutions with characteristic low switching and conduction losses that facilitate the design of high efficiency DC/DC conversion systems.

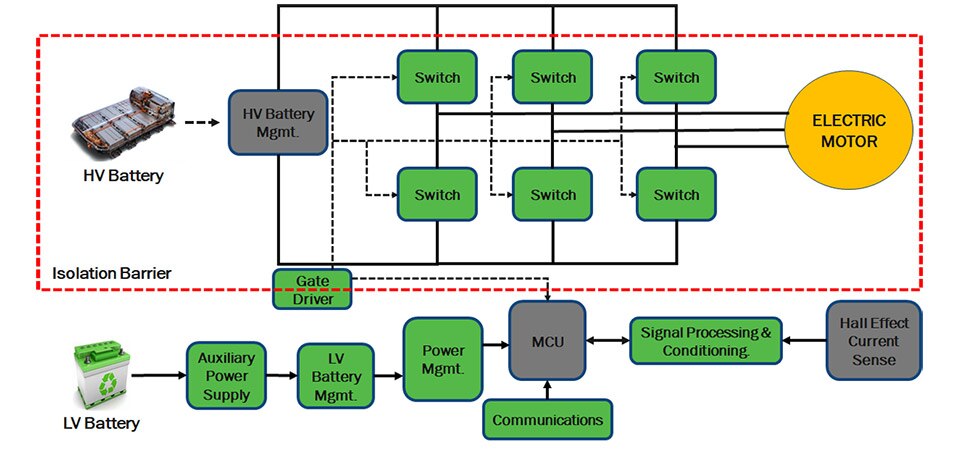

To enable longer driving distances, high torque, and acceleration in Electric vehicles, onsemi offers discrete and modular component solutions to design high efficiency, cost effective, and reliable Traction Inverter systems.
