            nPM1304 Power Management ICs and Evaluation Kit
                    Nordic Semiconductor offers compact power management and precision battery monitoring for next-gen embedded designs

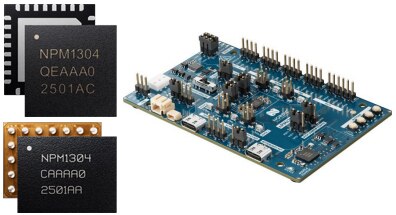

Nordic Semiconductor nPM1304 PMICs and corresponding evaluation kit bring power efficiency, flexibility, and intelligent system control to compact embedded applications. Whether users are prototyping wearables, biosensors, or other space-constrained designs, the nPM1304 delivers robust performance with minimal external components. The evaluation kit, paired with the Nordic intuitive PowerUP software, provides a code-free way to experiment with and configure the PMIC's features, including fuel gauging, watchdog, and dynamic battery profiling. All of this is delivered in a rugged yet tiny package, ready for development or deployment.

Features

Two high-efficiency 200 mA DC/DC buck regulators (BUCK1/2)
Two 50 mA LDOs with optional load switches (LDO1/2, LS1/2)
Integrated 4 mA to 100 mA battery charger supporting Li-ion, LiPo, LiFePO4
USB Type-C® compliant power input with power path management
Precision fuel gauge and system-level watchdog
10-bit ADC for system monitoring and power-fail warnings

Ship mode, hibernate mode, and hard reset for 1 to 2 buttons
Five GPIOs, three LED drivers, and one button input
Supports configuration via I²C-compatible TWI interface
Operating range: -40°C to +85°C; QFN and WLCSP packaging options
Evaluation kit includes PowerUP GUI, USB-C ports, battery connectors, and onboard LEDs/pushbuttons

Applications

Smart rings and compact wearables
Stylus pens and digital input tools
Medical biosensors

Sports and activity trackers
Battery-operated prototypes with embedded MCUs
Development and evaluation of low-power power systems

nPM1304 Power Management ICs

Manufacturer Part Number	Description	Available Quantity	Price	View Details
NPM1304-CAAA-R	NPM1304 POWER MANAGEMENT IC	0 - Immediate	$11.32	View Details
NPM1304-CAAA-R7	NPM1304 POWER MANAGEMENT IC	0 - Immediate	$23.63	View Details

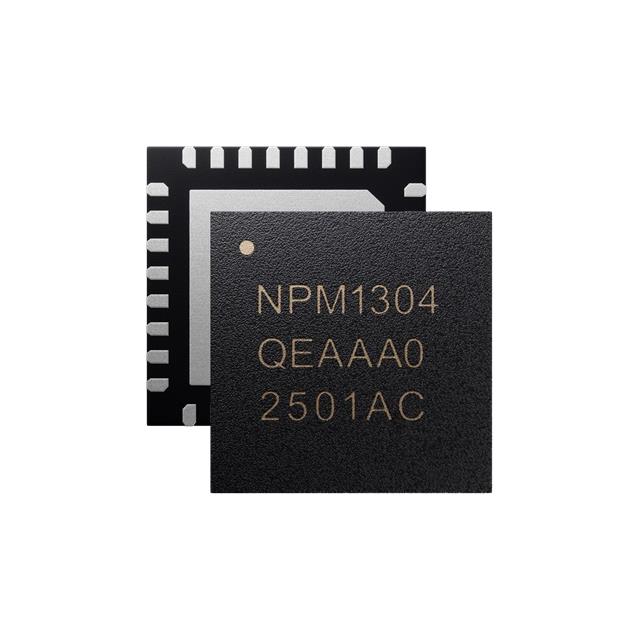

NPM1304-QEAA-R	NPM1304 POWER MANAGEMENT IC	0 - Immediate	$11.32	View Details
NPM1304-QEAA-R7	NPM1304 POWER MANAGEMENT IC	0 - Immediate	$23.63	View Details
