ESD Protection for Automotive CAN-FD

Nexperia's AEC-Q100 qualified CAN-FD solutions offer PPAP capability

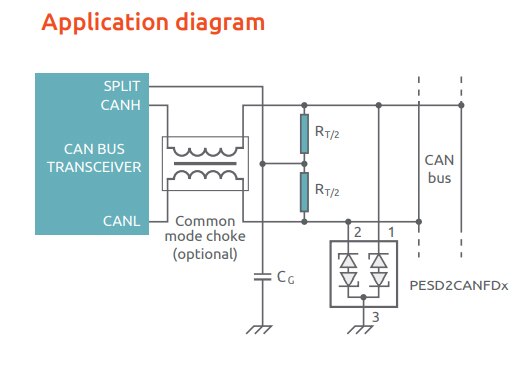

Image of Nexperia's ESD Protection for Automotive CAN-FD (click to enlarge) Nexperia’s ESD protection for automotive CAN-FD (flexible data) covers speeds up to 5 Mb/s whereas the well-known CAN protocol is limited to 1 Mb/s. The typical implementation limit suitable for many applications that do not require higher data rates is 2 Mb/s. As data payload in vehicles increases, high-speed data transmission becomes essential and new protocols find their way into in-vehicle networks.

Features
  • Reverse stand-off voltage (VRWM): 24 V or 27 V
  • Low clamping voltage (VCL): down to 30 V at IPP = 1 A
  • Three capacitance classes CD = 3.5 pF, 6 pF, and 10 pF
  • Improved ESD protection: up to 30 kV (IEC61000-4-2, ISO10605)
  • High-temperature capability:
    • Junction temperature (TJ): +150°C (DFN) and +175°C (SMD)
  • AEC-Q101 qualification grade/PPAP capability
  • CAN-FD solutions are available in automotive grade, extreme-robustness leaded SMD, and leadless DFN plastic packages

ESD Protection for Automotive CAN-FD

ImageManufacturer Part NumberDescriptionVoltage - Reverse Standoff (Typ)Voltage - Breakdown (Min)Available QuantityPriceView Details
TVS DIODE 24VWM 42VC TO236ABPESD2CANFD24V-TRTVS DIODE 24VWM 42VC TO236AB24V (Max)25.5V18535 - Immediate$2.47View Details
TVS DIODE 27VWM 44VC TO236ABPESD2CANFD27V-TRTVS DIODE 27VWM 44VC TO236AB27V-19901 - Immediate$3.54View Details
TVS DIODE 27VWM 45VC SC70PESD2CANFD27U-UXTVS DIODE 27VWM 45VC SC7027V (Max)28V2235 - Immediate$2.88View Details
TVS DIODE 24VWM 42VC TO236ABPESD2CANFD24U-TRTVS DIODE 24VWM 42VC TO236AB24V (Max)25.5V12756 - Immediate$1.98View Details
TVS DIODE 24VWM 43VC SC70PESD2CANFD24U-UXTVS DIODE 24VWM 43VC SC7024V (Max)25.5V3883 - Immediate$2.55View Details
TVS DIODE 27VWM 44VC SOT323PESD2CANFD27V-UXTVS DIODE 27VWM 44VC SOT32327V-13791 - Immediate$3.21View Details
TVS DIODE 24VWM 42VC SOT323PESD2CANFD24V-UXTVS DIODE 24VWM 42VC SOT32324V (Max)25.5V16549 - Immediate$1.98View Details
TVS DIODE 24VWM TO236ABPESD2CANFD24L-TRTVS DIODE 24VWM TO236AB24V-8569 - Immediate$2.55View Details
TVS DIODE 27VWM 42VC TO236ABPESD2CANFD27L-TRTVS DIODE 27VWM 42VC TO236AB27V (Max)28V43779 - Immediate$0.91View Details
TVS DIODE 27VWM 44VC TO236ABPESD2CANFD27U-TRTVS DIODE 27VWM 44VC TO236AB27V (Max)28V874 - Immediate$2.39View Details
TVS DIODE 27VWM 45VC DFN1110D-3PESD2CANFD27U-QBZTVS DIODE 27VWM 45VC DFN1110D-327V (Max)28V12 - Immediate$2.39View Details
TVS DIODE 24VWM 42VC DFN1110D-3PESD2CANFD24V-QBZTVS DIODE 24VWM 42VC DFN1110D-324V (Max)25.5V13626 - Immediate$2.72View Details
TVS DIODE 27VWM 44VC DFN1110D-3PESD2CANFD27V-QBZTVS DIODE 27VWM 44VC DFN1110D-327V (Max)28V0 - Immediate$3.70View Details
TVS DIODE 24VWM 43VC DFN1110D-3PESD2CANFD24U-QBZTVS DIODE 24VWM 43VC DFN1110D-324V (Max)25.5V14660 - Immediate$2.22View Details
TVS DIODE 27VWM 45VC DFN1412D-3PESD2CANFD27U-QCZTVS DIODE 27VWM 45VC DFN1412D-327V (Max)28V0 - Immediate$3.54View Details
TVS DIODE 27VWM 44VC DFN1412D-3PESD2CANFD27V-QCZTVS DIODE 27VWM 44VC DFN1412D-327V (Max)28V0 - Immediate$3.38View Details
TVS DIODE 24VWM 42VC DFN1412D-3PESD2CANFD24V-QCZTVS DIODE 24VWM 42VC DFN1412D-324V (Max)25.5V27341 - Immediate$2.22View Details
TVS DIODE 24VWM 43VC DFN1412D-3PESD2CANFD24U-QCZTVS DIODE 24VWM 43VC DFN1412D-324V (Max)25.5V13268 - Immediate$3.29View Details
TVS DIODE 24VWM SC70PESD2CANFD24L-UXTVS DIODE 24VWM SC7024V-14384 - Immediate$2.72View Details
TVS DIODE 27VWM SC70PESD2CANFD27L-UXTVS DIODE 27VWM SC7027V-21497 - Immediate$2.22View Details
Published: 2021-04-06
