Oscillators

Broad portfolio of MEMS, Crystal Oscillators, and TCXOs that offer low power and low jitter solutions in industry-standard packages. These single-output oscillators are excellent choices for clock references in small form factor applications.

Features

  • Wide frequency ranges
  • Custom configurations
  • High stability (10,20,25,50 ppm)
  • Fast start up times (2.5 ms typical)
  • Industrial, auto, commercial temps
  • STD package sizes
  • Shock & vibration reliability

Applications

  • Low power / portable
  • PCIE Gen 1/2/3/4/5/6
  • Network Comms
  • Consumer
  • Industrial

End Products

  • IoT / wearables
  • Embedded / smart devices
  • Home healthcare
  • Home automation
  • Building / factory automation
  • Surveillance cameras
  • Storage SSD
  • USB, SATA, SAS Ref CLK
  • 10/100G ethernet

DSC6xxxB / 100x / 11x1 /12x1/ 15xx MEMS Oscillators - LVCMOS

LVCMOS- Low Power / Low Jitter Solutions


DSC11x2/3/4 | DSC12x2/3/4 MEMS Oscillators - Differential

Differential- Low Power / Low Jitter Solutions


DSA6xxxB/DSA10x1 MEMS Oscillators - Automotive

Auto - LVCMOS Output - Low Power


DSA11x1/DSA11x2/3/4/5 MEMS Oscillators - Automotive

Auto - LVCMOS & Differential Output - Low Jitter


DSA1202/3/4 MEMS Oscillators - Automotive

Auto - LVCMOS & Differential Output - Low Jitter


VCxxx Crystal Oscillators

Industry Standard - LVCMOS & Differential Solutions


VT-7 / -8 xxx TCXO's

LVCMOS & Clipped Sinewave

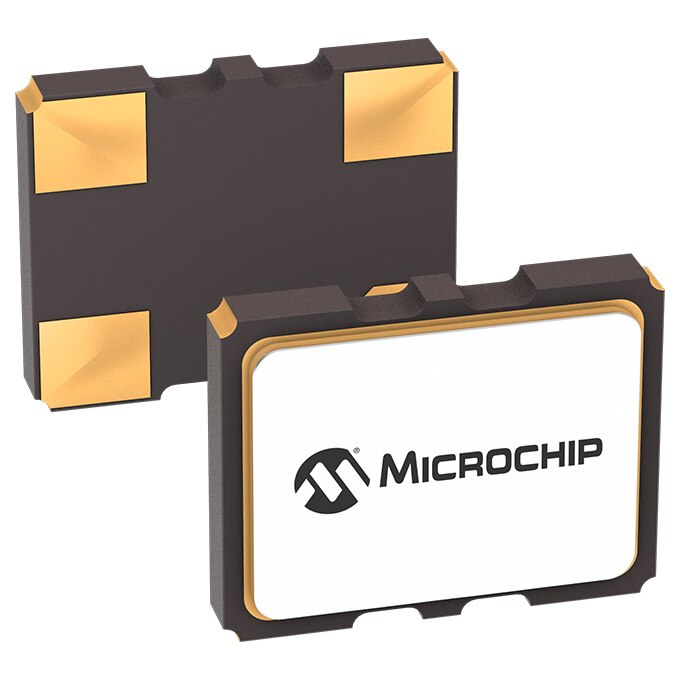

Crystals

Microchip's family of crystals and Tuning Forks come in wide variety of industry standard packages, frequency options and deliver high stability and accuracy over a wide temperature range.

Features

  • STD frequency ranges
  • STD package sizes
  • LVCMOS, differential
  • Low jitter

Applications

  • Clock sourcing
  • Smart phones
  • IoT
  • Wearables
  • 5G
  • Servers / storage

End Products

  • IoT / wearables
  • Embedded / smart devices
  • Home healthcare
  • Home automation
  • Building / factory automation
  • Surveillance cameras

VXxx SeriesCrystal

Industry Standard Packages / Frequencies

VMKxxx SeriesTuning Forks

Industry Standard Size / Pin Out - 32.768KHz

VTxxx SeriesTCXO

LVCMOS & Clipped Sinewave

VCxxx SeriesXO

LVCMOS & Differential Solutions

Programmable Blanks

Programmable Oscillators used in conjunction with the Microchip Field Programmer “Timeflash2 Programming Kit” (DSC-TimeFlash2-Kit1). Enables field programming of Microchip’s MEMS Oscillators for quick turn prototyping, NPI ready oscillators. Available in industry standard packages that are drop-in replacements for standard crystal oscillators.

Features

  • Wide frequency ranges
  • STD package sizes
  • High stability (10,20,25,50ppm)
  • Industrial, auto, commercial temps
  • Excellent shock and vibration tolerance

Applications

  • Low power / portable
  • Consumer
  • Industrial

End Products

  • IoT / wearables
  • Embedded / smart devices
  • Home healthcare
  • Home automation
  • Building / factory automation
  • Surveillance cameras

DSC1000 (-PROG)Programmable Blank

LVCMOS - Programs to DSC1000 Series

DSC1100/1 (-PROG)Programmable Blank

LVCMOS/Differential - Programs to DSC1100 Series

DSC1200/1 (-PROG)Programmable Blank

LVCMOS/Differential - Programs to DSC1200 Series

DSC6000B (-PROG)Programmable Blank

LVCMOS - Programs to DSC6000B Series

DSC6100B (-PROG)Programmable Blank

LVCMOS/Differential - Programs to DSC6100B Series

DSC1500 (-PROG)Programmable Blank

LVCMOS - Programs to DSC1500 Series

TimeFlash Oscillator Field Programming Kit

TimeFlash Programmer allows users to program oscillators to a custom frequency instantly.

Low Power

Feature-rich, multi-output clock generators with optional integrated clock sources for low-power and low-jitter applications. Solve your timing challenges and complex clock trees with our highly configurable and easy-to-use family of clock generators.

Features

  • MEMS & crystal solutions available
  • Low power consumption
  • Wide supply voltage range
  • Ultra small packages available
  • Wide temperature ranges

Applications

  • Low power/portable applications: IoT
  • Embedded/smart devices
  • Consumer: home healthcare, fitness devices, home automation
  • Industrial: building/factory automation, surveillance cameras

DSC612/3Low Power Clock Generators

2-3 Output : Integrated MEMS Resonator

PL611SxLow Power Clock Generators

2-3 Output : Crystal or Reference Input

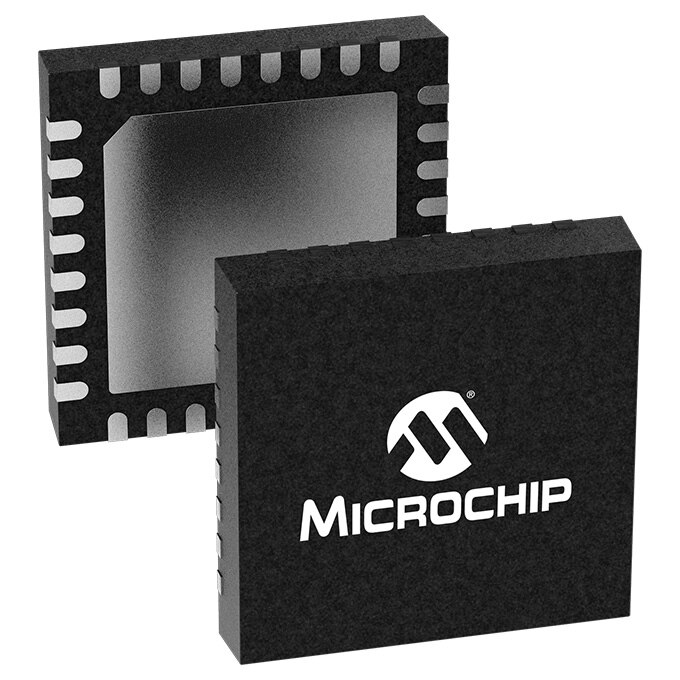

Low Jitter

Feature-rich, multi-output clock generators with optional integrated clock sources for low-power and low-jitter applications. Solve your timing challenges and complex clock trees with our highly configurable and easy-to-use family of clock generators.

Features

  • MEMS & crystal solutions available
  • Low jitter
  • Custom configurations
  • PCIE solutions
  • Wide supply voltage range
  • Ultra small packages available
  • Wide temperature ranges

Applications

  • PCIe Gen1/2/3/4/5/6 clock generation
  • Communications / networking
  • Servers, storage and data centers
  • Switches and routers
  • Embedded applications
  • Consumer electronics

ZL30291 SeriesLow Jitter Clock Generator

19 Outputs, Freq 25-100MHz, LPHCSL

ZL3027X SeriesLow Jitter Clock Generator

6/10 Outputs, Up to 750MHZ, LVCMOS & Differential Solutions

ZL3026X SeriesLow Jitter Clock Generator

6/10 Outputs, 1Hz - 1045MHz, LVCMOS & Differential Solutions

ZL3025X SeriesLow Jitter Clock Generator

3 Outputs, 1Hz- 1035MHz, CML & LVCMOS

SM806 SeriesLow Jitter Clock Generator

6 Outputs, 12.5-MHz - 850MHz, LVCMOS & Differential Solutions

SM803 SeriesLow Jitter Clock Generator

12 Outputs, 12.5-MHz - 850MHz, LVCMOS & Differential Solutions

SM802 SeriesLow Jitter Clock Generator

8 Outputs, 12.5MHz- 850MHz, HCSL

PL602 SeriesLow Jitter Clock Generator

1/2/4/8 Outputs, 100MHZ , HCSL

MX85 SeriesLow Jitter Clock Generator

5/10 Outputs, 14MHZ - 400MHz, LVCMOS & Differential Solutions

MX87 SeriesLow Jitter Clock Generator

6 Outputs, 12MHz - 400MHz, LVCMOS & Diffential Solutions

DSC557-03/04/05 SeriesLow Jitter Clock Generator

2/3/4 Outputs, 100MHz, Differential Output

DSC400 SeriesLow Jitter Clock Generator

2/3/4 Configurable Outputs, 2.3MHz- 170MHz, LVCMOS & Differential Solutions

DSC2xxx SeriesLow Jitter Clock Generator

2 Configurable Outputs, 2.3MHz- 170MHz, LVCMOS & Differential Solutions

Clock Conditioning

Feature-rich, multi-output clock generators with optional integrated clock sources for low-power and low-jitter applications. Solve your timing challenges and complex clock trees with our highly configurable and easy-to-use family of clock generators.

Features

  • Programmable
  • PCIE solutions
  • Spread spectrum
  • Low jitter
  • Wide supply voltage range
  • Wide temperature ranges

Applications

  • Communications / networking
  • Servers, storage and data centers
  • Switches and routers
  • Embedded applications
  • Consumer electronics

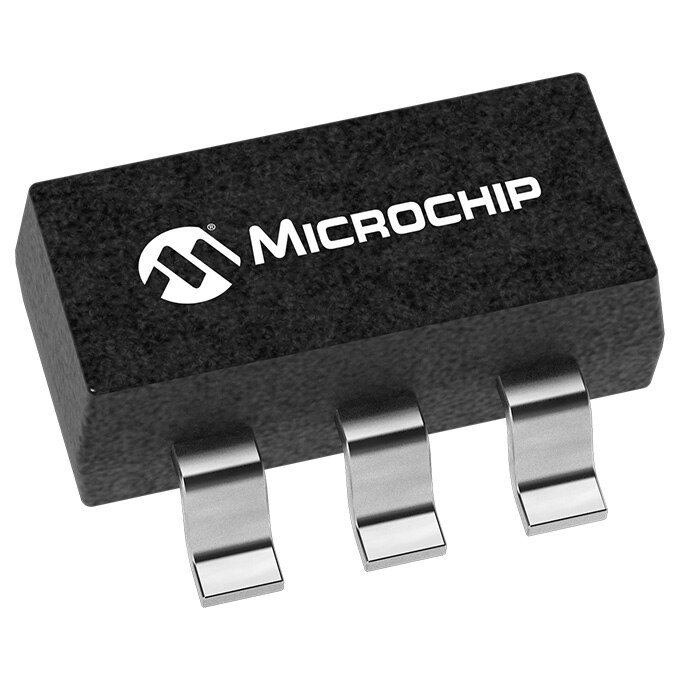

PL671-00Clock Conditioning

1/2/3 Outputs, 1MHz - 200MHz, LVCMOS SpreadSpectrum

PL902/3/4Clock Conditioning

1/2/12 Outputs, 12MHz - 850MHz, LVCMOS & Differential Solutions

ZL30281/2Clock Conditioning

3/6 Outputs, 25MHz - 100MHz, LVCMOS - PCIE

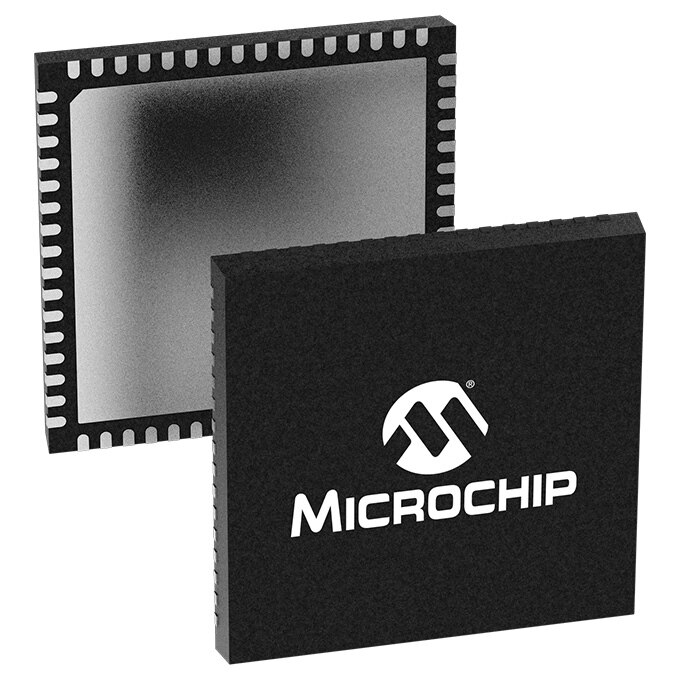

Jitter Attenuators

Our jitter attenuation and frequency conversion products lower your BoM costs, reduce board space and simplify design complexity by replacing multiple components, including oscillators and discrete PLLs—that are typically required for implementing jitter attenuation and frequency conversion in high-speed networking and ethernet applications.

Features

  • Programmable
  • PCIE solutions
  • Spread spectrum
  • Low jitter
  • Wide supply voltage range
  • Wide temperature ranges

Applications

  • Communications / networking
  • Servers, storage and data centers
  • Switches and routers
  • Embedded applications
  • Consumer electronics

ZL301xxJitter Attenuators

2-12 Outputs, LVCMOS, LVPECL, LVDS Solutions

ZL302xxJitter Attenuators

2-12 Outputs, LVCMOS, LVPECL, LVDS, HCSL Solutions

MAX24xxx / MAX36xxx / MAX94xxxJitter Attenuators

5/10 Outputs , LVCMOS, LVPECL,LVDS,HCSL Solutions

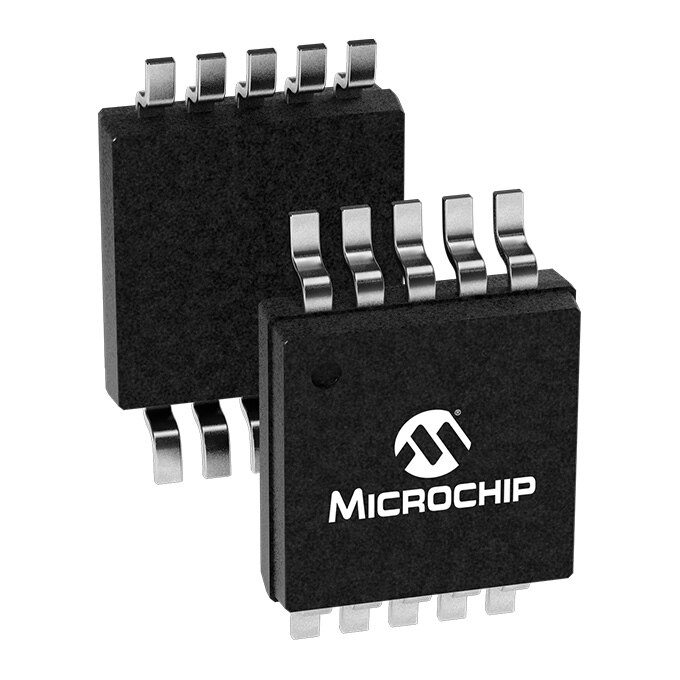

Buffers

Offering one of the most extensive portfolios of clock buffers in the industry. Ranging from 2 to 22 outputs, supporting differential (LVPECL, LVDS, HCSL, CML) and single-ended LVCMOS outputs and have a maximum clock rate of 7.0 GHz and data rate of 10.7 Gbps, with very low additive jitter. Our clock buffer family consists of TCXO fanout buffers, crystal or reference input fanout buffers, zero-delay buffers and PCIe® buffers.

Features

  • Up to 22 outputs
  • Wide variety of Fanout buffers
  • Crystal or reference input
  • Zero-delay buffers and PCIe® buffers

Applications

  • High performance computing and networking
  • Telecom Infrastructure
  • PCIE Graphics Cards
  • Fibre Channel Clock and Data Distribution
  • Backplane Distribution
  • Synchronous Clock Distribution

Buffer: FanoutFanout Buffers

Any input without External Components, 2-22 Outputs

Buffer: Fanout (PCIE)Fanout Buffers - PCIE

PCIE GEN 1-6 Compliant, 2-20 Outputs

Buffer: Zero Delay (PCIE)Buffers - Zero Delay - PCIE

PCIE Compliant : Distribute high-speed and spread-spectrum clocks, High Performance, Low Skew, Low Jitter

Buffer: Zero DelayBuffers - Zero Delay

Distribute high-speed and spread-spectrum clocks, High Performance, Low Skew, Low Jitter

Programmable Buffers

Output configurable, rate control and digital features, providing the ability to create multiple copies of a clock signal and distribute them among several loads with minimal additive jitter.

Features

  • Up to 22 outputs
  • Wide variety of Fanout buffers
  • Crystal or reference input
  • Zero-delay buffers and PCIe® buffers

Applications

  • High performance computing and networking
  • Telecom Infrastructure
  • PCIE Graphics Cards
  • Fibre Channel Clock and Data Distribution
  • Backplane Distribution
  • Synchronous Clock Distribution

ZL40253Buffers - Programmable

10 output smart buffer

ZL40252Buffers - Programmable

10 output smart buffer

ZL40250Buffers - Programmable

6 output smart buffer

ZL40251Buffers - Programmable

6 output smart buffer

Data Distribution

Our extensive array of clock distribution product lines offers differential and single-ended outputs and a maximum clock rate of up to 7.0 GHz.

Features

  • Up to 22 outputs
  • Wide variety of Fanout buffers
  • Crystal or reference input
  • Zero-delay buffers and PCIe® buffers

Applications

  • High performance computing and networking
  • Telecom Infrastructure
  • PCIE Graphics Cards
  • Fibre Channel Clock and Data Distribution
  • Backplane Distribution
  • Synchronous Clock Distribution

Translator, Gate, FlipFlop

Clock or data rates up to 7 GHz, Single-ended and Differential Solutions

Backplane & Cable

Pre-Emphasis and Equalization, Single-Ended & Differential Up to 6.4Gbps CML Output

Crosspoint Switch

Single & Dual Channel, Up to 6 GHz clock, 10.7 Gbps data CML/LVDS

Backplane & Cable (PCIE)

PCIE Compliant- Pre-Emphasis and Equalization, Single-Ended & Differential Up to 6.4Gbps CML Output (PCIE Applications)

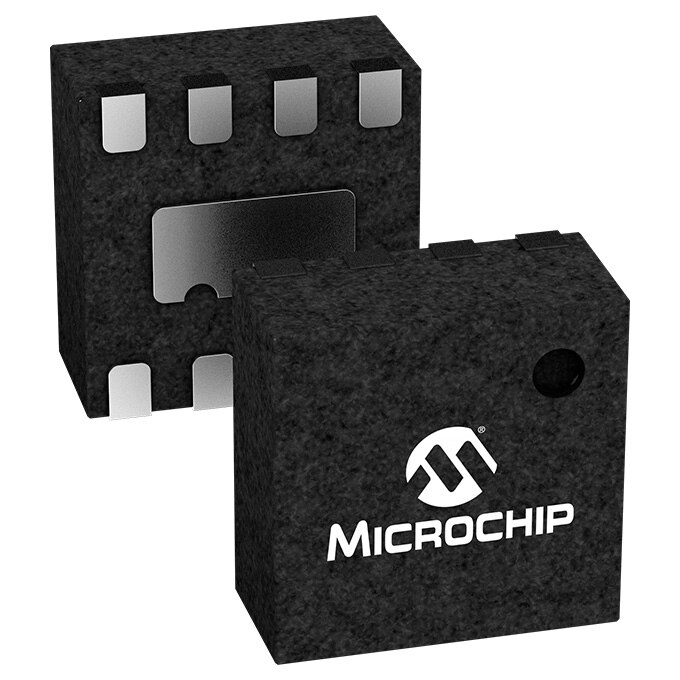

Clock Management

Wide variety of Multiplexers, Dividers and Skew Management to help manage your clocking signals.

Features

  • Multiple Inputs options
  • Divide by 1-16
  • Single Ended / Differential Options

Applications

  • High performance computing and networking
  • Telecom Infrastructure
  • PCIE Graphics Cards
  • Fibre Channel Clock and Data Distribution
  • Backplane Distribution
  • Synchronous Clock Distribution

Multiplexers

Up to 16 Inputs, PECL,LVPECL, CML, LVDS Output Solutions, Up to 7.0 GHz clock rate and 10.7 Gbps data rate

Dividers

Divide by 1, 2, 3, 4, 5, 8, 16 , Mult Output Banks, LVCMOS and Differential Solutions

Skew Management

2.2–13.2 ns programmable delay, 10 ps delay increments, Fine Tune Control

IEEE 1588

Our IEEE 1588 Precision Time Protocol (PTP) offers a precise network that meets the standard requirements and compliance with ITU-T G.8273.2 (class A, B, C, D) and G.8273.4 standards.

ZL307xxsyncE

IEEE 1588 Precision Time Protocol (PTP) offers a precise network that meets the standard requirements and compliance with ITU-T G.8273.2 (class A, B, C, D) and G.8273.4 standards

ZL80732syncE

IEEE 1588-2008 Precision Time Protocol Stack and Synch Algorithm software modules, ideal for applications such as 5G Distributed Units (DU), Centralized Units (CU) and Radio Units (CU)

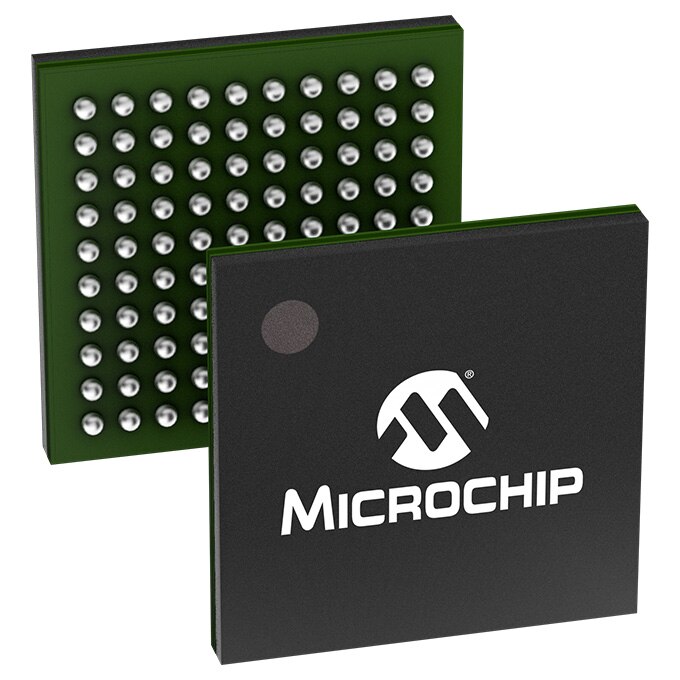

SyncE

We offer highly integrated SyncE timing products with advanced features that support precise end-to-end voice, video and data transmission that meet the ITU-T G.8262.1 standard.

Features

  • AMCs for AdvancedTCATMand MicroTCA
  • Systems
  • Synchronous Ethernet
  • Multi-Service edge switches or routers
  • DSLAM line cards
  • WAN line cards
  • RNC/Mobile switching center line cards
  • ADM line cards

ZL301xxxsyncE

Ultra-low-jitter synchronizers feature advanced functionalities tailored for high-speed line card interfaces

ZL306xxxsyncE

Ultra-low-jitter synchronizers feature advanced functionalities tailored for high-speed line card interfaces

ZL800xxxsyncE

Network synchronization solution with up to five independent DPLLs and five extremely low output jitter synthesizers

ZL810xxxsyncE

T1/E1 LIU & Framer Support BITS/SSU Timing Solution for Carrier-Class Telecommunications

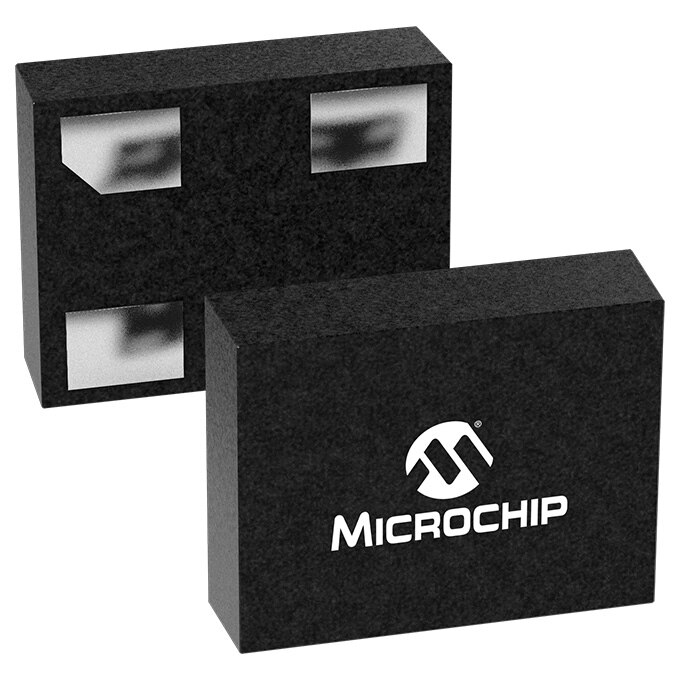

Oscillators

Microchip oscillators offer a PCIe Gen 1/2/3/4/5/6-compliant clock source utilizing MEMS and quartz technologies. Advantages include small package sizes and functionality across a wide range of temperatures.

Features

  • Low RMS phase jitter
  • Complies with PCIe Gen1/2/3/4/5/6
  • High stability: ±20, ±25, ±50 ppm
  • Wide temperature ranges
  • Wide freq. range: 2.5 to 450MHz
  • Supports LVCMOS, LVPECL, LVDS, or HCSL outputs
  • Small industry standard footprints

DSC1124DI1-100M0000Oscillators

Outputs = 1 , HCSL, Integrated MEMS, Gen 1-4

DSC1224DI1-100M0000Oscillators

Outputs = 1 , HCSL, Integrated MEMS, Gen 1-6

DSC1123DI1-100M0000Oscillators

Outputs = 1 , HCSL, Integrated MEMS, Gen 1-6

Clock Generators

Fully integrated, single-chip solutions feature PCIe Gen 1/2/3/4/5/6 compliance, up to eight outputs, compact package sizes, wide temperature ranges and optional spread spectrum functions.

Features

  • Configurable Solutions
  • Low jitter solutions
  • Complies with PCIe Gen1/2/3/4/5/6
  • High stability: ±20, ±25, ±50 ppm
  • Wide temperature ranges
  • Wide freq.range: 2.5 to 450MHz
  • Supports LVCMOS, LVPECL, LVDS, or HCSL outputs
  • Small industry standard footprints

Applications

  • PCI Express Gen 1/2/3/4/5/6
  • 1/10/40/100/400 Gigabit Ethernet (GbE)
  • SONET/SDH
  • CPRI/OBSAI – wireless base station
  • Fibre channel
  • HDMI/HDTV-4K
  • DIMM (DDR2-3-4/AMB)

PL602-21SCClock Generator

Outputs = 1, HCSL, Input = 25MHz Crystal or Referance, Gen 1/2

ZL30281LDG1Clock Generator

Outputs = 2,CML, Input = 25MHz Crystal or Referance, Gen 1-6

MX875BB0020Clock Generator

Outputs = 4, LVDS, Integrated Crystal, Gen 1-6

DSC557-0344FI1Clock Generator

Outputs = 2, HCSL, Integrated MEMS, Gen 1-4

DSC557-0333FI1Clock Generator

Outputs = 2, LVDS, Integrated MEMS, Gen 1-4

DSC557-054444KI1Clock Generator

Outputs = 4, LVDS, Integrated MEMS, Gen 1-4

ZL30282LDG1Clock Generator w Spread Spectrum

Outputs = 6, HCSL, Input =50MHz Crystal, Gen 1-6

ZL30265LDG1Clock Generator w Spread Spectrum

Outputs = 6, HCSL, Input = 50MHz Crystal or Referance, Gen 1-6

ZL30267LDG1Clock Generator w Spread Spectrum

Outputs = 10, HCSL, Input = 50MHz Crystal or Referance, Gen 1-6

Buffers

Our PCIe Gen 1/2/3/4/5/6-compliant buffers feature ultra-low-additive, high-jitter performance for up to 12 outputs while meeting industrial temperature ranges.

Features

  • Low jitter solutions
  • Complies with PCIe Gen1/2/3/4/5/6
  • Wide temperature ranges
  • 2-20 output options
  • LPHCSL , HCSL output options

Applications

  • PCI Express Gen 1/2/3/4/5/6
  • 1/10/40/100/400 Gigabit Ethernet (GbE)
  • SONET/SDH
  • CPRI/OBSAI – wireless base station
  • Fibre channel
  • HDMI/HDTV-4K
  • DIMM (DDR2-3-4/AMB)

SY75602Buffers

Outputs = 2 , LPHCSL, Input = HCSL, LVPECL, LVDS, LVCMOS, Gen 1-6

SY75603Buffers

Outputs = 2 , LPHCSL, Input = HCSL, LVPECL, LVDS, LVCMOS, Gen 1-6

SY75604Buffers

Outputs = 4 , LPHCSL, Input = HCSL, LVPECL, LVDS, LVCMOS, Gen 1-6

SY75608Buffers

Outputs = 8 , LPHCSL, Input = HCSL, LVPECL, LVDS, LVCMOS, Gen 1-6

SY75612Buffers

Outputs = 12 , LPHCSL, Input = HCSL, LVPECL, LVDS, LVCMOS, Gen 1-6

ZL40292Buffers

Outputs = 20 , LPHCSL, Input = HCSL, LVPECL, LVDS, LVCMOS, Gen 1-6

ZL40294Buffers

Outputs = 20 , LPHCSL, Input = HCSL, LVPECL, LVDS, LVCMOS, Gen 1-6

SY75572LBuffers

Outputs = 2, HCSL , Input = HCSL, LVDS, Gen 1-4

Automotive

Offering the industry’s most reliable and robust clock and oscillator family by leveraging cutting-edge MEMS technology, advanced Phase-locked Loop (PLL) design and semiconductor packaging. Microchip also provides a vast array of automotive-grade clock generators and buffers.

Features

  • AEC-Q100 qualified
  • Auto Grade 1 temp range: −40° to 125°C
  • Smallest form factor packages
  • Highly integrated solutions reducing component complexity and failure points

Applications

  • Advance Driver Assistance Systems (ADAS)
  • Light Detection and Ranging (LiDAR)
  • Autonomous driving
  • Infotainment systems
  • In-vehicle Ethernet
  • Engine control modules
  • Instrument cluster

DSA6xxxMEMS Oscillator

Single Output, LVCMOS, Low Power, Ultra Small Package

DSA10x1 / DSA11x1/2/3/4/5MEMS Oscillator

Single Output, LVCMOS, Low Power, Low Jitter, PCIe

DSA12x1/2/3/4MEMS Oscillator

Single Output, LVCMOS & Differential, Low Jitter, PCIe

DSA11x2/3/4MEMS Oscillator

Single Output, LVCMOS & Differential, Low Power, Low Jitter, PCIe

DSA2xxxClock Generator

2 Outputs, LVCMOS, Differential Low RMS Jitter, Configurable

DSA557- (03/04/05)Clock Generator

2,3,4 Outputs LVDS, HCSL, LVCMOS, 100MHz, PCIe

DSA400Clock Generator

2,3,4 Outputs, LVPECL, LVDS, HCSL, LVCMOS, Low RMS Jitter

DSA612/3Clock Generator

2, 3 Outputs, LVCMOS, Ultra Small Packages

SYA75603/4Buffer

2 and 4 Output, LPHCSL, Low Jitter, Spread Spectrum, PCIe

PLA133-(47/67/97)Buffer

1:4 |1:6 | 1:9 Fanout Options, LVCMOS, Low Additive Jitter

Addtional Resources

Clock & Timing Product Selection Tool

This presentation gives a brief overview of all Microchip Technology Analog and Interface products

TimeFlash Oscillator Field Programming Kit

TimeFlash Programmer allows users to program oscillators to a custom frequency instantly.

Digikey Programming Center
Microchip MEMS Oscillators

Digikey Programming Center can help you create and ship Custom Frequencies in as little as 3 days!
