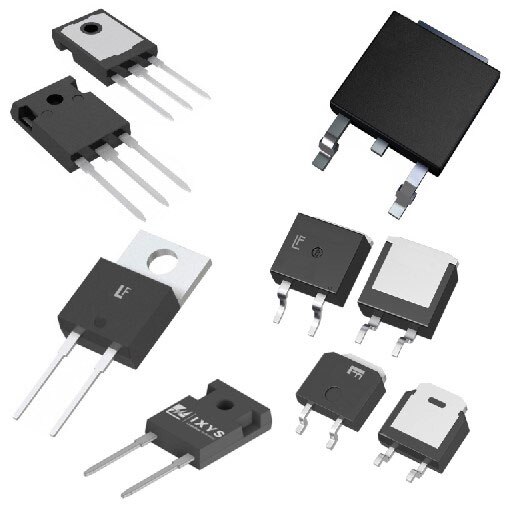

Silicon Carbide (SiC) Schottky Diodes - LSIC2SD Series
Littelfuse's LSIC2SD series are ideal for applications where improvements in efficiency, reliability, and thermal management are desired
Littelfuse's series of silicon carbide (SiC) Schottky diodes has negligible reverse recovery current, high surge capability, and a maximum operating junction temperature of 175°C. These diodes are ideal for applications where improvements in efficiency, reliability, and thermal management are desired. Offerings in three voltages of 650 V, 1200 V, and 1700 V make these SiC Schottky diodes suitable for a wide range of power applications.
Features
- AEC-Q101 qualified
- Positive temperature coefficient for safe operation and ease of paralleling
- 175°C maximum operating junction temperature
- Excellent surge capability
- Extremely fast, temperature-independent switching behavior
- Dramatically reduced switching losses compared to Si bipolar diodes
Applications
- Boost diodes in PFC or DC/DC stages
- Switch-mode power supplies
- Uninterruptible power supplies
- Solar inverters
- Industrial motor drives
- EV charging stations
650 Volt SiC Schottky Diodes
| Image | Manufacturer Part Number | Description | Current - Average Rectified (Io) | Package / Case | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
 |  | LSIC2SD065E20CCA | DIODE SIL CARB 650V 27A TO247AD | 27A | TO-247-3 | 0 - Immediate | $45.56 | View Details |
 | LSIC2SD065D08A | DIODE SIL CARB 650V 8A TO220AC | 8A | 0 - Immediate | $39.93 | View Details | ||
|  | LSIC2SD065D20A | DIODE SIL CARB 650V 20A TO220AC | 20A | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | 612 - Immediate | $70.71 | View Details |
|  | LSIC2SD065C10A | DIODE SIL CARB 650V 27A TO252 | 27A | -55°C ~ 175°C | 0 - Immediate | $46.92 | View Details |
| | LSIC2SD065E16CCA | DIODE SIL CARB 650V 23A TO247AD | 23A | TO-247-3 | 0 - Immediate | $36.32 | View Details |
 | LSIC2SD065A20A | DIODE SIL CARB 650V 45A TO220-2L | 45A | -55°C ~ 175°C | 873 - Immediate 1000 - Factory Stock | $99.77 | View Details | |
|  | LSIC2SD065D10A | DIODE SIL CARBIDE 650V 27A TO263 | 27A | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | 428 - Immediate 2400 - Factory Stock | $49.56 | View Details |
| | LSIC2SD065D06A | DIODE SIL CARB 650V 18.5A TO263 | 18.5A | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | 723 - Immediate | $14.58 | View Details |
| | LSIC2SD065D16A | DIODE SIL CARBIDE 650V 38A TO263 | 38A | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | 819 - Immediate | $66.60 | View Details |
| | LSIC2SD065E12CCA | DIODE SIC 650V 18.5A TO247AD | 18.5A | TO-247-3 | 500 - Immediate | $67.91 | View Details |
1200 Volt SiC Schottky Diodes
| Image | Manufacturer Part Number | Description | Current - Average Rectified (Io) | Supplier Device Package | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|
| | LSIC2SD120A20 | DIODE SIC 1.2KV 54.5A TO220AC | 54.5A | TO-220AC | 0 - Immediate | $72.50 | View Details |
| | LSIC2SD120E40CC | DIODE SIC 1.2KV 54.5A TO247AD | 54.5A | TO-247AD | 0 - Immediate | $140.97 | View Details |
| | LSIC2SD120A10 | DIODE SIL CARB 1200V 28A TO220AC | 28A | TO-220AC | 0 - Immediate | $34.36 | View Details |
| LSIC2SD120A05 | DIODE SIC 1.2KV 17.5A TO220AC | 17.5A | TO-220AC | 0 - Immediate | $17.57 | View Details | |
| | LSIC2SD120D15 | DIODE SIL CARB 1200V 44A TO2632L | 44A | Surface Mount | 0 - Immediate | $95.41 | View Details |
1700 Volt SiC Schottky Diodes
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | LSIC2SD170B25 | DIODE SIL CARB 1700V 70A TO2472 | 450 - Immediate | $171.31 | View Details |
| | LSIC2SD170B50 | DIODE SIL CARB 1700V 135A TO2472 | 0 - Immediate | $616.25 | View Details |
| | LSIC2SD170B10 | DIODE SIL CARB 1700V 31A TO2472 | 85 - Immediate | $89.73 | View Details |
Published: 2021-07-13
