Keystone Electronics

UL Recognized Fuse Clips for Cartridge Style Fuses

Cylindrical glass fuse UL Recognized clips with end stops from Keystone

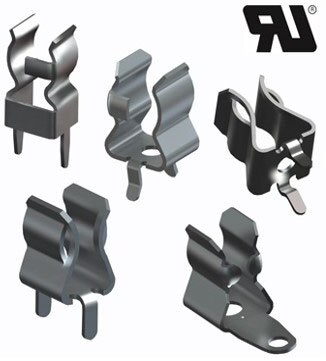

Image of Keystone Electronics' UL Recognized Fuse Clips for Cartridge Style FusesAvailable for use with 1AG through 8AG size cylindrical glass fuses, Keystone Electronics' low-profile, space saving fuse clips can accommodate any product design requiring UL components, including solar protection fuses (SPF). These fuse clips are manufactured from brass with tin or nickel plating to ensure low contact resistance and ease of use on PCBs. Designed to mount easily and retain a stable position during wave soldering, UL Recognized clips are available in snap-in and press-in through-hole mounting configurations as well as rivet and surface mount styles.

Features

  • Snap-in THM clips are designed to mount easily and retain stable position during wave soldering
  • End stops ensure safety and design integrity
  • UL Recognized
  • Low-profile, space saving design
  • Suitable for many environments
  • Clips are suitable for applications from 6 A to 30 A
  • Multiple mounting options
Applications
  • PCBs
  • Mechanical
  • Automation
  • Industrial
  • Solar

UL Recognized Fuse Clips for Cartridge Style Fuses

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
FUSE CLIP FOR 1/4" DIA. FUSE3500FUSE CLIP FOR 1/4" DIA. FUSE7533 - Immediate
50800 - Factory Stock		$3.70View Details
FUSE CLIP CARTRIDGE 15A PCB3510FUSE CLIP CARTRIDGE 15A PCB19036 - Immediate$3.70View Details
FUSE CLIP CARTRIDGE 15A PCB3511FUSE CLIP CARTRIDGE 15A PCB980 - Immediate
2000 - Factory Stock		$5.84View Details
FUSE CLIP CARTRIDGE 15A PCB3512FUSE CLIP CARTRIDGE 15A PCB11690 - Immediate
37600 - Factory Stock		$3.46View Details
FUSE CLIP CARTRIDGE 15A PCB3513FUSE CLIP CARTRIDGE 15A PCB4238 - Immediate
24700 - Factory Stock		$3.46View Details
FUSE CLIP CARTRIDGE 15A PCB3514FUSE CLIP CARTRIDGE 15A PCB2935 - Immediate
20800 - Factory Stock		$4.69View Details
FUSE CLIP CARTRIDGE 15A PCB3515FUSE CLIP CARTRIDGE 15A PCB251 - Immediate
2400 - Factory Stock		$2.96View Details
FUSE CLIP CARTRIDGE 15A PCB3517FUSE CLIP CARTRIDGE 15A PCB71826 - Immediate
106500 - Factory Stock		$2.39View Details
FUSE CLIP CARTRIDGE 15A PCB3518PFUSE CLIP CARTRIDGE 15A PCB41854 - Immediate$2.55View Details
FUSE CLIP CARTRIDGE 15A PCB3519FUSE CLIP CARTRIDGE 15A PCB85813 - Immediate
84400 - Factory Stock		$2.06View Details
Published: 2022-01-27
