SC Series Common Mode Chokes

KEMET’s standard type AC line filters come in a variety of specifications and sizes

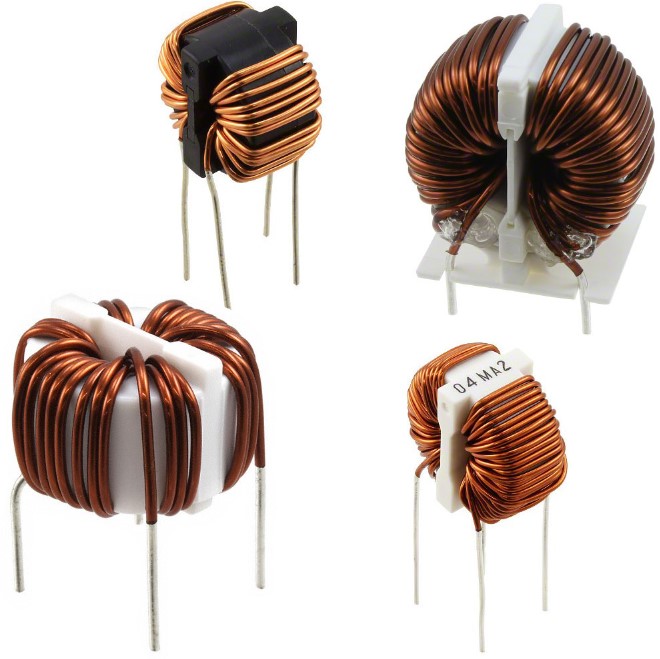

Image of KEMET's SC Series Common Mode ChokesThe KEMET SC coils, standard type AC line filters, are offered in a wide variety of sizes and specifications. These toroidal coils are designed with KEMET's proprietary ferrite cores and are useful in various noise countermeasure fields. Typical applications include audio-visual equipment, office automation equipment, industrial equipment, digital appliances, and power supply devices.

Features and Benefits
  • Toroidal core
  • Proprietary ferrite material and equivalents
  • Large size
  • Large current (up to 40 A)
  • Inductances up to 50 mH
  • Wide variety of sizes and specifications
  • Different form factors available
  • Operating temperature range from -25°C to +105°C or +120°C
  • UL94 V-0 or UL94 V-2 flame retardant base and cap materials

SC Series Common Mode Chokes

ImageManufacturer Part NumberDescriptionDC Resistance (DCR) (Max)Voltage Rating - DCAvailable QuantityPriceView Details
CMC 1MH 5A 2LN THSC-05-100CMC 1MH 5A 2LN TH50mOhm250V127 - Immediate$18.85View Details
CMC 2MH 15A 2LN THSC-15-200CMC 2MH 15A 2LN TH12mOhm250V171 - Immediate$71.21View Details
CMC 9.4MH 2A 2LN THSC-02-090CMC 9.4MH 2A 2LN TH100mOhm250V112 - Immediate$19.18View Details
CMC 1MH 2A 2LN THSC-02-101CMC 1MH 2A 2LN TH110mOhm250V221 - Immediate$20.00View Details
CMC 67UH 15A 2LN THSC-15-01HCMC 67UH 15A 2LN TH2mOhm250V204 - Immediate$23.79View Details
CMC 700UH 1A 3LN THSC-01-S07JCMC 700UH 1A 3LN TH38 mOhm250V237 - Immediate$24.78View Details
CMC 16MH 4A 2LN THSC-04-1600CMC 16MH 4A 2LN TH85mOhm250V290 - Immediate$26.01View Details
CMC 1MH 5A 2LN THSC-05-103CMC 1MH 5A 2LN TH50mOhm250V502 - Immediate$27.33View Details
CMC 650UH 7A 2LN THSC-07-100CMC 650UH 7A 2LN TH14mOhm250V201 - Immediate$30.13View Details
CMC 600UH 5A 2LN THSC-05-E06HCMC 600UH 5A 2LN TH17.5mOhm250V168 - Immediate$31.03View Details
