High CV Hybrid Aluminum Polymer Capacitors - A783 Series

KEMET A783 series +125°C AEC-Q hybrid polymer capacitors withstand significant vibration for use in harsh environments

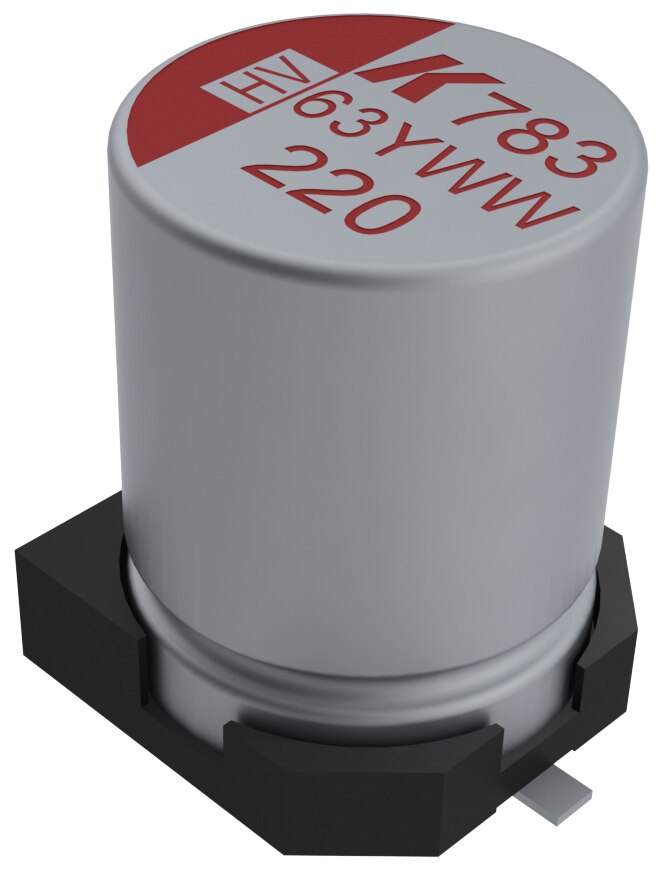

Image of KEMET High CV Hybrid Aluminum Polymer Capacitors - A783 Series Hybrid technology from KEMET, a YAGEO Company, combines the advantages of both traditional aluminum electrolytic capacitors (like self-healing properties and low leakage current) and polymer capacitors [like very low equivalent series resistance (ESR) and high ripple current capability], which is crucial for power supply filtering and smoothing applications. Low ESR is achieved by using a combination of liquid electrolyte and a highly conductive polymer (PEDOT/PSS). Features high vibration resistance options, designed to withstand significant vibration, up to 30 g, making them suitable for applications in mobile, automotive, and aircraft installations.

Typical Specifications
  • Capacitance range: 47 µF to 1000 µF
  • Rated voltage: 25 VDC to 63 VDC
  • Capacitance tolerance: ±20% at 120 Hz/+20°C
  • Operating temperature range: -55°C to +125°C up to 4,000 hours
  • ESR: typically in the range of 11 mOhm to 35 mOhm (at 100 kHz, varies with specific part number and capacitance/voltage)
  • Ripple current: can be several amperes, e.g., 3.5 A at 100 kHz for a 680 µF/25 V part
Benefits
  • Surface mount form factor
  • High capacitance
  • High ripple current
  • Low leakage current
  • High vibration resistance up to 30 g
  • Self-healing behaviors
  • Outstanding electrical performance
  • AEC-Q200 compliance

High CV Hybrid Aluminum Polymer Capacitors - A783 Series

ImageManufacturer Part NumberDescriptionCapacitanceAvailable QuantityPriceView Details
CAP ALU HYBRID 125C 63V 82UFA783MN826M1JLAS025CAP ALU HYBRID 125C 63V 82UF82 µF2000 - Immediate$9.71View Details
CAP ALU HYBRD 125C 63V 120UF VIBA783MS127M1JLAV019CAP ALU HYBRD 125C 63V 120UF VIB120 µF2400 - Immediate$15.39View Details
CAP ALU HYBRID 125C 63V 180UFA783MW187M1JLAS015CAP ALU HYBRID 125C 63V 180UF180 µF1500 - Immediate$13.99View Details
CAP ALU HYBRID 125C 63V 220UFA783MW227M1JLAS013CAP ALU HYBRID 125C 63V 220UF220 µF1270 - Immediate$13.75View Details
CAP ALU HYBRID 125C 25V 330UFA783MN337M1VLAS020CAP ALU HYBRID 125C 25V 330UF330 µF2916 - Immediate$10.13View Details
CAP ALU HYBRID 125C 25V 470UFA783MN477M1ELAS020CAP ALU HYBRID 125C 25V 470UF470 µF2990 - Immediate$10.13View Details
CAP ALU HYBRID 125C 25V 680FA783MS687M1ELAS014CAP ALU HYBRID 125C 25V 680F680 µF0 - Immediate$11.44View Details
CAP ALU HYBRID 125C 35V 680UFA783MW687M1VLAS011CAP ALU HYBRID 125C 35V 680UF680 µF1180 - Immediate$14.74View Details
CAP ALU HYBRID 125C 25V 1,000UFA783MW108M1ELAS011CAP ALU HYBRID 125C 25V 1,000UF1000 µF130 - Immediate$14.74View Details
Published: 2025-07-24
