Solid State Drive (SSD)

Application Overview

The Solid State Drive (SSD) needs a bank of capacitors to "hold-up" the power rail when system power is lost. This energy gives the drive time to flush its caches and write its information tables. Sometimes this is called "The Last Gasp."

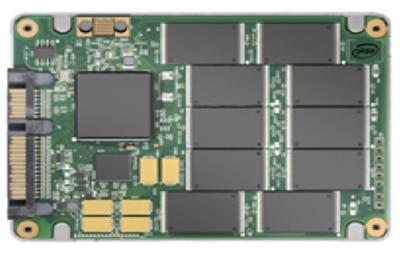

Solid State Drive (SSD)

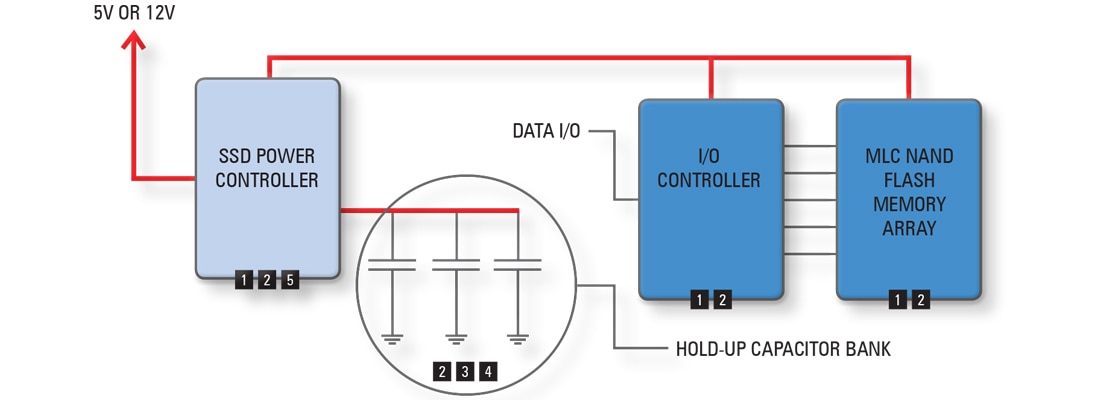

Solid State Drive (SSD) Diagram



1

Ceramic (MLCC)

Ceramic (MLCC)

2

KO-CAP®

KO-CAP

3

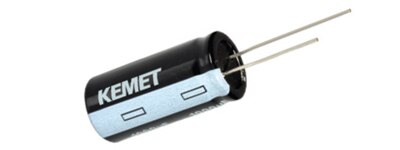

Aluminum Electrolytic (Radial)

Aluminum Electrolytic (Radial)

5

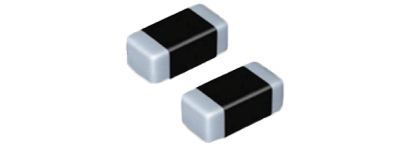

Inductors

Inductors
