JMC Series Board-to-Board Connectors

JST JMC series miniaturized board-to-board connectors are ideal for video, security, and digital cameras along with mobile, smart, portable, and AR/VR devices

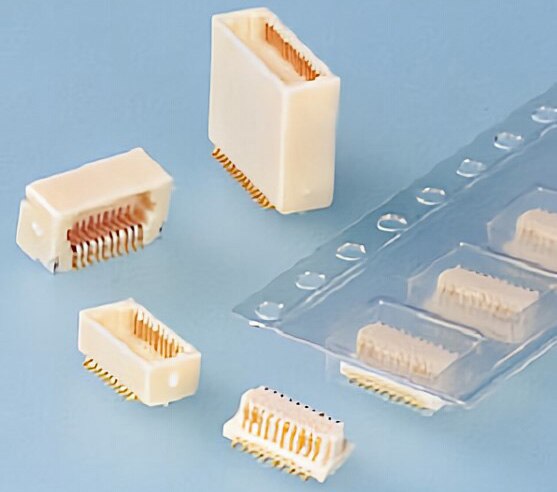

Image of JST JMC Series Board-to-Board ConnectorsJST JMC series versatile SMT board-to-board connectors with a 0.5 mm pitch are ideal for compact designs where saving space is a priority. The plug comes in different orientations, such as vertical and right-angle, as well as in various stacking heights. The receptacle comes at a fixed height but with an optional misalignment absorption feature.

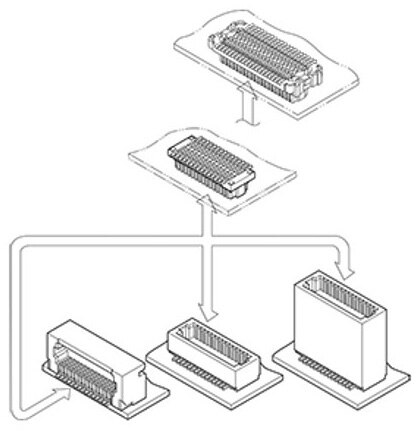

Diagram
    Image of JST JMC Series Diagram
Features
  • Reliable mating performance
  • Miniaturized board-to-board connector
  • SMT mounting style
  • Pin counts ranging from 14-pin to 64-pin
  • Stack heights ranging from 3 mm to 10 mm with the standard type
  • Stack heights range from 4 mm to 11 mm with misalignment absorption type
  • Misalignment absorption function when plug and receptacle are in mated condition
Applications
  • Video cameras
  • Security cameras
  • Digital cameras
  • Mobile devices
  • Smart devices
  • Portable devices
  • AR/VR devices
  • Sensors
  • Vision sensing equipment
  • Machine vision equipment
  • Barcode readers
  • Measurement equipment
  • Audio equipment
  • Microphones
  • Medical devices
  • Monitoring equipment

JMC Series Board-to-Board Connectors

ImageManufacturer Part NumberDescriptionConnector TypeNumber of PositionsAvailable QuantityPriceView Details
JMC RECEPTACLE (SMT/TOP TYPE)20R-JMCS-GAN-TFJMC RECEPTACLE (SMT/TOP TYPE)Receptacle, Center Strip Contacts203200 - Immediate$5.71View Details
JMC PLUG (SMT/SIDE TYPE)20PS-JMCS-GAN-1-A-TFJMC PLUG (SMT/SIDE TYPE)Plug, Outer Shroud Contacts202000 - Immediate$5.84View Details
JMC RECEPTACLE (SMT/TOP TYPE)30R-JMCS-GAN-TFJMC RECEPTACLE (SMT/TOP TYPE)Receptacle, Center Strip Contacts303200 - Immediate$6.99View Details
JMC RECEPTACLE (SMT/TOP TYPE)40R-JMCS-GAN-TFJMC RECEPTACLE (SMT/TOP TYPE)Receptacle, Center Strip Contacts403200 - Immediate$7.98View Details
JMC PLUG (SMT/TOP TYPE)40P5.0-JMCS-GAN-A-TFJMC PLUG (SMT/TOP TYPE)Plug, Outer Shroud Contacts402000 - Immediate$8.50View Details
JMC RECEPTACLE (SMT/TOP/ ABSORPT20RF-JMCS-GAN-1-TFJMC RECEPTACLE (SMT/TOP/ ABSORPTReceptacle, Center Strip Contacts201600 - Immediate$8.74View Details
JMC PLUG (SMT/SIDE TYPE)40PS-JMCS-GAN-1-A-TFJMC PLUG (SMT/SIDE TYPE)Plug, Outer Shroud Contacts402000 - Immediate$9.17View Details
JMC RECEPTACLE (SMT/TOP/ ABSORPT30RF-JMCS-GAN-1-TFJMC RECEPTACLE (SMT/TOP/ ABSORPTReceptacle, Center Strip Contacts301600 - Immediate$11.70View Details
JMC PLUG (SMT/SIDE TYPE)60PS-JMCS-GAN-1-A-TFJMC PLUG (SMT/SIDE TYPE)Plug, Outer Shroud Contacts602000 - Immediate$12.01View Details
PLUG (SMT/TOP TYPE)20P6.0-JMCS-GAN-A-TFPLUG (SMT/TOP TYPE)Plug, Outer Shroud Contacts201434 - Immediate$13.55View Details
JMC RECEPTACLE (SMT/TOP/ ABSORPT60RF-JMCS-GAN-1-TFJMC RECEPTACLE (SMT/TOP/ ABSORPTReceptacle, Center Strip Contacts601600 - Immediate$17.54View Details
CONN RCPT 24POS SMD GOLD24R-JMCS-GAN-TFCONN RCPT 24POS SMD GOLDReceptacle, Center Strip Contacts245272 - Immediate$10.43View Details
