SNR Series 2 mm Pitch, Single Row, Multi-pole, High Box - Potting Style Connector

J.A.M.'s highly reliable SNR series has a very high profile for easy access on a crowded printed circuit board

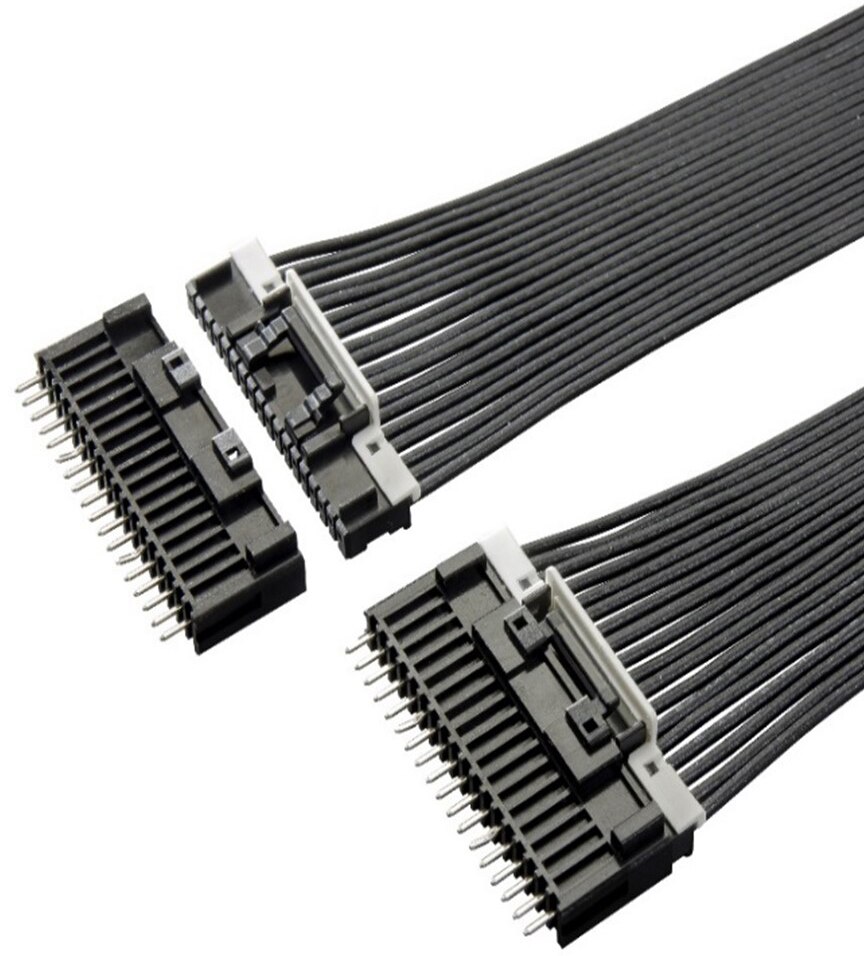

Image of JAM's SNR Series 2 mm pitch High Box Potting Connector Japan Automatic Machine (J.A.M.) created the SNR series 2 mm pitch high box connector system with the potting in mind. The thin design has a superior double-arm locking system, and the guide ribs prevent misinsertion. Users can select the guide post locations, and the contacts have a current rating of 3 A with a voltage rating of 250 VAC/DC. Applicable wire sizes of AWG 22 to AWG 28 are available, and the housing is made from PBT GF with a UL94V-0 flammability rating. The SNR series is RoHS compliant.

Features
  • 2.0 mm pitch connector with 3 A current rating
  • Slim profile design: stock available in 2, 3, 5, and 6 poles; higher pole counts available upon request
  • Rated voltage: 250 V AC/DC
  • Applicable wire size: AWG 22 to AWG 28
  • Available in straight type
  • Wafer/header with polarization boss
  • Potting style available
  • Terminal retainer option available
  • Double arm inner lock system enables easy mating and un-mating
Applications
  • Environmental applications
  • Appliances
  • Consumer electronics

Hand Crimp Tool

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CRIMP TOOL FOR 720462-2MA-CPHT-720462LWCRIMP TOOL FOR 720462-2MA-CP10 - Immediate$3,407.98View Details

200 mm Harness

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
WIRE JUMPER FOR SNR CONNECTOR 247204622MAC021-200WIRE JUMPER FOR SNR CONNECTOR 241750 - Immediate$6.49View Details

Terminal

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
LOOSE TERMINAL FOR SNR CONNECTOR720462-2MAC-CPLOOSE TERMINAL FOR SNR CONNECTOR13354 - Immediate$0.82View Details

Housing

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
2 MM W TO B CONNECTOR 2P HOUSINGSNR20D-02HG2 MM W TO B CONNECTOR 2P HOUSING1000 - Immediate$1.40View Details
2 MM W TO B CONNECTOR 3P HOUSINGSNR20D-03HG2 MM W TO B CONNECTOR 3P HOUSING1000 - Immediate$1.40View Details
2 MM W TO B CONNECTOR 5P HOUSINGSNR20-05HGA2 MM W TO B CONNECTOR 5P HOUSING918 - Immediate$1.56View Details

Wafer

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
2 MM W TO B CONNECTOR 2P WAFER PSNR20D-02WPB2 MM W TO B CONNECTOR 2P WAFER P498 - Immediate$2.05View Details
2 MM W TO B CONNECTOR 3P WAFER PSNR20D-03WPB2 MM W TO B CONNECTOR 3P WAFER P500 - Immediate$2.13View Details
2 MM W TO B CONNECTOR 5P WAFER PSNR20-05WPB2 MM W TO B CONNECTOR 5P WAFER P205 - Immediate$2.79View Details

Retainer

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
2 MM W TO B CONNECTOR 5P RETAINESNR20-05S2 MM W TO B CONNECTOR 5P RETAINE900 - Immediate$1.15View Details
