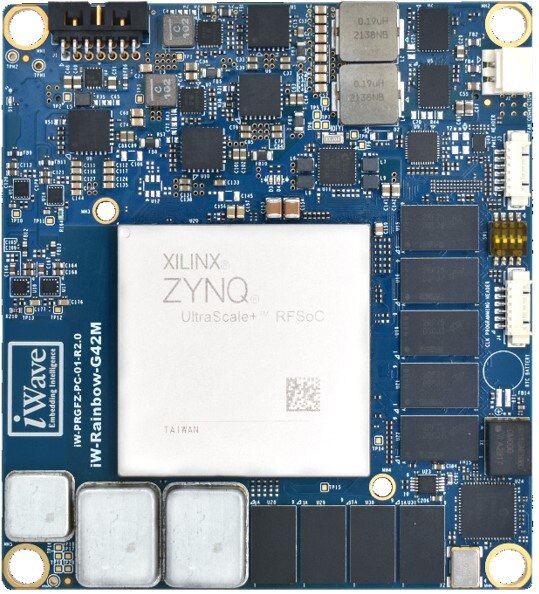

Zynq® UltraScale+™ RFSoC SOM

iWave's RFSoC SOM has a high RF channel count with 16 channel RF-DACs at 10 GSPS and 16 channel RF-ADCs at 2.5 GSPS.

The SOM features the ZU49DR and is compatible with the ZU39 and ZU29. It offers a multi-element processing system, including an FPGA, Arm® Cortex®-A53 processor, a real-time dual-core Arm Cortex-R5, and high-speed ADC and DAC channels, enabling it to acquire, process, and act on RF signals.

Related Articles

• System on Module Based on Xilinx Kintex® UltraScale+™
• SmartNIC Storage & Network Accelerator Card for Servers
• Zynq UltraScale+ MPSoC System on Modules for LiDAR
• Redefining radio telescope digital backend receivers with RFSoC technology

Features and Benefits

• Processing system (PS): Quad Arm Cortex-A53 @ 1.3 GHz, Dual Cortex-R5F @ 533 MHz
• Programming logic (PL): Up to 930 logic cells and 425K LUTs
• PL GTY high-speed transceivers x 16 @ 28.21 Gbps
• Memory: 64-bit, 8 GB DDR4 RAM with ECC for PS (upgradable up to 34 GB)
• 64-bit, 8 GB DDR4 RAM for PL
• 32 GB eMMC Flash (upgradable)
• 256 MB QSPI Flash
• Xilinx Kintex UltraScale+ FPGA with B2104 package
• Dual 4 GB FPGA-DDR4 with ECC (64-bit + 8-bit)
• Quad-core Arm Cortex-A53 MPCore up to 1.3 GHz
• Dual-core Arm Cortex-R5F MPCore up to 533 MHz
• Integrated ultra-low-noise programmable RF PLL
• Integrated SyncE and PTP network synchronization
• Dual 400-pin board-to-board connectors with
• 16 ADC channels up to 2.5 GSPS
• 16 DAC channels up to 10 GSPS
• 16 GTY transceivers up to 28.21 Gbps
• Up to 192 FPGA IOs
• 64-bit PL DDR4
• 64-bit PS DDR with ECC
• Four channels of GTR transceivers up to 6 Gbps
• Dual 10/100/1000 Mbps Ethernet

Applications

• 5G and LTE wireless satellite communication
• Aerospace and Defense
