            PSOC™ Control C3 Microcontrollers
                    Infineon Technologies PSOC Control C3 microcontrollers are the next generation of industrial MCUs


Image of Infineon PSOC™ Control C3 Microcontrollers The PSOC Control family microcontrollers from Infineon are the next generation of MCUs developed specifically for motor control and power conversion applications. This high-performance Arm® Cortex®-M33 microcontroller family enables designers to deliver the market innovations customers expect from their next-generation devices.

The PSOC Control C3 enables real-time control of motor and power conversion systems that need to respond to real-time events with minimal delay and low utilization. It utilizes fast analog and digital peripherals to support wide-bandgap (WBG) systems and has integrated features to reduce system BOM costs. The PSOC Control C3 MCUs are PSA Certified™ Level 2 for advanced security and safety and come with ready-to-use code examples and development tools supported in the ModusToolbox™ software suite. This latest family of microcontrollers will increase performance and efficiency for next-generation products.

Advanced features of the PSOC Control microcontroller include the high-performance ADC and an integrated coordinate rotation digital computer (CORDIC) accelerator. With true synchronous idle sampling of up to 16 analog signals from the single-core ADC, up to 25% faster results are possible without any sampling jitter. The CORDIC accelerator can off-load CPU and increase computational power for real-time critical tasks such as field-oriented motor control algorithms. In addition, the programmable timer/counter pulse-width modulator (TCPWM) has a motion interface (MOTIF) block that can be used to communicate motor control signals. This unique combination of power and performance will bring the next generation of industrial solutions to market.

To enable a variety of applications with optimized solutions, Microchip offers the PSOC Control C3M product line specific to motor control applications, with Entry (best value) and Main Line (more features, higher performance) families of products.

Resources

Download the free ModusToolbox software
Block Diagram

Learn more about ModusToolbox Motor Suite
Application Chart

Features

PSOC Control C3 entry line

Arm Cortex-M33 100 MHz
Up to 256 kB ECC Flash and 64 kB SRAM, 16 kB I-Cache
12-bit 6 Msps SAR ADC up to 18-ch
TCPWM: Low power modes – deep sleep (<10 µA), sleep, hibernate (<1 µA)
CORDIC accelerator
Security: PSA L2 certified
Safety: Class B and SIL 2 compliant
Packages: QFP-48, QFN-48, QFP-64, and QFN-64

PSOC Control C3 main line

Arm Cortex-M33 180 MHz
Up to 256 kB ECC Flash and 64 kB SRAM, 16 kB I-Cache
12-bit 12-Msps SAR ADC up to 18-ch
Timer, counter, and PWM (TCPWM): Low power modes, deep sleep (<10 µA), sleep, hibernate (<1 µA)
CORDIC accelerator
>100 ps high-resolution PWM
Security: PSA L2 certified
Safety: Class B and SIL 2 compliant
Packages: QFP-48, QFN-48, QFP-64, QFN-64, and QFP-80

Applications

Smart home and home appliances

Power and gardening tools
Lawn mower robots
Home robots
Residential aircon ODU
Large and medium home appliance drives

Industrial motor control

General purpose drives
Servo drives
Commercial aircon/HVAC
Robotics

Server and Telecom

Telecom PSUs
Server PSUs
Workstation PSUs

Renewables

PV inverters
LEV
EV charging

Software Enablement

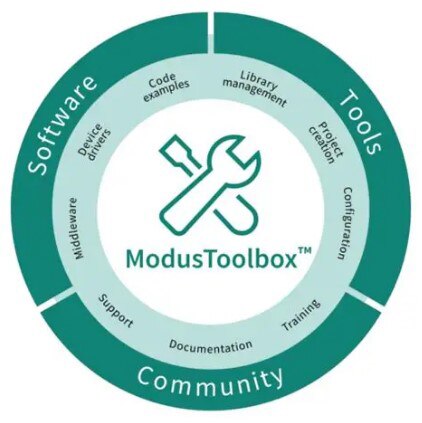

PSOC Control is supported in ModusToolbox Software, a modern, extensible development ecosystem provided as a collection of development tools, libraries, and embedded runtime assets. The ModusToolbox Industrial technology pack installs the ModusToolbox Motor Suite, a comprehensive software solution designed to simplify and accelerate the development of motor control systems. With its intuitive interface and robust features, the Motor Suite provides a seamless experience for engineers and developers to design, test, and optimize motor control applications.

Updated: 2025-05-20
