Industry-leading Multicopter Solutions

Multicopter Solutions

Commercial multicopters have come a long way in recent years, evolving from toys to coastal and event mapping sophisticated programmable aircrafts. This provides challenges and opportunities for multicopter manufacturers.

Infineon provides cost effective system solutions for this rapidly growing market while ensuring the end user mandates excellent user experience, such as light weight, longer flying time, safety or reliability.

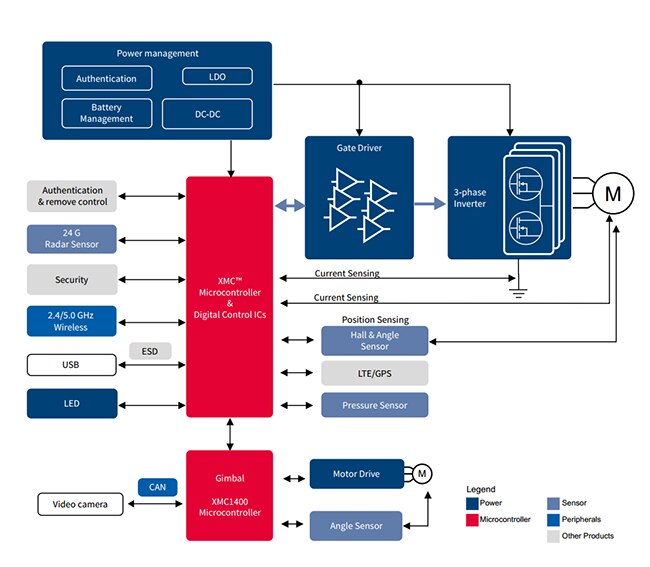

Multicopter Solutions Diagram

Benefits Offer
Development effort and cost reduction
  • With no or little experience in motor control, customers can implement the IFX motor control IC and take flight
  • Project development can be reduced up to 30% by using reference designs and the DAVE™ platform for microcontroller programming
Authentication
  • Infineon’s solutions enable authentication of components connected to the system
  • Guaranteed safety and protection of the product, avoiding liability
Ease of precision control for flight and data
  • Through the benefits of multifunction sensors and algorithm, the user can experience an easy, stable, smooth and accurate control of the multicopter
  • Closed loop control of gimbal motor, sensors enhanced camera stability and data transmission when recording video
Lighter
  • The highly efficient components and effective flight control can make the multicopter lighter, which results in longer flight time
Broader portfolio
  • Infineon provides all the necessary critical semiconductor components for multicopters



Interactive 3d Model

Larix Sphere by Infineon Technologies on Sketchfab



The heart of the multicopter is an Infineon XMC4500 Microcontroller.

XMC4500

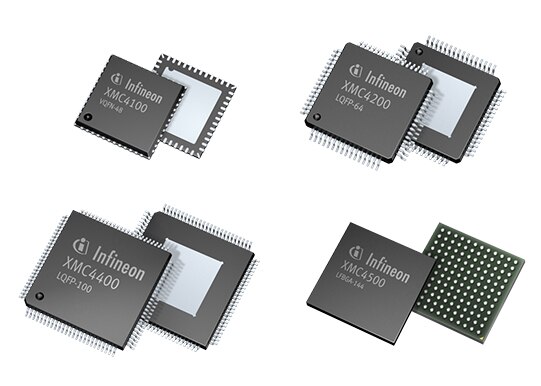

The XMC4500 devices are members of the XMC4000 Family of microcontrollers based on the ARM Cortex-M4 processor core. The XMC4000 is a family of high-performance and energy-efficient microcontrollers optimized for Industrial Connectivity, Industrial, Control, Power Conversion, Sense & Control.

Part Number Description Datasheet
XMC4500-F100K1024 AC IC MCU 32BIT 1MB FLASH 100LQFP XMC4500-F100K102 Datasheet Link XMC4500-F100K102 Product Page
XMC4500-F144K1024 AC IC MCU 32BIT 1MB FLASH 144LQFP XMC4500-F144K1024 Datasheet Link XMC4500-F144K1024 Product Page
XMC4500-E144X1024 AC IC MCU 32BIT 1MB FLASH 144LFBGA XMC4500-E144X1024 AC Datasheet Link XMC4500-E144X1024 AC Product Page

3D Magnetic Sensor with low power consumption and high magnetic accuracy for Multicopter Applications

The new 3D magnetic sensor TLV493D-A1B6 offers accurate three-dimensional sensing with extremely low power consumption in a small 6-pin package. With magnetic field detection in the x, y, and z-directions, the sensor reliably measures three-dimensional, linear and rotation movements. Applications include joysticks, control elements, multifunction knops, anti-tampering for e-meters, and any other application that requires accurate 3D measurements in combination with low power consumption.

3D Magnetic sensor 2go KIT

3D Magnetic sensor 2go KIT

The 3D Magnetic Sensor 2GO is a new budget-priced evaluation board equipped with a magnetic sensor for three-dimensional measurement combined with an ARM® Cortex™-M0 CPU. The 3D Magnetic Sensor 2GO has a complete set of on-board devices, including an on-board debugger. Build your own application and gadget with the 3D Magnetic Sensor 2GO.

Components on the kit:

  • TLV493D-A1B6 (three-dimensional magnetic sensor)
  • XMC1100 (ARM® Cortex™-M0 based)
  • On-board J-Link Lite Debugger (Realized with XMC4200 Microcontroller)
  • Power over USB (Micro USB), ESD and reverse current protection
  • GUI  for free download
    • v1.0 for 2GO Kits with PCB marking: 3D magnetic sensor 2Go-V1
    • v2.0 for 2GO Kits with PCB marking: 3D magnetic sensor 2Go-V2
Part Number Description Datasheet
TLV493D-A1B6 3D magnetic sensor TLV493DA1B6HTSA2 Datasheet Link TLV493DA1B6HTSA2 Product Page
TLV493DA1B62GOKITTOBO1 3D magnetic sensor 2GO Kit TLV493DA1B62GOKITTOBO1 Datasheet Link TLV493DA1B62GOKITTOBO1 Product Page

TLE5012B E1000

The TLE5012B is a 360° angle sensor that detects the orientation of a magnetic field. This is achieved by measuring sine and cosine angle components with monolithic integrated Giant Magneto Resistance (iGMR) elements. Highly precise angle values are determined over a wide temperature range and a long lifetime using an internal auto-calibration algorithm.

TLE5012B

Features

  • Giant Magneto Resistance (GMR)-based principle
  • Integrated magnetic field sensing for angle measurement
  • Fully calibrated 0 - 360° angle measurement with revolution counter and angle speed measurement
  • Two separate highly accurate single-bit SD-ADC
  • 15-bit representation of absolute angle value on the output (resolution of 0.01°)
  • 16-bit representation of sine / cosine values on the interface
  • Max. 1.0° angle error over lifetime and temperature range with activated auto-calibration
Part Number Description Datasheet
TLE5012B E1000 SENSOR POSITION ANGLE GMR 8DSO TLE5012B E1000 Datasheet Link TLE5012B E1000 Product Page
