600 V CoolMOS™ CFD7 MOSFET Family

Infineon's high voltage superjunction MOSFET for resonant high power applications

Image of Infineon's 600 V CoolMOS™ CFD7 MOSFET Family Infineon’s CoolMOS is a revolutionary technology for high voltage power MOSFETs. The 600 V CoolMOS CFD7 family is Infineon’s latest high voltage superjunction MOSFET with integrated fast body diode. These MOSFETs are ideal choices for resonant topologies in high power SMPS applications such as telecom, servers, and EV charging stations.

The CoolMOS CFD7 family combines the advantages of a fast switching technology with the best-in-class commutation ruggedness. This provides up to 69% lower reverse recovery charge (Qrr) making the CFD7 family the most robust high voltage superjunction MOSFET. Because of the reduced gate charge (Qg), best-in-class reverse recovery charge (Qrr), and improved turn-off behavior, the CoolMOS CFD7 family can achieve up to 1.45 percent increased efficiency over competitive solutions. The CoolMOS CFD7 technology also meets the highest efficiency and reliability standards. Altogether, CoolMOS CFD7 makes resonant switching topologies more efficient, more reliable, lighter, and cooler.

Features
  • Ultra-fast body diode
  • Best-in-class reverse recovery charge (Qrr)
  • Improved reverse diode dv/dt and diF/dt ruggedness
  • Lowest FOM RDS(ON)*Qg and RDS(ON) EOSS
  • Best-in-class RDS(ON)/package combinations
Benefits
  • Best-in-class hard commutation ruggedness
  • Highest reliability for resonant topologies
  • Highest efficiency in target applications
  • Enabling increased power density solutions

Block Diagram

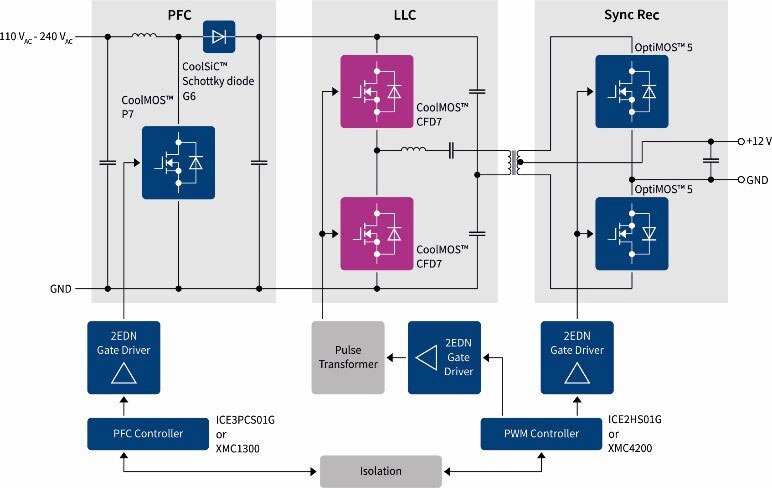

LLC SMPS

Image of Infineon's LLC SMPS Block Diagram

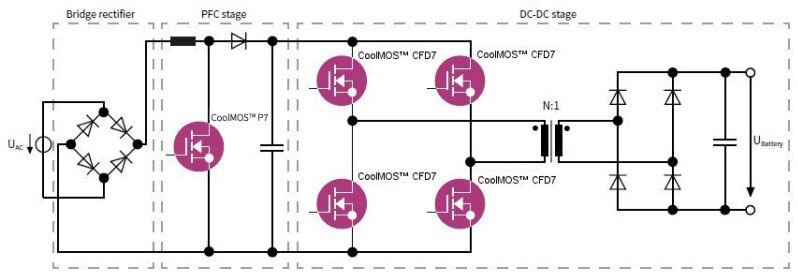

ZVS Based Power Converter

Image of Infineon's ZVS based power converter Block Diagram

600 V CoolMOS CFD7 MOSFET Family

ImageManufacturer Part NumberDescriptionDrive Voltage (Max Rds On, Min Rds On)Vgs(th) (Max) @ IdGate Charge (Qg) (Max) @ VgsAvailable QuantityPriceView Details
MOSFET N-CH 600V 9A TO252-3IPD60R280CFD7ATMA1MOSFET N-CH 600V 9A TO252-310V4.5V @ 180µA18 nC @ 10 V4371 - Immediate$10.84View Details
MOSFET N-CH 600V 14A TO252-3IPD60R170CFD7ATMA1MOSFET N-CH 600V 14A TO252-310V4.5V @ 300µA28 nC @ 10 V81 - Immediate$23.16View Details
MOSFET N-CH 600V 14A 4VSONIPL60R185CFD7AUMA1MOSFET N-CH 600V 14A 4VSON10V4.5V @ 300µA28 nC @ 10 V2263 - Immediate$25.04View Details
MOSFET N-CH 600V 33A 4VSONIPL60R075CFD7AUMA1MOSFET N-CH 600V 33A 4VSON10V4.5V @ 760µA67 nC @ 10 V5078 - Immediate$33.75View Details
MOSFET N-CH 650V 9A TO220-3IPP60R280CFD7XKSA1MOSFET N-CH 650V 9A TO220-310V4.5V @ 180µA18 nC @ 10 V288 - Immediate$22.83View Details
MOSFET N-CH 650V 14A TO220-3IPP60R170CFD7XKSA1MOSFET N-CH 650V 14A TO220-310V4.5V @ 300µA28 nC @ 10 V97 - Immediate$23.48View Details
MOSFET N-CH 650V 31A TO220-3IPP60R070CFD7XKSA1MOSFET N-CH 650V 31A TO220-310V4.5V @ 760µA67 nC @ 10 V17 - Immediate$47.62View Details
MOSFET N-CH 650V 6A TO220IPA60R280CFD7XKSA1MOSFET N-CH 650V 6A TO22010V4.5V @ 180µA18 nC @ 10 V502 - Immediate$22.83View Details
MOSFET N-CH 650V 8A TO220IPA60R170CFD7XKSA1MOSFET N-CH 650V 8A TO22010V4.5V @ 300µA28 nC @ 10 V152 - Immediate$27.10View Details
MOSFET N-CH 650V 14A TO247-3IPW60R170CFD7XKSA1MOSFET N-CH 650V 14A TO247-310V4.5V @ 300µA28 nC @ 10 V0 - Immediate$33.67View Details
MOSFET N-CH 650V 31A TO247-3IPW60R070CFD7XKSA1MOSFET N-CH 650V 31A TO247-310V4.5V @ 760µA67 nC @ 10 V67 - Immediate$51.32View Details
