Hirose Electric Co Ltd

ZH05 Series Wire-to-Board Connectors

Hirose compact 0.5 mm size, 2 mm pitch wire-to-board connector includes short-circuit and electric shock prevention features

Image of Hirose ZH05 Series Wire-to-Board ConnectorsHirose ZH05 series compact 0.5 mm size, 2 mm pitch wire-to-board connectors offer short-circuit and electric shock prevention features. They offer high heat resistance up to +125°C and enhanced safety, making them suitable for automotive power applications such as battery packs and motor drives.

Features
  • Compact and narrow width connector: 0.5 mm terminal tab size, 2 mm pitch
  • Short-circuit/electric shock prevention design contributes to enhanced safety
  • High heat resistance: +125°C
  • High vibration resistance
  • Potting resin blockage prevention design
  • Two types of mating keys: A and B
Applications
  • Automotive:
    • Inverters
    • Converters
    • Batteries
    • ECU
    • Onboard chargers
  • Storage batteries
  • Storage battery modules

ZH05 Series Header Sockets

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
Interconnect MiscZH05-24DS-2H(A)Interconnect Misc193 - Immediate$20.74View Details
Interconnect MiscZH05-24DS-2H(B)Interconnect Misc249 - Immediate$21.90View Details
Interconnect MiscZH05-32DS-2H(A)Interconnect Misc0 - Immediate$25.44View Details
Interconnect MiscZH05-32DS-2H(B)Interconnect Misc250 - Immediate$26.51View Details

ZH05 Series Headers Male Pins

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
RECEPTACLE, 6POS., HIGH-VOLTAGEZG05HV-6P-3.3HRECEPTACLE, 6POS., HIGH-VOLTAGE345 - Immediate$15.81View Details
RECEPTACLE, 6POS., HIGH-VOLTAGEZG05HV-6P-3.3H(A)RECEPTACLE, 6POS., HIGH-VOLTAGE205 - Immediate$16.71View Details

ZH05 Series Housings

ImageManufacturer Part NumberDescriptionContact TypeNumber of PositionsAvailable QuantityPriceView Details
Interconnect MiscZH05-24DP-HU(B)Interconnect MiscMale Pin241499 - Immediate$7.24View Details
Interconnect MiscZH05-24DP-HU(A)Interconnect MiscMale Pin241491 - Immediate$7.90View Details
Interconnect MiscZH05-32DP-HU(B)Interconnect MiscMale Pin32499 - Immediate$10.04View Details
PLUG HOUSING, 6POS., HIGH-VOLTAGZG05HV-6S-HU(A)PLUG HOUSING, 6POS., HIGH-VOLTAGFemale Socket6938 - Immediate$7.08View Details
Interconnect MiscZH05-32DP-HU(A)Interconnect MiscMale Pin32499 - Immediate$8.07View Details
PLUG HOUSING, 6POS., HIGH-VOLTAGZG05HV-6S-HUPLUG HOUSING, 6POS., HIGH-VOLTAGFemale Socket61017 - Immediate$7.08View Details

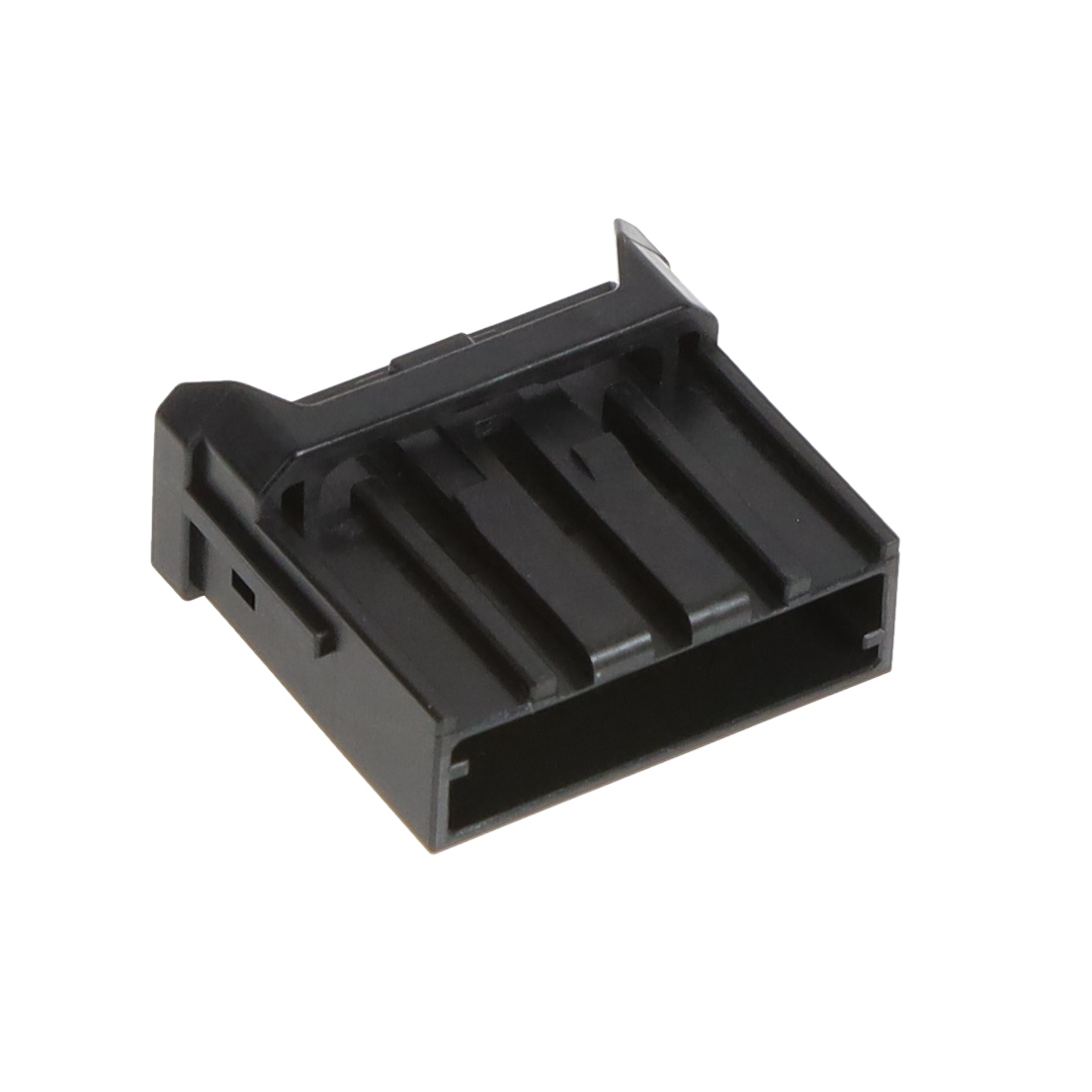

INTERCONNECT RECTANGULARZH05-20DP-HU(A)INTERCONNECT RECTANGULARMale Pin20249 - Immediate$7.66View Details

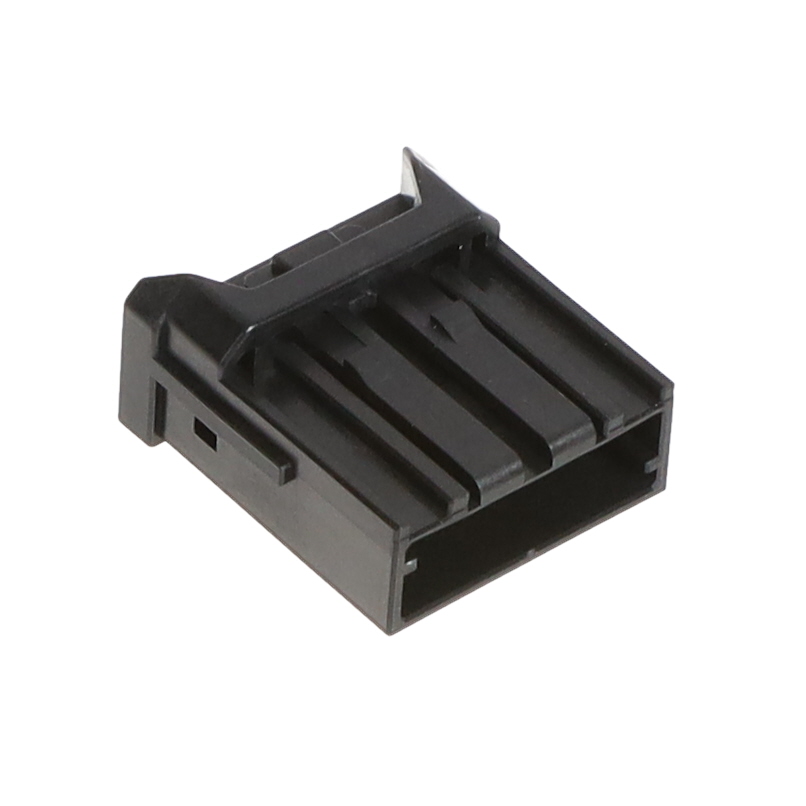

INTERCONNECT RECTANGULARZH05-16DP-HU(A)INTERCONNECT RECTANGULARMale Pin16499 - Immediate$9.47View Details

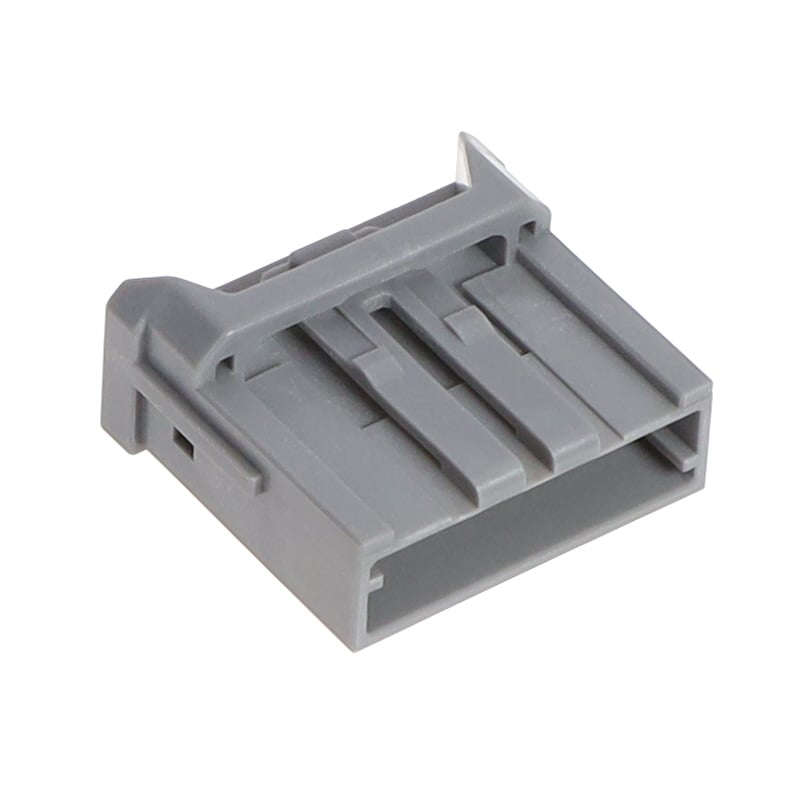

INTERCONNECT RECTANGULARZH05-20DP-HU(B)INTERCONNECT RECTANGULARMale Pin20499 - Immediate$9.47View Details
INTERCONNECT RECTANGULARZH05-16DP-HU(B)INTERCONNECT RECTANGULARMale Pin160 - Immediate$9.47View Details

ZH05 Series Retainers

ImageManufacturer Part NumberDescriptionNumber of PositionsAvailable QuantityPriceView Details
Interconnect MiscZH05-24DP-RInterconnect Misc246946 - Immediate$1.15View Details
Interconnect MiscZH05-32DP-RInterconnect Misc3211999 - Immediate$1.15View Details
RETAINER, 6POS., HIGH-VOLTAGE WIZG05HV-6S-RRETAINER, 6POS., HIGH-VOLTAGE WI65880 - Immediate$3.38View Details

ZH05 Series Contacts

ImageManufacturer Part NumberDescriptionPin or SocketAvailable QuantityPriceView Details
CRIMP CONTACT, HIGH-VOLTAGE WIREZG05A-2224SCFCRIMP CONTACT, HIGH-VOLTAGE WIRESocket689 - Immediate$0.82View Details
INTERCONNECT RECTANGULARZH05-2224PCFINTERCONNECT RECTANGULARPin71444 - Immediate$0.82View Details

ZH05 Series Tooling

ImageManufacturer Part NumberDescriptionTool MethodTool TypeAvailable QuantityPriceView Details
ZH05 HAND TOOLHT802/ZH05-2224PZH05 HAND TOOLManualHand Crimper0 - Immediate$8,275.55View Details
Published: 2024-11-20
