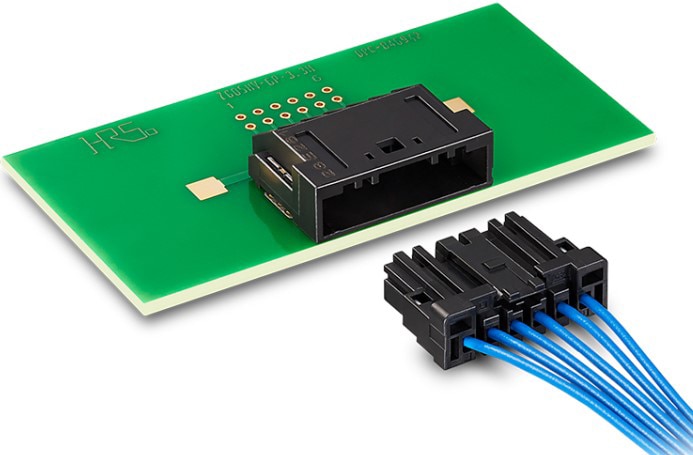

ZG05HV Series Wire-to-Board Connector
Hirose ZG05HV high-voltage wire-to-board connectors offer excellent performance in compact, high-heat environments
Hirose ZG05HV connectors are engineered for high-voltage applications. These wire-to-board connectors combine a robust design with advanced safety features. Rated for 1000 VAC/DC and withstanding 3000 V, they offer superior performance in compact, high-heat environments up to +125°C, making them ideal for demanding industrial uses.
Resources
Features
- Rated for 1000 VAC/DC with a high withstanding voltage of 3000 V to excel in power-intensive environments
- Safety-first electric shock prevention design provides electric shock protection, thereby enhancing assembly safety
- Capable of enduring extreme conditions, offering high heat resistance up to +125°C and robust vibration resilience
- Compact design optimizes space while maintaining necessary electrical clearance, blending high performance with efficiency
- High vibration resistance with a unique contact design
Applications
- Automotive battery management
- Power conversion systems
- Industrial equipment
ZG05HV Series Wire-to-Board Connector
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | ZG05HV-6P-3.3H | RECEPTACLE, 6POS., HIGH-VOLTAGE | 345 - Immediate | $15.81 | View Details |
| | ZG05HV-6P-3.3H(A) | RECEPTACLE, 6POS., HIGH-VOLTAGE | 205 - Immediate | $16.71 | View Details |
|  | ZG05HV-6S-HU | PLUG HOUSING, 6POS., HIGH-VOLTAG | 1017 - Immediate | $7.08 | View Details |
| | ZG05HV-6S-HU(A) | PLUG HOUSING, 6POS., HIGH-VOLTAG | 938 - Immediate | $7.08 | View Details |
|  | ZG05HV-6S-R | RETAINER, 6POS., HIGH-VOLTAGE WI | 5880 - Immediate | $3.38 | View Details |
|  | ZG05A-2224SCF | CRIMP CONTACT, HIGH-VOLTAGE WIRE | 689 - Immediate | $0.82 | View Details |
