KW30 Series Wire-to-Board Connectors
Hirose’s miniature single-row connectors combine a two-point contact design with a center lock for robust operation

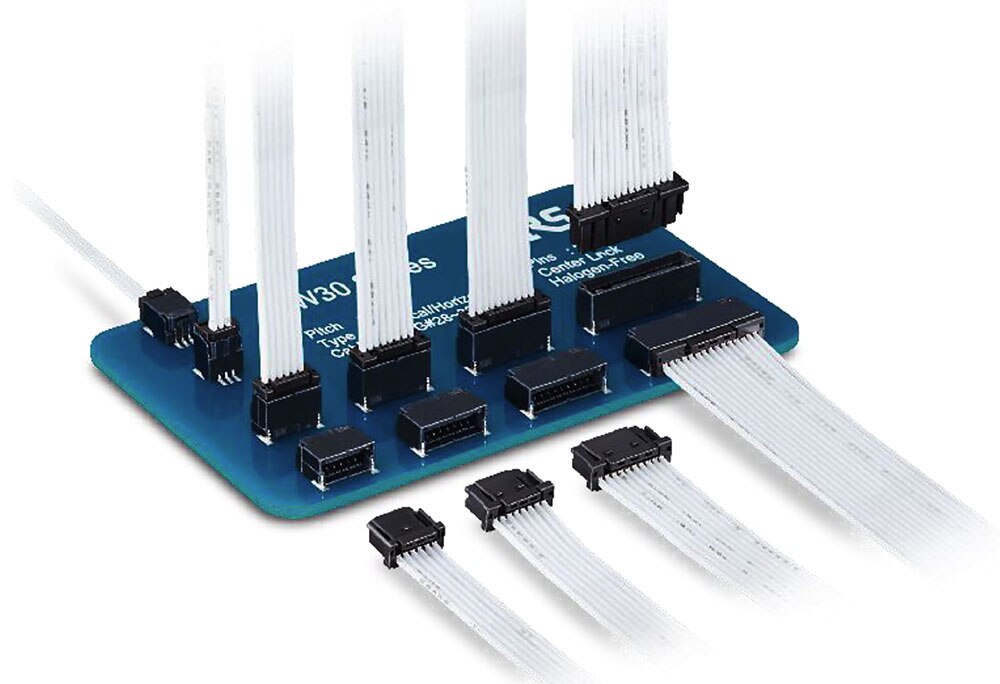

Hirose’s SignalBee™ wire-to-board connector line expands with an ultra-reliable 1 mm pitch version. Available in two to eight positions, the KW30 series miniature single-row connectors offer enhanced reliability via a two-point contact design combined with crimp contact deflection prevention. In addition, a rib design provides a secure fit when mating the plug and receptacle, producing high vibration resistance. A center lock prevents incomplete mating, misinsertion, and lock damage.
Benefits
- Miniature 1 mm pitch design
- High vibration resistance
- Enhanced reliability via a two-point contact design
- Crimp contact deflection prevention
- Rib design provides a secure fit when mating
- Center lock prevents incomplete mating, misinsertion, and lock damage
Specifications
- Available in two to eight positions
- Offered in several variations, including straight or right angle interface types
- 28 AWG, 30 AWG, or 32 AWG
- Current rating up to 3.0 A
- Operating temperature range: -55°C to +105°C
- Voltage rating: 100 VAC/DC
Applications
- FA controllers
- Home appliances/white goods
- Industrial robots
- Medical devices
- Office equipment
- Servo motors
KW30 Series Headers, Male Pins
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | KW30-15S-1V(800) | CONN HEADER, STRAIGHT, 1MM PITCH | 194 - Immediate | $14.21 | View Details |
|  | KW30-3S-1V(800) | CONN HDR 1.0MM SMD 3POS VERT | 60 - Immediate | $5.83 | View Details |
|  | KW30-8S-1V(800) | CONN HDR 1.0MM SMD 8POS VERT | 260 - Immediate | $9.44 | View Details |
|  | KW30-6S-1H(800) | CONN HEADER RECEPTACLE, RT ANGLE | 1594 - Immediate | $7.23 | View Details |
|  | KW30-2S-2V(800) | CONN HDR 1.0MM SMD 2POS VERT | 0 - Immediate | $5.26 | View Details |
|  | KW30-2S-2H(800) | CONN HDR 1.0MM SMD 2POS R/A | 202 - Immediate | $4.52 | View Details |
|  | KW30-10S-1V(800) | CONN HDR 1.0MM SMD 10POS VERT | 322 - Immediate | $10.84 | View Details |
|  | KW30-15S-1H(800) | CONN HEADER, RT ANGLE, 1MM PITCH | 2295 - Immediate | $13.47 | View Details |
|  | KW30-3S-1H(800) | CONN HDR 1.0MM SMD 3POS R/A | 878 - Immediate | $5.26 | View Details |
|  | KW30-10S-1H(800) | CONN HDR 1.0MM SMD 10POS R/A | 2049 - Immediate | $10.02 | View Details |
|  | KW30-8S-1H(800) | CONN HDR 1.0MM SMD 8POS R/A | 67 - Immediate | $8.62 | View Details |
|  | KW30-6S-1V(800) | CONN HDR 1.0MM SMD 6POS VERT | 123 - Immediate | $8.05 | View Details |
KW30 Series Rectangular Connector Contacts
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | KW30-2830PCFA(800) | CONTACT, 28-30 AWG, GOLD PLATED | 9407 - Immediate | $0.82 | View Details |
KW30 Series Rectangular Connector Housings
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | KW30-3P-1C(800) | CONN PLUG HSG 3POS 1.00MM | 1 - Immediate | $2.30 | View Details |
|  | KW30-8P-1C(800) | CONN PLUG HSG 8POS 1.00MM | 849 - Immediate | $3.86 | View Details |
|  | KW30-15P-1C(800) | CONN PLUG HSG 15POS 1.00MM | 2581 - Immediate | $6.08 | View Details |
|  | KW30-2P-2C(800) | CONN PLUG HSG 2POS 1.00MM | 1978 - Immediate | $2.05 | View Details |
|  | KW30-6P-1C(800) | CONN PLUG HSG 6POS 1.00MM | 1030 - Immediate | $3.20 | View Details |
|  | KW30-10P-1C(800) | CONN PLUG HSG 10POS 1.00MM | 165 - Immediate | $4.43 | View Details |
