Hirose Electric Co Ltd

FH65 Series FPC/FFC Connectors

Hirose offers the low-profile and space saving FH65 series 0.5 mm pitch, 1.22 mm height, 125° heat resistant FPC/FFC connectors

Image of Hirose's FH65 Series FPC/FFC ConnectorsHirose’s FH65 FPC/FFC connectors offer a stable and reliable connection through a firm and clear tactile click verifying lock completion and a 120° wide actuator opening making FPC/FFC insertion easier. The side catches hold the tabbed FPC/FFC in place and enable sable FPC/FFC retention, easy guided positioning, and a user-friendly connection. The space saving I-shape of the series’ solder tables allow for visual inspection.

Features Applications
  • Robust lock with unique contact design
  • Board area under connector is available for PCB patterning
  • Compatible with automatic pick and place
  • RoHS compliant, halogen-free
  • Millimeter-wave radars
  • Servo motors
  • Heads up displays
  • Rearview/side view cameras

FH65 Series FPC/FFC Connectors

ImageManufacturer Part NumberDescriptionConnector/Contact TypeNumber of PositionsPitchAvailable QuantityPriceView Details
RECEPTACLE, 0.5MM PITCH, 5.8MM LFH65-8S-0.5SHRECEPTACLE, 0.5MM PITCH, 5.8MM LContacts, Bottom80.020" (0.50mm)4782 - Immediate$11.61View Details
RECEPTACLE, 0.5MM PITCH, 6.8MM LFH65-10S-0.5SHRECEPTACLE, 0.5MM PITCH, 6.8MM LContacts, Bottom100.020" (0.50mm)5316 - Immediate$12.35View Details
CONN FFC BOTTOM 34POS 0.5MM R/AFH65-34S-0.5SH(99)CONN FFC BOTTOM 34POS 0.5MM R/AContacts, Bottom340.020" (0.50mm)250 - Immediate$27.25View Details

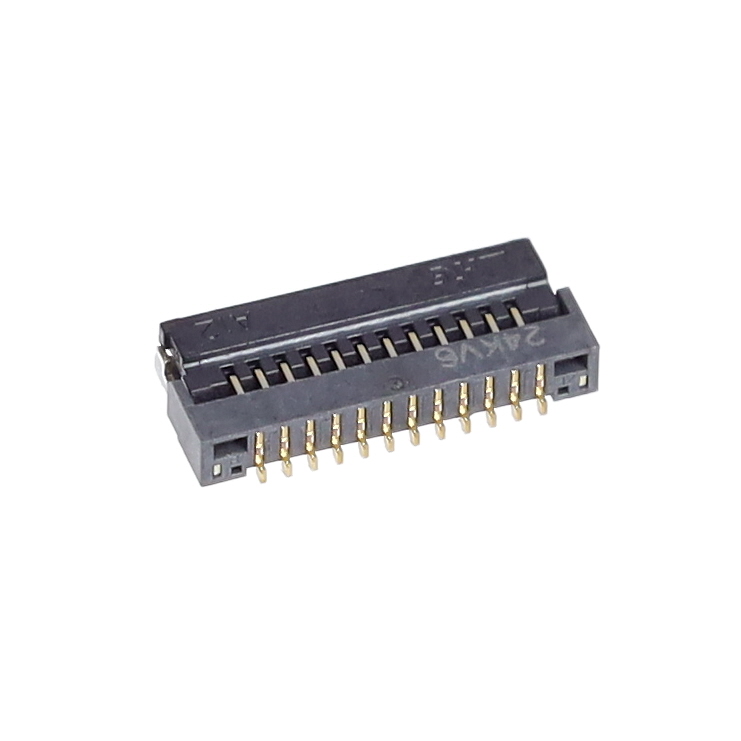

RECEPTACLE, 0.5MM PITCH, 7.8MM LFH65-12S-0.5SHRECEPTACLE, 0.5MM PITCH, 7.8MM LContacts, Bottom120.020" (0.50mm)4998 - Immediate$12.59View Details
RECEPTACLE, 0.5MM PITCH, 9.3MM LFH65-15S-0.5SHRECEPTACLE, 0.5MM PITCH, 9.3MM LContacts, Bottom150.020" (0.50mm)4842 - Immediate$13.75View Details
RECEPTACLE, 0.5MM PITCH, 5.8MM LFH65-8S-0.5SH(99)RECEPTACLE, 0.5MM PITCH, 5.8MM LContacts, Bottom80.020" (0.50mm)500 - Immediate$16.38View Details
RECEPTACLE, 0.5MM PITCH, 6.8MM LFH65-10S-0.5SH(99)RECEPTACLE, 0.5MM PITCH, 6.8MM LContacts, Bottom100.020" (0.50mm)992 - Immediate$17.45View Details
RECEPTACLE, 0.5MM PITCH, 9.3MM LFH65-15S-0.5SH(99)RECEPTACLE, 0.5MM PITCH, 9.3MM LContacts, Bottom150.020" (0.50mm)493 - Immediate$19.67View Details
CONN FFC BOTTOM 34POS 0.5MM R/AFH65-34S-0.5SHCONN FFC BOTTOM 34POS 0.5MM R/AContacts, Bottom340.020" (0.50mm)0 - Immediate$10.38View Details
Published: 2017-09-27
