Hirose Electric Co Ltd

DF62W Series Waterproof Wire-to-Wire Connector

Hirose DF62W series SignalBee™ is a water-resistant, slim, in-line connector for internal wiring

Image of Hirose DF62W Series Waterproof Wire-to-Wire ConnectorsThe DF62W series from Hirose is a compact, waterproof wire-to-wire connector (IP67 rated) ideal for internal wiring in space-constrained applications. Its slim profile, robust contact design, and secure locking mechanism ensure reliable performance in motors, tools, lighting systems, e-bikes, drones, and industrial equipment exposed to vibration, dust, and moisture.

Features
  • Slim, sleek design and smooth contour combine to complete connections in tight spaces
  • Secure lock mechanism
  • Reliable contact design
  • Robust contact design
  • Multiple variations available
  • Applicator sharing
  • Condensation prevention
  • Panel waterproof type
Applications
  • LED lighting
  • Home appliances
  • Robot arms
  • Bikes
  • Food processing machinery
  • Automatic ticket gates
  • Medical devices
  • Electric tools
  • Security systems

Housings

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN SOCKET HSG 6POS 2.20MMDF62W-6S-2.2CCONN SOCKET HSG 6POS 2.20MM5838 - Immediate$9.06View Details
CONN PLUG HSG 2POS 2.20MMDF62W-2EP-2.2CCONN PLUG HSG 2POS 2.20MM1685 - Immediate$12.59View Details
CONN SOCKET HSG 2POS 2.20MMDF62W-2S-2.2CCONN SOCKET HSG 2POS 2.20MM106 - Immediate$7.24View Details
CONN SOCKET HSG 4POS 2.20MMDF62W-4S-2.2CCONN SOCKET HSG 4POS 2.20MM2112 - Immediate$8.07View Details
CONN PLUG HSG 2POS 2.20MMDF62WC-2EP-2.2CCONN PLUG HSG 2POS 2.20MM426 - Immediate$12.59View Details
CONN PLUG HSG 4POS 2.20MMDF62W-4EP-2.2CCONN PLUG HSG 4POS 2.20MM78 - Immediate$13.50View Details
CONN PLUG HSG 4POS 2.20MMDF62WC-4EP-2.2CCONN PLUG HSG 4POS 2.20MM754 - Immediate$13.99View Details

Headers

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN HEADER VERT 3POS 2.2MMDF62W-3P-2.2DSA(20)CONN HEADER VERT 3POS 2.2MM519 - Immediate$12.59View Details
CONN HEADER VERT 9POS 2.2MMDF62WZ-9P-2.2DSA(50)CONN HEADER VERT 9POS 2.2MM0 - Immediate$26.34View Details
CONN HEADER VERT 6POS 2.2MMDF62WZ-6P-2.2DSA(20)CONN HEADER VERT 6POS 2.2MM1067 - Immediate$18.19View Details

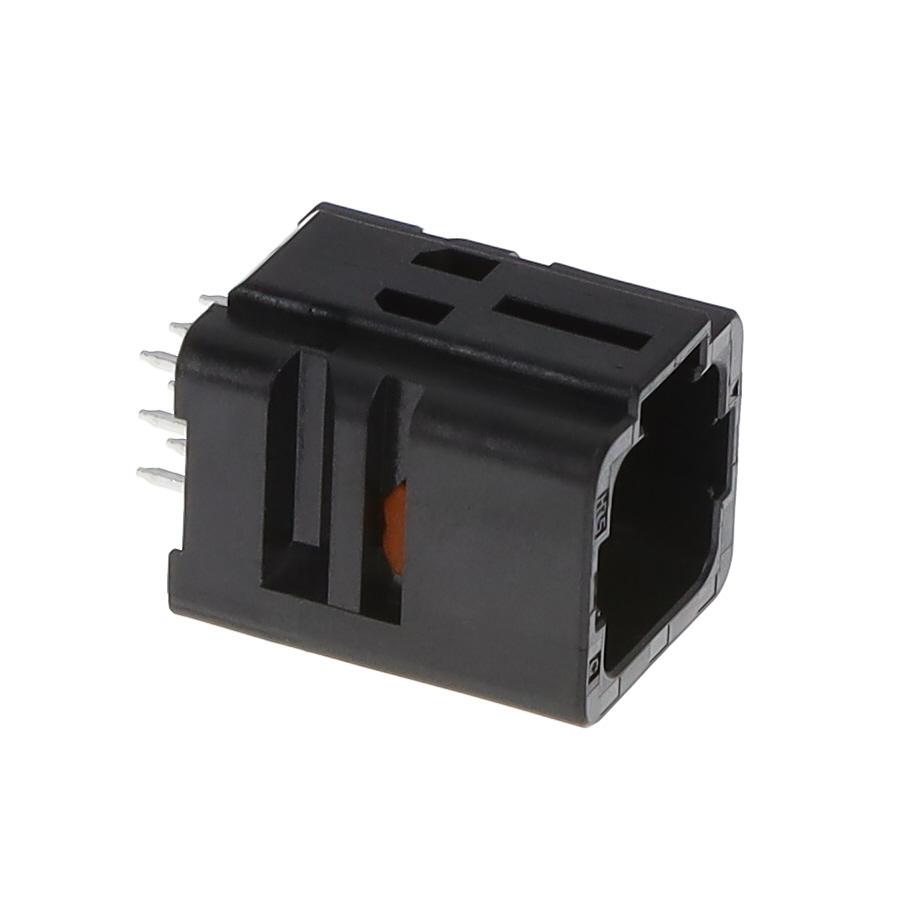

INTERCONNECT RECTANGULARDF62WZ-9P-2.2DSA(20)INTERCONNECT RECTANGULAR162 - Immediate$23.71View Details
Interconnect RectangularDF62WZ-9P-2.2DSA(21)Interconnect Rectangular0 - Immediate$23.71View Details

Contacts

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONN SOCKET 22-26AWG CRIMP TINDF62W-2226SCFCONN SOCKET 22-26AWG CRIMP TIN29407 - Immediate$0.82View Details
CONN PIN 22-26AWG CRIMP TINDF62W-EP2226PCFCONN PIN 22-26AWG CRIMP TIN15503 - Immediate$0.82View Details
CONN CRIMP PIN 20-22AWGDF62W-EP2022PCFCONN CRIMP PIN 20-22AWG25638 - Immediate$0.82View Details
CONN CRIMP SKT 20-22AWGDF62W-2022SCFCONN CRIMP SKT 20-22AWG18803 - Immediate$0.82View Details
CONN CRIMP SKT 20-22AWGDF62W-2022SCFACONN CRIMP SKT 20-22AWG20119 - Immediate$1.48View Details
CONN CRIMP PIN 22-26AWGDF62W-EP2226PCFACONN CRIMP PIN 22-26AWG23856 - Immediate$1.81View Details
CONN CRIMP SKT 22-26AWGDF62W-2226SCFACONN CRIMP SKT 22-26AWG30501 - Immediate$1.56View Details

Tooling and Accessories

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
TOOL HAND CRIMPER 22-26AWGHT802/DF62W-2226TOOL HAND CRIMPER 22-26AWG6 - Immediate$7,402.96View Details

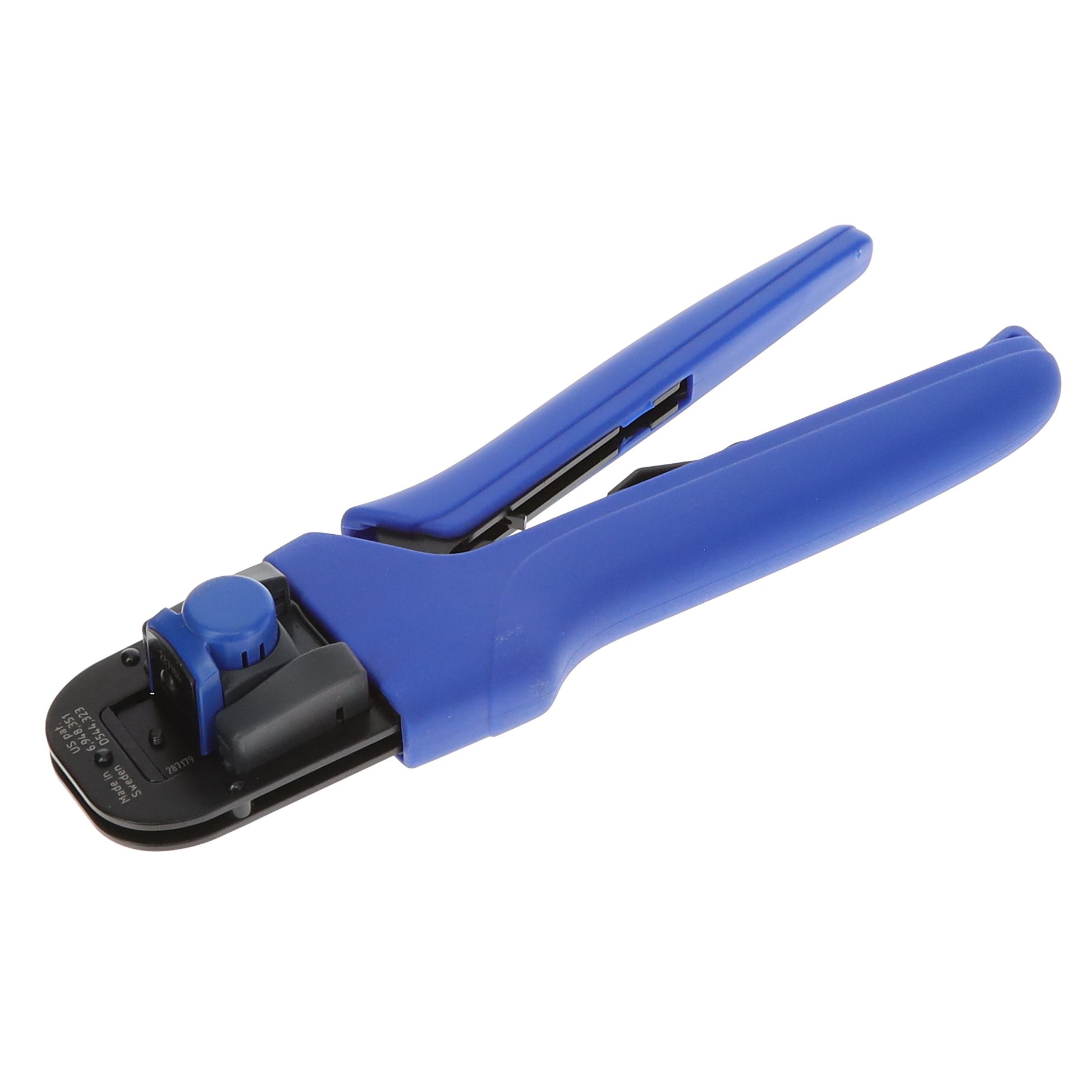

TOOL HAND CRIMPHT802/DF62W-2022TOOL HAND CRIMP1 - Immediate$7,534.75View Details
TOOL EXTRACTION DF62W SERIESDF62W/RE-MDTOOL EXTRACTION DF62W SERIES0 - Immediate$274.45View Details
CONN DF62 SERIESDF62W-WPCONN DF62 SERIES1954 - Immediate$1.32View Details
Updated: 2025-04-08
Published: 2015-08-03
