HARTING

M8 T1 Industrial Device Side Connectors

HARTING M8 T1 industrial device side connectors are ideal for SOS terminals, driver assistance terminals, IP cameras, field devices, and surveillance

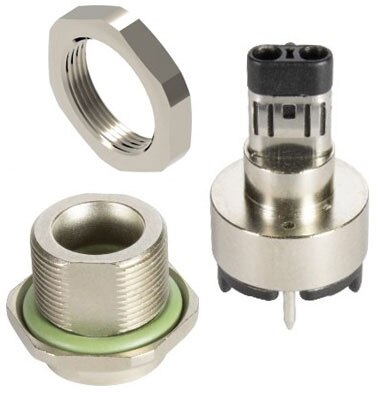

Image of HARTING M8 T1 Industrial Device Side ConnectorsThe HARTING T1 SPE portfolio includes the T1 SPE connector in metric circular M8 size. The HARTING T1 Industrial is the chosen mating face for SPE for the industry and its applications by the international standardization committees ISO/IEC, TIA, and IEEE.

Features
  • Standardized acc. to IEC 63171-6
  • IP-based communication up to the field level
  • One pair of wires
  • IP67
  • Data rate up to 10 Gbit/s
  • Operating temperature range: -40°C to +85°C
  • Rated voltage: 60 VDC
  • Rated current: 4 A/contact
  • Number of contacts: 2 contacts
  • Mating cycle: ≥100
  • Fully shielded, 360° shielding contact
  • Reflow soldering termination (THR)
Applications
  • SOS terminals
  • Driver assistance terminals
  • IP cameras
  • Field devices and sensors
  • Actuators
  • Surveillance and controls
Markets
  • Automation
  • Machinery
  • Robotics
  • Medical
  • Transportation
  • Power generation and distribution

M8 T1 Industrial Device Side Connectors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
M8-PCB-THR-2PC-2P-SPE-F-STR-SHLD21823392201M8-PCB-THR-2PC-2P-SPE-F-STR-SHLD0 - Immediate$128.75View Details
M8-ACC-RECEPT. HOUSING BACKMOUNT21823012001M8-ACC-RECEPT. HOUSING BACKMOUNT50 - Immediate$56.72View Details
M8-ACC-RECEPT. HOUSING BACKMOUNT21823012002M8-ACC-RECEPT. HOUSING BACKMOUNT50 - Immediate$56.72View Details
M8-ACC-RECEPT. HOUSING BACKMOUNT21823012003M8-ACC-RECEPT. HOUSING BACKMOUNT50 - Immediate$56.72View Details
M8-ACC-RECEPT.HOUSING FRONTMOUNT21823012004M8-ACC-RECEPT.HOUSING FRONTMOUNT50 - Immediate$73.43View Details
M8-ACC-LOCK NUT M10X0.521820000001M8-ACC-LOCK NUT M10X0.550 - Immediate$23.13View Details
