            D-Sub Push-Pull Hoods

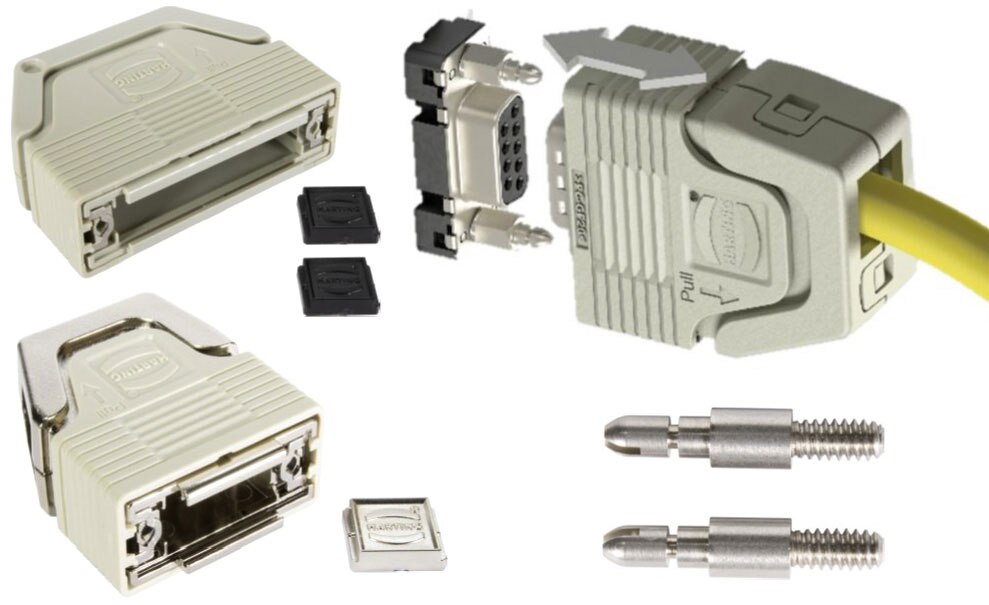

                    HARTING D-sub push-pull hoods are available in plastic and metallized plastic versions in 1, 2, and 3 hood sizes for 9, 15, and 25 contacts


HARTING D-sub housings with a true push-pull locking mechanism eliminate the need for screws and easily retrofits existing D-sub interface connectors using special locking bolts. Available in plastic and metallized plastic versions in hood sizes 1, 2, and 3 for 9, 15, and 25 contacts.

Features

Push-pull locking mechanism
Versatile integration
IP30
Operating temperature: -55°to +125°C
Mating cycle: ≥500
Shock and vibration proof per IEC 61373; Category 1, Class B

EMC shielded (metallized plastic version)
Cable diameter up to 14 mm
Suitable for D-sub standard, D-sub mixed, and D-sub high density
Compatible with HARTING coding system, offering up to 36 variations
Up to three cable entries

Applications

Industrial automation and control systems
Transportation systems
Robotics
Machine tools
Test and measuring equipment communication infrastructures

Markets

Machinery
Semiconductors
Robotics
Control technology
Railways

D-Sub Push-Pull Hoods

Manufacturer Part Number	Description	Number of Positions	Compatible Shell Size	Available Quantity	Price	View Details
09670090200	D-SUB_CCH_S1_PP_PL	9	E	5 - Immediate	$58.22	View Details
09670090210	D-SUB_CCH_S1_PP_PL_PLA	9	E	20 - Immediate	$77.10	View Details
09670150200160	D-SUB_CCH_S2_PP_PL_FC	15	A	10 - Immediate	$69.55	View Details
09670150200	D-SUB_CCH_S2_PP_PL	15	A	9 - Immediate	$69.55	View Details
09670250200	D-SUB_CCH_S3_PP_PL	25	B	8 - Immediate	$88.93	View Details
09670250210	D-SUB_CCH_S3_PP_PL_PLA	25	B	14 - Immediate	$119.80	View Details
09670090200160	D-SUB_CCH_S1_PP_PL_FC	9	E	10 - Immediate	$58.22	View Details
09670090210160	D-SUB_CCH_S1_PP_PL_PLA_FC	9	E	10 - Immediate	$77.10	View Details
09670150210	D-SUB_CCH_S2_PP_PL_PLA	15	A	10 - Immediate	$94.18	View Details
09670150210160	D-SUB_CCH_S2_PP_PL_PLA_FC	15	A	10 - Immediate	$94.18	View Details
09670250200160	D-SUB_CCH_S3_PP_PL_FC	25	B	10 - Immediate	$88.93	View Details
09670250210160	D-SUB_CCH_S3_PP_PL_PLA_FC	25	B	10 - Immediate	$119.80	View Details

Jackscrews

Manufacturer Part Number	Description	Accessory Type	Available Quantity	Price	View Details
09670029170	D-SUB_ACC_LB_UNC	Locking Post	10 - Immediate	$6.49	View Details
09670029172	D-SUB_ACC_FSL_UNC_LB_SW	Slide Lock Bolt	20 - Immediate	$10.02	View Details
97000002050	D-SUB_ACC_LB_STOP_4-40UNC	Locking Post	0 - Immediate	$9.03	View Details
97000002048	D-SUB_ACC_FSL_4-40UNC_LB_SW_0,8-	Slide Lock Bolt	0 - Immediate	$10.84	View Details
09670029171	D-SUB_ACC_LB_M3	Locking Post	20 - Immediate	$6.49	View Details
09670029173	D-SUB_ACC_FSL_M3_LB_SW	Slide Lock Bolt	20 - Immediate	$10.02	View Details
09670029174	D-SUB_ACC_FSL_UNC_LB_ASS	Slide Lock Bolt	20 - Immediate	$16.34	View Details
09670029175	D-SUB_ACC_FSL_M3_LB_ASS	Slide Lock Bolt	20 - Immediate	$16.34	View Details
97000002038	D-SUB_ACC_FSL_FC_4-40UNC_LB_0,8-	Locking Post	20 - Immediate	$6.49	View Details
97000002039	D-SUB_ACC_FSL_FC_M3_LB_0,8-1,3MM	Locking Post	20 - Immediate	$6.49	View Details
97000002051	D-SUB_ACC_LB_STOP_M3	Locking Post	20 - Immediate	$9.03	View Details
97000002049	D-SUB_ACC_FSL_M3_LB_SW_0,8-1,3MM	Slide Lock Bolt	20 - Immediate	$10.84	View Details
97000002052	D-SUB_ACC_FSL_4-40UNC_LB_ASS_0,8	Slide Lock Bolt	20 - Immediate	$16.83	View Details
97000002053	D-SUB_ACC_FSL_M3_LB_ASS_0,8-1,3M	Slide Lock Bolt	20 - Immediate	$16.83	View Details
