Amphenol Communications Solutions

Minitek127® Connector System

FCI Basics' versatile modular connector system addresses today's market requirements

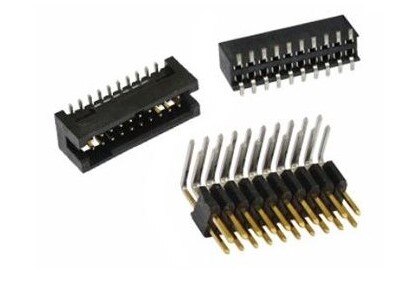

Image of FCI Basics' Minitek127® Connector System The FCI Basics' Minitek127 is an extensive modular range of connectors for all types of wire to board and cable to board applications. It includes straight and right angle, surface-mount, through-mount, pin headers, and board receptacles in different plating variations and position numbers up to 100. The product line also include IDC version.

FCI Basics' Minitek127® Connector System

Features
  • Three duplex plating versions (30 µ", 15" GXT, 10 µ" gold, and gold Flash)
  • Packaging: tape-on-reel with pick up cap or tube without pick up cap
  • Both top and bottom entry product available
  • Standoff design
  • Post options for SMT product
  • Customized stacking header
  • RoHS compliance and lead-free
Benefits
  • Allows for applications in a wide range of environments
  • Facilitates automated pick and place assembly
  • Meet specific needs and is useful for mezzanine application
  • Allows cleaning to eliminate soldering contaminations
  • Easy for customer design and process
  • Suitable for specific designs
  • Meet environmental, health, and safety requirements

MINITEK 127 Connector System

ImageManufacturer Part NumberDescriptionAvailable QuantityPrice
CONN HEADER VERT 6POS 1.27MM20021111-00006T4LFCONN HEADER VERT 6POS 1.27MM13100 - Immediate$4.03View Details
CONN HEADER VERT 8POS 1.27MM20021111-00008T4LFCONN HEADER VERT 8POS 1.27MM13028 - Immediate$5.27View Details
CONN HEADER VERT 10POS 1.27MM20021111-00010T4LFCONN HEADER VERT 10POS 1.27MM10860 - Immediate$6.42View Details
CONN HEADER VERT 12POS 1.27MM20021111-00012T4LFCONN HEADER VERT 12POS 1.27MM2073 - Immediate$7.66View Details
CONN HEADER VERT 14POS 1.27MM20021111-00014T4LFCONN HEADER VERT 14POS 1.27MM3075 - Immediate$8.81View Details
CONN HEADER VERT 16POS 1.27MM20021111-00016T4LFCONN HEADER VERT 16POS 1.27MM1445 - Immediate$9.96View Details
CONN HEADER VERT 18POS 1.27MM20021111-00018T4LFCONN HEADER VERT 18POS 1.27MM1107 - Immediate$11.03View Details
CONN HEADER VERT 20POS 1.27MM20021111-00020T4LFCONN HEADER VERT 20POS 1.27MM2713 - Immediate$12.10View Details
Published: 2010-05-04
