XVM Series 16 Volt Supercapacitor Module

Eaton's supercapacitors are unique, ultra-high-capacitance devices utilizing electromechanical double layer capacitor (EDLC) construction combined with new, high-performance materials. This combination of advanced technologies allows for a wide variety of capacitor solutions tailored to specific applications.

Click to view: series connection for increased voltage output

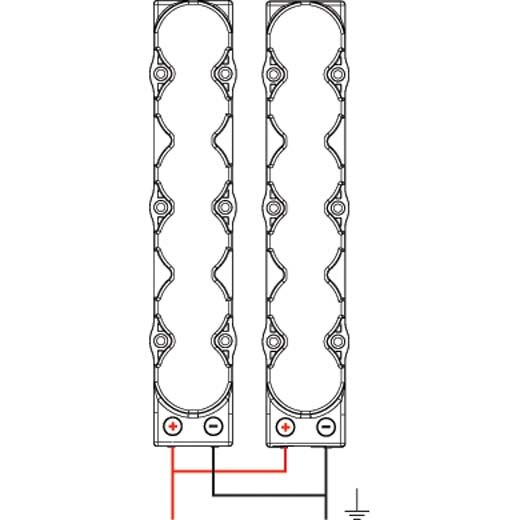

Click to view: parallel connection for increased power output

Click to view: series and parallel connection for increased voltage and power output

Features and Benefits

• Compact size for easy mounting as replacement for, or in conjunction with, a 12 V battery
• Series or parallel connection of multiple modules for higher voltage, power, or discharge time
• High reliability, "green" solution for pulse or back-up power applications
• Maintenance-free
• Broad operating temperature range: -40°C to +65°C (+85 derated)

Applications

• Industrial computer and emergency back-up energy
• Battery assist engine starting, especially for cold or frequent starts
• Graceful system shutdown for robotics, PLCs, and electrical switches
