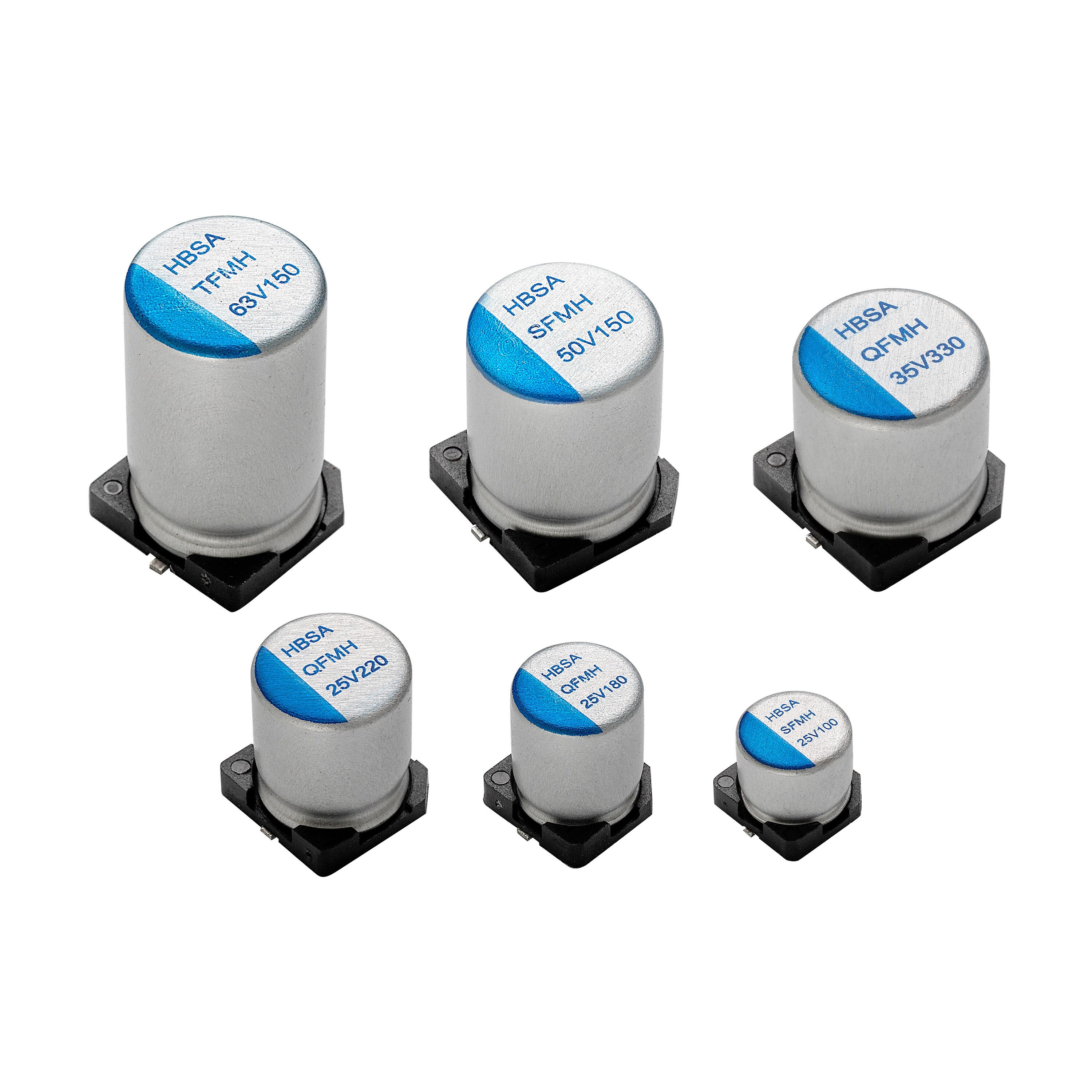

Conductive Polymer Hybrid Aluminum Electrolytic Capacitors - EHBSA Series
Eaton AEC-Q200 qualified capacitors are +125°C rated with a 4,000 hour life expectancy for high-reliability applications
The Eaton EHBSA family of conductive polymer hybrid aluminum electrolytic capacitors is designed for automotive and high-reliability applications. The capacitors are offered in a wide voltage range (16 V to 80 V), capacitance options (10 µF to 820 µF), low ESR, and high ripple current capabilities. They meet AEC-Q200 qualifications and have a long life of 4,000 hours at +125°C. These capacitors ensure reliable performance for LED headlights, on-board chargers (OBC), battery management systems (BMS), 48 V systems, engine control units (ECU), electric power steering (EPS), and advanced driver assistance systems (ADAS), as well as any application requiring high reliability.
Features
- AEC-Q200 qualified
- High ripple current
- Low ESR and low leakage current
- Endurance with ripple current: 4,000 hours at +125°C
- Operating temperature range: -55°C to +125°C
- Moisture sensitivity level (MSL): 1
Applications
- LED headlights
- On-board charger (OBC)
- Battery management systems (BMS)
- ADAS
- 48 V systems
- Engine control unit (ECU)
- Electronic power system (EPS)
16 Volt - Hybrid Electrolytic Capacitors - EHBSA Series
| Image | Manufacturer Part Number | Description | Capacitance | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
 |  | EHBSA016M8211010T | CAP ALUM HYBRID 1010 16V 820UF | 820 µF | 490 - Immediate | $11.69 | View Details |
25 Volt - Hybrid Electrolytic Capacitors - EHBSA Series
| Image | Manufacturer Part Number | Description | Capacitance | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
| | EHBSA025M4700606T | CAP ALUM HYBRID 0606 25V 47UF | 47 µF | 0 - Immediate | $4.86 | View Details |
| | EHBSA025M5600606T | CAP ALUM HYBRID 0606 25V 56UF | 56 µF | 0 - Immediate | $6.59 | View Details |
| | EHBSA025M6800606T | CAP ALUM HYBRID 0606 25V 68UF | 68 µF | 0 - Immediate | $6.91 | View Details |
| | EHBSA025M1010608T | CAP ALUM HYBRID 0608 25V 100UF | 100 µF | 0 - Immediate | $5.68 | View Details |
| | EHBSA025M1010606T | CAP ALUM HYBRID 0606 25V 100UF | 100 µF | 0 - Immediate | $7.24 | View Details |
| | EHBSA025M1510608T | CAP ALUM HYBRID 0608 25V 150UF | 150 µF | 0 - Immediate | $7.57 | View Details |
| | EHBSA025M1810608T | CAP ALUM HYBRID 0608 25V 180UF | 180 µF | 0 - Immediate | $8.23 | View Details |
| | EHBSA025M2210810T | CAP ALUM HYBRID 0810 25V 220UF | 220 µF | 0 - Immediate | $9.22 | View Details |
| | EHBSA025M2710810T | CAP ALUM HYBRID 0810 25V 270UF | 270 µF | 0 - Immediate | $10.54 | View Details |
| | EHBSA025M3311010T | CAP ALUM HYBRID 1010 25V 330UF | 330 µF | 500 - Immediate | $11.20 | View Details |
| | EHBSA025M4711012T | CAP ALUM HYBRID 1012 25V 470UF | 470 µF | 450 - Immediate | $13.50 | View Details |
| | EHBSA025M4711010T | CAP ALUM HYBRID 1010 25V 470UF | 470 µF | 0 - Immediate | $11.61 | View Details |
35 Volt - Hybrid Electrolytic Capacitors - EHBSA Series
| Image | Manufacturer Part Number | Description | Capacitance | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
| | EHBSA035M2700606T | CAP ALUM HYBRID 0606 35V 27UF | 27 µF | 0 - Immediate | $5.10 | View Details |
| | EHBSA035M4700606T | CAP ALUM HYBRID 0606 35V 47UF | 47 µF | 0 - Immediate | $5.27 | View Details |
| | EHBSA035M4700608T | CAP ALUM HYBRID 0608 35V 47UF | 47 µF | 0 - Immediate | $6.91 | View Details |
| | EHBSA035M6800608T | CAP ALUM HYBRID 0608 35V 68UF | 68 µF | 0 - Immediate | $5.35 | View Details |
| | EHBSA035M1010608T | CAP ALUM HYBRID 0608 35V 100UF | 100 µF | 0 - Immediate | $8.56 | View Details |
| | EHBSA035M1010810T | CAP ALUM HYBRID 0810 35V 100UF | 100 µF | 0 - Immediate | $8.56 | View Details |
| | EHBSA035M1210608T | CAP ALUM HYBRID 0608 35V 120UF | 120 µF | 0 - Immediate | $9.22 | View Details |
| | EHBSA035M1510810T | CAP ALUM HYBRID 0810 35V 150UF | 150 µF | 0 - Immediate | $8.89 | View Details |
| | EHBSA035M1810810T | CAP ALUM HYBRID 0810 35V 180UF | 180 µF | 0 - Immediate | $9.71 | View Details |
| | EHBSA035M2211010T | CAP ALUM HYBRID 1010 35V 220UF | 220 µF | 495 - Immediate | $11.03 | View Details |
| | EHBSA035M2711010T | CAP ALUM HYBRID 1010 35V 270UF | 270 µF | 500 - Immediate | $11.61 | View Details |
| | EHBSA035M3311012T | CAP ALUM HYBRID 1012 35V 330UF | 330 µF | 445 - Immediate | $13.50 | View Details |
| | EHBSA035M3311010T | CAP ALUM HYBRID 1010 35V 330UF | 330 µF | 500 - Immediate | $12.27 | View Details |
| | EHBSA035M3911010T | CAP ALUM HYBRID 1010 35V 390UF | 390 µF | 0 - Immediate | $12.76 | View Details |
| | EHBSA035M4711012T | CAP ALUM HYBRID 1012 35V 470UF | 470 µF | 445 - Immediate | $14.74 | View Details |
| | EHBSA035M4711016T | CAP ALUM HYBRID 1016 35V 470UF | 470 µF | 0 - Immediate | $16.46 | View Details |
50 Volt - Hybrid Electrolytic Capacitors - EHBSA Series
| Image | Manufacturer Part Number | Description | Capacitance | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
| | EHBSA050M2200606T | CAP ALUM HYBRID 0606 50V 22UF | 22 µF | 0 - Immediate | $5.76 | View Details |
| | EHBSA050M3300608T | CAP ALUM HYBRID 0608 50V 33UF | 33 µF | 0 - Immediate | $5.60 | View Details |
| | EHBSA050M4700810T | CAP ALUM HYBRID 0810 50V 47UF | 47 µF | 0 - Immediate | $8.31 | View Details |
| | EHBSA050M6800810T | CAP ALUM HYBRID 0810 50V 68UF | 68 µF | 0 - Immediate | $10.45 | View Details |
| | EHBSA050M1011010T | CAP ALUM HYBRID 1010 50V 100UF | 100 µF | 500 - Immediate | $11.61 | View Details |
| | EHBSA050M1211010T | CAP ALUM HYBRID 1010 50V 120UF | 120 µF | 500 - Immediate | $12.76 | View Details |
| | EHBSA050M1511012T | CAP ALUM HYBRID 1012 50V 150UF | 150 µF | 450 - Immediate | $13.91 | View Details |
| | EHBSA050M1811012T | CAP ALUM HYBRID 1012 50V 180UF | 180 µF | 450 - Immediate | $15.06 | View Details |
| | EHBSA050M2211016T | CAP ALUM HYBRID 1016 50V 220UF | 220 µF | 200 - Immediate | $16.63 | View Details |
63 Volt - Hybrid Electrolytic Capacitors - EHBSA Series
| Image | Manufacturer Part Number | Description | Capacitance | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
| | EHBSA063M1000606T | CAP ALUM HYBRID 0606 63V 10UF | 10 µF | 0 - Immediate | $5.52 | View Details |
| | EHBSA063M2200608T | CAP ALUM HYBRID 0608 63V 22UF | 22 µF | 0 - Immediate | $5.60 | View Details |
| | EHBSA063M3300810T | CAP ALUM HYBRID 0810 63V 33UF | 33 µF | 0 - Immediate | $11.03 | View Details |
| | EHBSA063M4700810T | CAP ALUM HYBRID 0810 63V 47UF | 47 µF | 0 - Immediate | $12.27 | View Details |
| | EHBSA063M5601010T | CAP ALUM HYBRID 1010 63V 56UF | 56 µF | 500 - Immediate | $13.34 | View Details |
| | EHBSA063M6801010T | CAP ALUM HYBRID 1010 63V 68UF | 68 µF | 450 - Immediate | $14.49 | View Details |
| | EHBSA063M8201010T | CAP ALUM HYBRID 1010 63V 82UF | 82 µF | 500 - Immediate | $13.01 | View Details |
| | EHBSA063M1011010T | CAP ALUM HYBRID 1010 63V 100UF | 100 µF | 500 - Immediate | $13.99 | View Details |
| | EHBSA063M1211012T | CAP ALUM HYBRID 1012 63V 120UF | 120 µF | 450 - Immediate | $17.70 | View Details |
| | EHBSA063M1511016T | CAP ALUM HYBRID 1016 63V 150UF | 150 µF | 0 - Immediate | $18.69 | View Details |
80 Volt - Hybrid Electrolytic Capacitors - EHBSA Series
| Image | Manufacturer Part Number | Description | Capacitance | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|
| | EHBSA080M2200810T | CAP ALUM HYBRID 0810 80V 22UF | 22 µF | 0 - Immediate | $13.34 | View Details |
| | EHBSA080M4701010T | CAP ALUM HYBRID 1010 80V 47UF | 47 µF | 500 - Immediate | $15.56 | View Details |
| | EHBSA080M5601010T | CAP ALUM HYBRID 1010 80V 56UF | 56 µF | 320 - Immediate | $16.30 | View Details |
