Same Sky

Cable Mount Audio Jacks

Same Sky's MR series and SR series offer 2.5 mm and 3.5 mm mating diameters

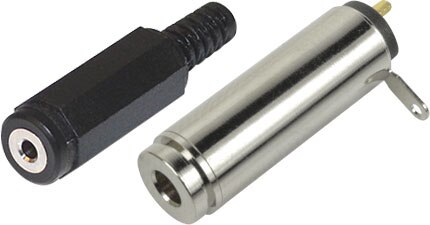

Image of Same Sky's MR and SR Series Audio Receptacle ConnectorsSame Sky's MR series and SR series of modular and overmold audio receptacles are perfectly suited to carry audio signals in a range of consumer, home and office equipment, as well as portable electronic applications. These compact audio receptacles feature a cable mounting style, current ratings of 0.5 A and 1 A, and mating diameters of 2.5 mm and 3.5 mm.

Features
  • 2.5 mm and 3.5 mm mating diameters
  • Modular or overmold types
  • Octagonal and round cover options (modular)
  • Up to 1 A current ratings
  • 2 to 4 conductors
  • Cable mounting style

Resources

MR Series Audio Connectors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
AUDIO JACK, 2.5 MM, STRAIGHT, 2MR-2502AUDIO JACK, 2.5 MM, STRAIGHT, 21611 - Immediate$10.92View Details
AUDIO JACK, 3.5 MM, STRAIGHT, 2MR-3502AUDIO JACK, 3.5 MM, STRAIGHT, 2220 - Immediate$11.25View Details
AUDIO JACK, 3.5 MM, STRAIGHT, 3MR-3530AUDIO JACK, 3.5 MM, STRAIGHT, 3432 - Immediate$14.86View Details
AUDIO JACK, 3.5 MM, STRAIGHT, 3MR-3530AAUDIO JACK, 3.5 MM, STRAIGHT, 3847 - Immediate$14.86View Details
CONN JACK MONO 2.5MMMR-2501CONN JACK MONO 2.5MM994 - Immediate$10.51View Details
CONN JACK MONO 3.5MMMR-3501CONN JACK MONO 3.5MM14524 - Immediate$10.51View Details

SR Series Audio Connectors

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
AUDIO JACK, 2.5 MM, STRAIGHT, 3SR-2530-01AUDIO JACK, 2.5 MM, STRAIGHT, 3811 - Immediate$10.84View Details
AUDIO JACK, 2.5 MM, STRAIGHT, 4SR-2540-01AUDIO JACK, 2.5 MM, STRAIGHT, 4135 - Immediate$13.22View Details
AUDIO JACK, 3.5 MM, STRAIGHT, 3SR-3530-01AUDIO JACK, 3.5 MM, STRAIGHT, 365 - Immediate$11.41View Details
AUDIO JACK, 3.5 MM, STRAIGHT, 4SR-3540-01AUDIO JACK, 3.5 MM, STRAIGHT, 4812 - Immediate$16.09View Details
AUDIO JACK, 3.5 MM, STRAIGHT, 3SR-3530AUDIO JACK, 3.5 MM, STRAIGHT, 31388 - Immediate$14.86View Details
AUDIO JACK, 3.5 MM, STRAIGHT, 3SR-3530AAUDIO JACK, 3.5 MM, STRAIGHT, 3320 - Immediate$14.86View Details
CONN JACK STEREO 2.5MMSR-2501CONN JACK STEREO 2.5MM0 - Immediate$15.11View Details
CONN JACK STEREO 3.5MMSR-3501CONN JACK STEREO 3.5MM0 - Immediate$15.11View Details
Updated: 2018-10-30
Published: 2018-08-22
