            ASSR-601JV/JT Automotive R²Coupler® 1500 V Photo MOSFET
                    Broadcom’s R²Coupler provides reinforced insulation that delivers safe signal isolation critical in automotive and high-temperature industrial applications

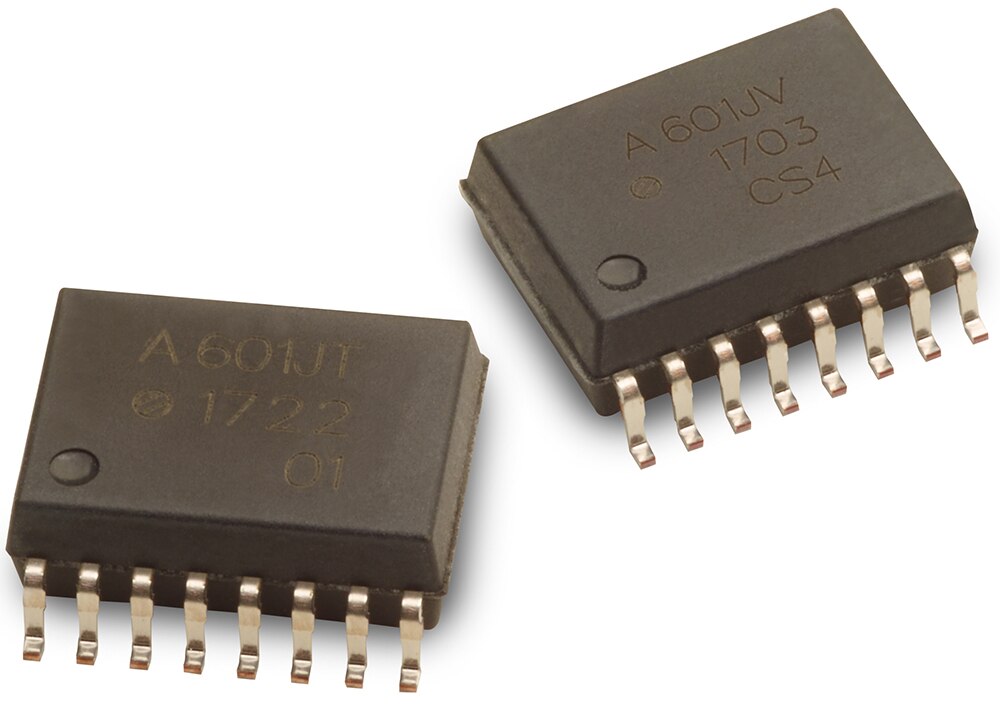

Broadcom’s ASSR-601JV/JT is a high-voltage photo MOSFET designed for automotive applications. ASSR-601JV/JT consists of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high-voltage MOSFETs. The photo MOSFET turns on (contact closes) with a minimum input current of 7 mA through the input LED. The photo MOSFET turns off (contact opens) with an input voltage of 0.4 V or less.

The ASSR-601JV/JT is equivalent to 1FormA electromechanical relays (EMR) and is available in the 16-pin SOIC package. The Broadcom R²Coupler provides reinforced insulation and reliability that delivers safe signal isolation critical in automotive and high-temperature industrial applications.

Features

Compact solid-state bidirectional signal switch
Qualified to AEC-Q101 test guidelines
Automotive temperature range:
- T_A=-40°C to +105°C for ASSR-601JV
- T_A=-40°C to +125°C for ASSR-601JT
Breakdown voltage, BV_DSS: 1500 V at I_DSS=250 µA
Avalanche rated MOSFETs
Low off-state leakage:
- I_OFF <1 µA at V_DS=1000 V for ASSR-601JV
- I_OFF <5 µA at V_DS=1000 V for ASSR-601JT

Turn on time: T_ON <4 ms
Turn off time: T_OFF <0.5 ms
Compact surface mount package: 300 mil SO-16
Creepage and clearance ≥8 mm (input-output)
Creepage >5 mm (between drain pins of MOSFETs)
On-resistance, R_DS(ON) <250 Ω at I_LOAD=10 mA
Worldwide safety approvals:
- IEC/EN/DIN EN 60747-5-5: 1414 V_PEAK working voltage
- UL 1577 (5000 V_RMS/1 min.) and CSA

Applications

Battery insulation resistance measurement/leakage detection

BMS flying capacitor topology for sensing batteries
