Ultra Precision Solutions

Ultra-precision signal chains address applications that demand the highest precision and stability. These signal chains offer the flexibility needed to optimize them for requirements that address both measurement and drive solutions. They combine high resolution data converters, ultra-stable voltage references, and low noise, low drift amplifiers into signal chains that deliver the ultimate in both DC and AC precision and accuracy. Analog Devices’ catalog of ultra-precision components enables full signal chain solutions that meet demanding specifications for low drift over temperature, DC linearity and error, settling time, total harmonic distortion (THD), and signal-to-noise ratios (SNR) exceeding 90 dB.

Ultra Precision Solutions

  • Adaptable voltage and current measurement
  • Fully integrated voltage and current measurement
  • Adaptable voltage drive
  • Sine wave voltage generation

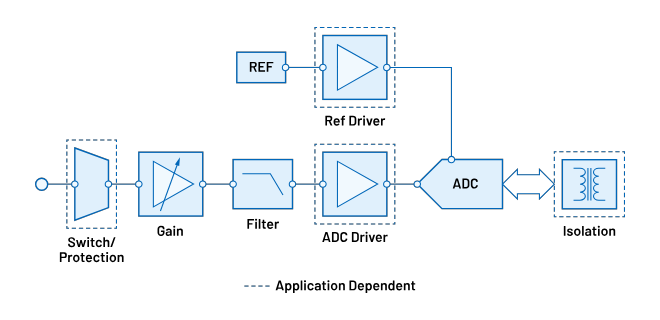

Adaptable voltage and current measurement

Signal chain options providing best-in-class accuracy, stability, and repeatability for measuring DC and low frequency signals.

Lowest noise lowest drift

Use Cases/Applications

  • DMM, high end metrology
  • Test and measurement equipment

Absolute best accuracy, stability, and repeatability

Product Selection Guide: Lowest noise lowest drift

Switch

  • ADG1211Low capacitance, low charge injection, ±15 V/+12 V quad SPST switch

Gain

  • ADA4625-136 V, 18 MHz, low noise, fast settling single supply, RRO, JFET op amp

ADC driver

REF

  • LTZ10000.05 ppm/°C, ovenized, ultra precision voltage reference

REF driver

ADC

  • AD4630-24Dual channel, 24-Bit, 2 Msps, low power SAR ADC

Isolation

Low latency measurement

Use Cases/Applications

  • SMU, PMU, V/I
  • DMM
  • Potentiostat/galvanostat
  • Semiconductor manufacturing
  • Digital control loop

Ultrahigh precision optimized for fast settling in low latency applications

Product Selection Guide: Low latency measurement

Protection

  • ADG5421F±60 V fault protection and detection, 11 Ω RON, dual SPST switch

Gain

  • LTC637336 V, fully-differential, programmable-gain instrumentation amplifier with 25 pA input bias current

ADC driver

  • ADA4896-21 nV/√ Hz, low power, rail-to-rail output amplifiers

REF

  • LTC6655LN0.25 ppm noise, low drift precision references

ADC

  • AD4630-24Dual channel, 24-Bit, 2 Msps, low power SAR ADC

Isolation

Optimum precision - outstanding stability

Use Cases/Applications

  • DMM best suited to 5½ to 8½ digit
  • Process control: PLC/DCS modules
  • Temperature and pressure measurement
  • Seismic survey equipment
  • Medical and scientific instrumentation
  • Chromatography

Excellent performance, stability, and accuracy with PGIA configurable op amp

Product Selection Guide: Optimum precision - outstanding stability

Switch

  • ADG5421±60 V fault protection and detection, 11 Ω RON, dual SPST switch

Gain

  • ADA4522-2Dual, 55 V, EMI enhanced, zero drift, ultralow noise, rail-to-rail output operational amplifiers

REF

  • LTC6655LN0.25 ppm noise, low drift precision references

ADC

  • AD7177-232-Bit, 10 kSPS, sigma-delta ADC with 100 µs settling and true rail-to-rail buffers

Isolation

  • MAX22664 Reinforced, Fast, Low-Power, Six-Channel Digital Isolators

Fully integrated voltage and current measurement

Compact signal chain options providing excellent performance for measurement of DC and low frequency signals.

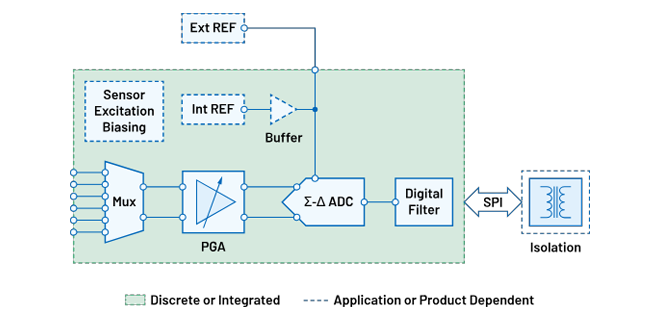

Multiplexed - accuracy optimized sensor ready

Use Cases/Applications

  • V/I
  • DMM5.5 digit to 7.5 digit
  • Weigh scale
  • PLC modules
  • Pressure measurment
  • Chromatography

Highly integrated low noise solution for high performance DC applications

Product Selection Guide: Multiplexed - accuracy optimized sensor ready

REF

  • LTC6655LN0.25 PPM noise 2 PPM/°C low drift precision reference

ADC

  • AD71904.8 kHz ultralow noise 24-Bit sigma-delta ADC with PGA

Isolation

  • ADuM141ERobust, quad channel isolator with output enable and 1 reverse channel

Small - low power - sensor ready

Use Cases/Applications

  • Low power, low speed, multichannel
  • Battery-powered handheld solutions
  • DMM (3½ digit to 4½ digit)

Optimized signal chain that offers a cost/fit for function solution

Product Selection Guide: Small - low power - sensor ready

REF

  • ADR4550Ultralow-noise, high-accuracy 5.0 V voltage reference

ADC

  • AD7124-4 AD7124-84-/8-channel, low noise, low power, 24-Bit, sigma-delta ADC with PGA and reference

Isolation

  • ADuM1441Micropower quad-channel digital isolator, default high (3/1 channel directionality)

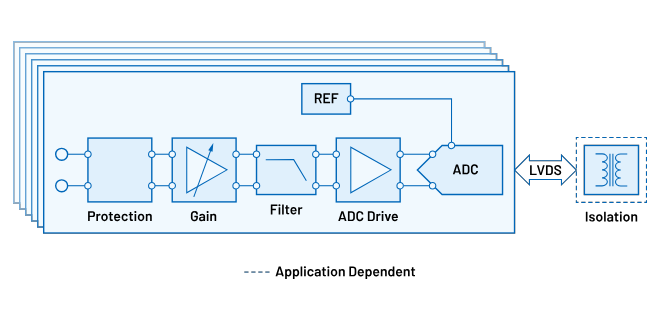

Density and latency optimized sensor ready

Use Cases/Applications

  • Device power supply (DPS)
  • PPMU
  • Programmable logic controllers
  • Industrial process control

Fully integrated solution for AC and DC performance, fast settling, and low latency

Product Selection Guide: Density and latency optimized sensor ready

Protection

  • LTC2358-18Buffered octal, 18-Bit, 200 ksps/channel differential ±10.24 V ADC with 30 Vp-p common mode range

Isolation

  • ADN46245.7 kV rms/1.5 kV rms, quad-channel LVDS 2.5 gigabit isolator

Adaptable voltage drive

Signal chain options providing a highly accurate, highly stable programmable voltage source.

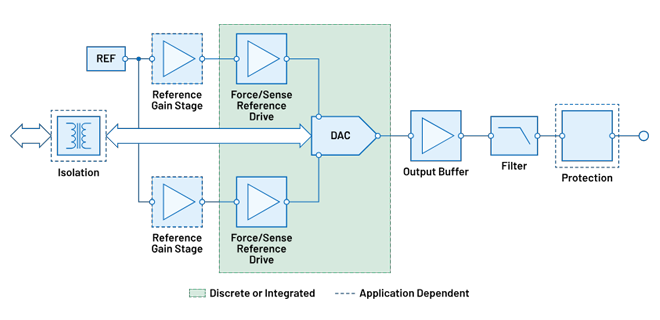

Noise and stability optimized

Use Cases/Applications

  • SMU, PMU, V/I
  • Weigh scale
  • Semiconductor manufacturing
  • Laser beam positioners
  • Process automation

Highest DC performance, lowest drift drive signal chain

Product Selection Guide: Noise and stability optimized

REF

  • LTZ10000.05 ppm/°C, ovenized, ultra precision voltage reference

Reference & gain stage

  • ADA40774 MHz, 7 nV/√Hz, low offset and drift, high precision single amplifier

Force/sense reference drive

  • AD8676Ultra precision, 36 V, 2.8 nV/√Hz, Dual RRO Op Amp

Isolation

  • MAX22664 Reinforced, Fast, Low-Power, Four-Channel Digital Isolators

DAC

  • AD57911 ppm, 20-Bit, ±1 LSB INL, Voltage Output DAC

Output buffer

  • AD867536 V precision, 2.8 nV/√Hz rail-to-rail output op amp

Protection

  • ADG5401FFault protection, 6 Ω RON, SPST switch with 0.6 kΩ feedback channel

Density optimized

Use Cases/Applications

  • SMU, PMU, V/I
  • Weigh scale
  • Semiconductor manufacturing
  • Laser beam positioners
  • Process automation

High DC performance in optimized form factor

Product Selection Guide: Density optimized

REF

  • LTC66550.25 ppm Noise, 2 ppm/°C low drift precision references

Reference gain stage

  • ADA40774 MHz, 7 nV/√Hz, low offset and drift, high precision single amplifier

Isolation

  • MAX22664 Reinforced, Fast, Low-Power, Four-Channel Digital Isolators

DAC

  • AD5790System ready 20-Bit, ±2 LSB INL, voltage output DAC

Output buffer

  • AD867536 V Precision, 2.8 nV/√Hz Rail-to-Rail Output Op Amp

Protection

  • ADG5401FFault protection, 6 Ω RON, SPST switch with 0.6 kΩ feedback channel

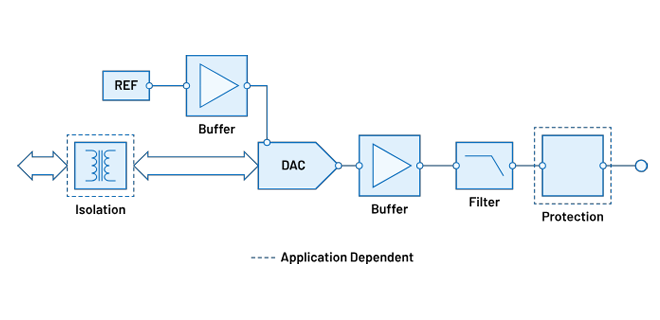

Cost optimized

Use Cases/Applications

  • Semiconductor Manufacturing
  • Laser beam positioners
  • Process automation

Optimum DC performance low drift drive signal chain

Product Selection Guide: Cost optimized

REF

  • LTC66550.25 ppm Noise, 2 ppm/°C low drift precision references

Buffer

  • ADA40774 MHz, 7 nV/√Hz, low offset and drift, high precision single amplifier

Isolation

  • MAX22664 Reinforced, Fast, Low-Power, Four-Channel Digital Isolators

DAC

  • LTC2756Serial 18-Bit SoftSpan IOUT DAC

Amp

  • AD867536 V precision, 2.8 nV/√Hz rail-to-rail output op amp

Protection

  • ADG5401FFault protection, 6 Ω RON, SPST switch with 0.6 kΩ feedback channel

Sine Wave Voltage Generation

Signal chains that deliver ultralow distortion, high accuracy, stability, and repeatability with a simplified design.

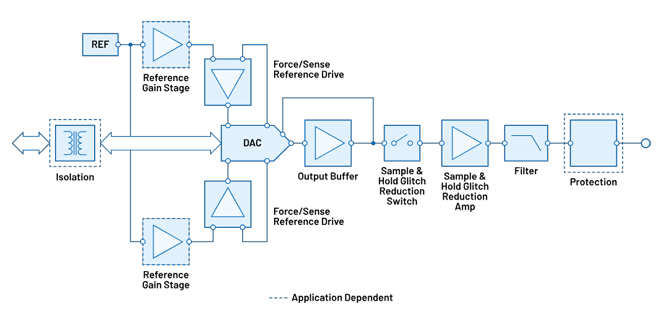

Performance optimized

Use Cases/Applications

  • Semiconductor test
  • Audio test

Ultralow THD performance with accuracy by removing glitch energy using an external S&H circuitry

Product Selection Guide: Performance optimized

REF

  • LTC66550.25 ppm Noise, 2 ppm/°C low drift precision references

Reference gain stage

  • ADA40774 MHz, 7 nV/√Hz, low offset and drift, high precision single amplifier

Force/sense reference drive

  • AD8676Ultra precision, 36 V, 2.8 nV/√Hz, Dual RRO Op Amp

Isolation

  • MAX22664 Reinforced, Fast, Low-Power, Four-Channel Digital Isolators

DAC

  • AD57911 ppm, 20-Bit, ±1 LSB INL, Voltage Output DAC

Output buffer

  • AD8676Ultra precision, 36 V, 2.8 nV/√Hz, Dual RRO Op Amp

Sample & hold glitch reduction switch

  • ADG1236Low Capacitance, Low Charge Injection, ±15 V/12 V iCMOS, Dual SPDT Switch

Sample & hold glitch reduction amplifier

  • AD8676Ultra precision, 36 V, 2.8 nV/√Hz, Dual RRO Op Amp

Protection

  • ADG5421F±60 V fault protection and detection, 11 Ω RON, dual SPST switch

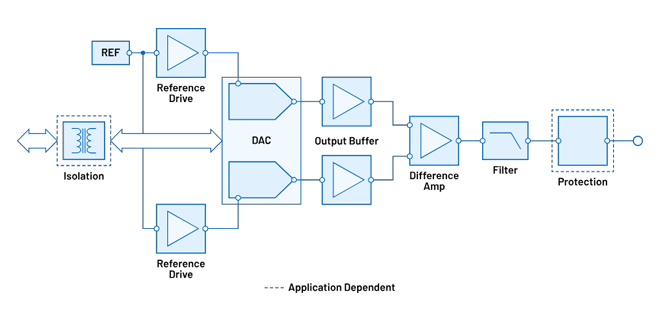

Density optimized

Use Cases/Applications

  • Semiconductor test
  • Audio test

Ultralow THD performance by cancelling glitch energy through the dual-channel update

Product Selection Guide: Density optimized

REF

  • LTC66550.25 ppm Noise, 2 ppm/°C low drift precision references

Reference & drive

  • ADA40774 MHz, 7 nV/√Hz, low offset and drift, high precision single amplifier

Isolation

  • MAX22664 Reinforced, Fast, Low-Power, Four-Channel Digital Isolators

DAC

  • LTC2758Dual serial 18-Bit SoftSpan IOUT DACs

Output buffer

  • LT146890 MHz, 22 V/µs operational amplifier

Difference Amp

  • ADA4625-136 V, 18 MHz, low noise, fast settling single supply, RRO, JFET op amp

Protection

  • ADG5421F±60 V fault protection and detection, 11 Ω RON, dual SPST switch
