AD4003/AD4007/AD4011, 18-Bit, Analog-to-Digital Converters (ADCs)
Analog Devices' low noise, low power, high speed successive approximation register (SAR) ADCs for battery powered, healthcare, and automation equipment
ADI's AD4003, AD4007, and AD4011 are 18-bit, SAR ADCs that are low noise, low power, and high speed. The AD4003 has a throughput of 2 MSPS, the AD4007 has 1 MSPS, and the AD4001 has 500 kSPS. These ADCs take a single 1.8 V input and provide 1.7 V to 5.5 V logic output. The devices use multiple data interfaces such as DSP, Microwire™, QSPI™, and SPI. The ADCs comes in a 10-pin MSOP or LFCSP package that have operating temperatures of -40°C to +125°C. AD4003, AD4007, and AD4011 SAR ADCs are ideal for battery powered, healthcare, and automation equipment.

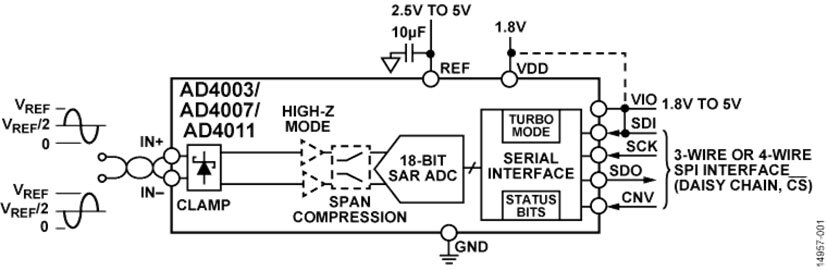

Block Diagram
Features
- SAR architecture
- Data interface: DSP, Microwire, QSPI, and SPI
- 18-bits
- 2 MSPS, 1 MSPS, 500 kSPS
- Voltage supply analog: 1.71 V to 1.89 V
- Voltage supply digital: 1.71 V to 5.5 V
- Temperature operating range: -40°C to +125°C
- Package/case: 10-pin MSOP or 10-pin LFCSP
Applications
- Automation
- Medical equipment/healthcare
- Automatic test equipment (ATE)
- Battery powered equipment
- Handheld/portable
Evaluation Board for AD4003
| Image | Manufacturer Part Number | Description | Function | Utilized IC / Part | Primary Attributes | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 |  | EVAL-CN0385-FMCZ | EVAL BOARD FOR AD4003 | Isolated Data Acquisition System | AD4003 | 8-Channel (Octal) | 1 - Immediate | $1,782.15 | View Details |
AD4003
| Image | Manufacturer Part Number | Description | Input Type | Supplier Device Package | Mounting Type | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
|  | AD4011BCPZ-RL7 | IC ADC 18BIT SAR 10LFCSP | Differential | 10-LFCSP-WD (3x3) | Surface Mount | 344 - Immediate | $189.58 | View Details |
|  | AD4003BRMZ | IC ADC 18BIT SAR 10MSOP | Differential | 10-MSOP | Surface Mount | 824 - Immediate | $269.60 | View Details |
AD4007
| Image | Manufacturer Part Number | Description | Number of Inputs | Input Type | Ratio - S/H:ADC | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
| | AD4007BRMZ | IC ADC 18BIT SAR 10MSOP | 1 | Differential | - | 81 - Immediate | $260.54 | View Details |
Published: 2017-08-30
