            FloatCombo™ 0.50 mm Floating Board-to-Board Connectors with Power Pin

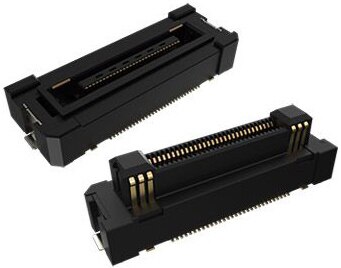

                    Amphenol Communications Solutions FloatCombo board-to-board connectors feature a high-speed and high-current power pin


Amphenol Communications Solutions FloatCombo connectors feature a 0.50 mm pitch board-to-board floating design, supporting stack heights ranging from 8 mm to 30 mm. These connectors come with four independent power contacts and 20 to 140 signal contacts, with the power contacts capable of supporting 5 A per pin and the signal contacts providing high-speed data rates of up to 10 Gb/s or 16 Gb/s. The compact connector design makes it suitable for use in applications with large current, vibration, and space-saving requirements, such as ADAS, ECUs, BMS, OBC, and inverters in automotive and LED displays, LED monitors, and robotics in industrial.

Resources

Product specifications: 0.5 mm Pitch Floating Board-to-Board Connector Series

Features

High-speed transmission: 10 Gb/s (SH≤15 mm), 16 Gb/s(SH>15 mm)
Current rating up to 5 A per power pin (5 A/pin x 4 pins)
Wide operating temperature range: -55°C to +125°C (including T-Rise)
Large floating range, SH≤15 mm: X, Y±0.60 mm, Z±0.50 mm, SH>15 mm: X, Y±0.80 mm, Z±0.60 mm

Anti-fool mating design
Direction guide functions for easy mating
USCAR-2 T3V2 qualified

Applications

Consumer
Medical

Industrial and instrumentation
Automotive

0.5 mm Power Pin Board-to-Board Connectors

Manufacturer Part Number	Description	Available Quantity	Price	View Details

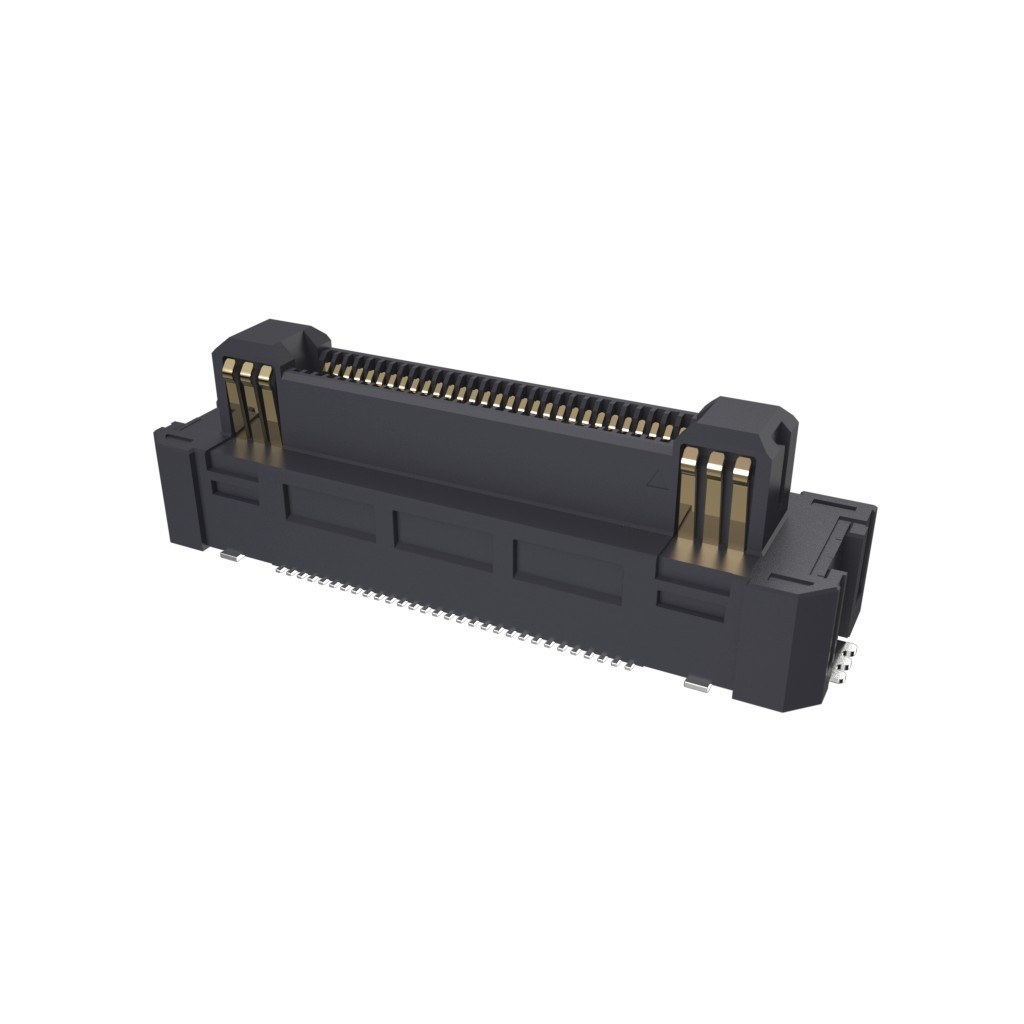

B322-1B7L1-11260-E100	B322-1B7L1-11260-E100-FLOATING P	2920 - Immediate	$24.86	View Details
B3291B7L111260E100	FBTB P0.5 ,60P, RECEPTACLE, SPOT	2256 - Immediate	$26.26	View Details
B3241B7L111260E100	FBTB P0.5 ,60P, PLUG, SPOT PLATI	4377 - Immediate	$21.73	View Details
B3291B7L1112A0E100	FBTB P0.5 ,100P, RECEPTACLE, SPO	7506 - Immediate	$50.96	View Details
B3221B7L1112A0E100	FBTB P0.5 ,100P, PLUG, SPOT PLAT	2228 - Immediate	$27.82	View Details
