Energy Storage Systems Connector Solutions

Interconnect solutions for residential and commercial energy storage systems.

Amphenol provides a wide variety of interconnect solutions for residential and commercial energy storage systems (ESS). Solutions range from high power connectors with small footprints, to hassle-free designs for field installations and high reliability for rugged and harsh conditions.

Resource: Energy Storge System Brochure

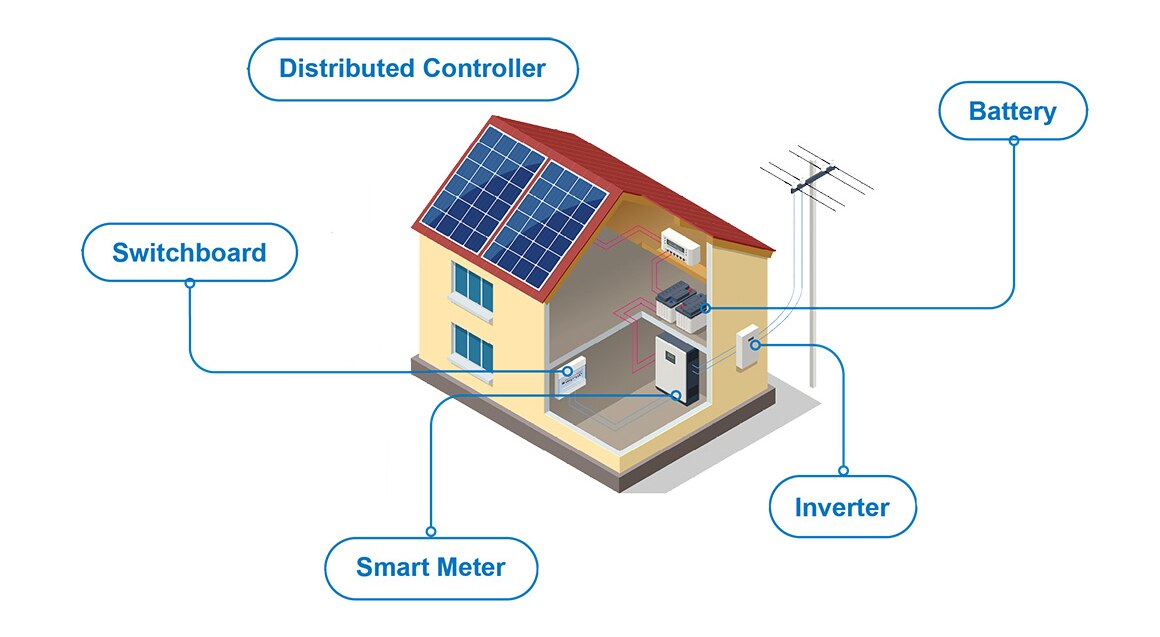

Residential System Components

Click on an application below to learn more about the key connector solutions

Battery Inverter Smart Meter Switchboard Distributed Controller Residential System

Battery

WireLock® 1.80 mm Wire-to-Board Connectors

WireLock® 1.80 mm Wire-to-Board Connectors

WireLock 1.8 mm wire-to-board connector's compact design addresses the growing demand for miniaturizing the automotive application market.

FlexLock® 2.54 mm FPC-to-Board Connectors

FlexLock® 2.54 mm FPC-to-Board Connectors

FlexLock 2.54 mm FPC-to-board connectors are designed to address the growing demands of the automotive market.

Distributed Controller

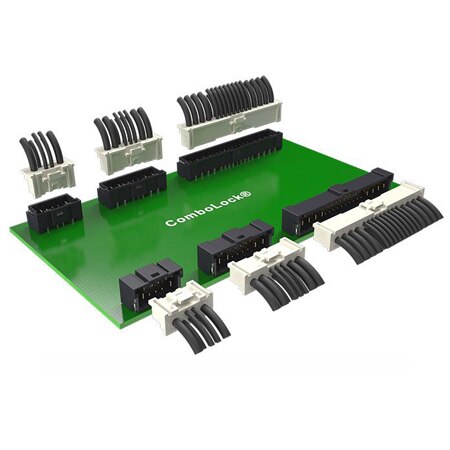

ComboLock® Wire-to-Board Connectors

ComboLock® Wire-to-Board Connectors

ComboLock wire-to-board connectors have a compact design for applications with limited space along with power and signal requirements.

USB Solutions

USB Solutions

Amphenol develops a wide range of USB solutions and is one of the earliest adopters of the USB 3.1 Gen 2 Type C connector with a comprehensive range of USB 2.0, 3.0, and 3.1 connectors available in straight, right angle, surface mount and through hole configurations.

Modular Connector System

Modular Connector System

Expansive range of industry standard solutions for next generation applications.

Inverter

Minitek Microspace™ 1.27 mm Crimp-to-Wire Connectors

Minitek Microspace™ 1.27 mm Crimp-to-Wire Connectors

Minitek Microspace crimp-to-wire connector platform's unique design enables LV214 Severity-2 and performs at 1.27 mm pitch.

BergStik® 2.54 mm Unshrouded Headers

BergStik® 2.54 mm Unshrouded Headers

BergStik 2.54 mm unshrouded headers are available in surface-mount (SMT), through-hole (THT), press-fit, stacking, and pin-in-paste (PIP) versions.

Dubox® 2.54 mm Board/Wire-to-Board Connectors

Dubox® 2.54 mm Board/Wire-to-Board Connectors

Dubox solution is a comprehensive and extensive connector product family designed with solder tails self-center on circuit pads to assure coplanarity.

FFC and FPC Connectors

FFC and FPC Connectors

Available in front flip, back flip, or slider configurations with low insertion force (LIF) or zero insertion force (ZIF) models, the connectors are available in heights of 5.30 mm down to 0.70 mm.

Smart Meter

USB Solutions

USB Solutions

Amphenol develops a wide range of USB solutions and is one of the earliest adopters of the USB 3.1 Gen 2 Type C connector with a comprehensive range of USB 2.0, 3.0, and 3.1 connectors available in straight, right angle, surface mount and through hole configurations.

Modular Connector System

Modular Connector System

Expansive range of industry standard solutions for next generation applications.

FFC and FPC Connectors

FFC and FPC Connectors

Available in front flip, back flip, or slider configurations with low insertion force (LIF) or zero insertion force (ZIF) models, the connectors are available in heights of 5.30 mm down to 0.70 mm.

Switchboard

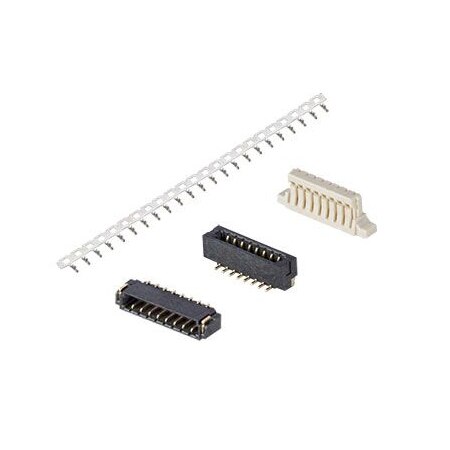

Minitek® 0.80 mm Wire-to-Board Connector System

Minitek® 0.80 mm Wire-to-Board Connector System

Minitek 0.80 mm connector system is an ideal solution for devices that require compact and low-profile connectors.

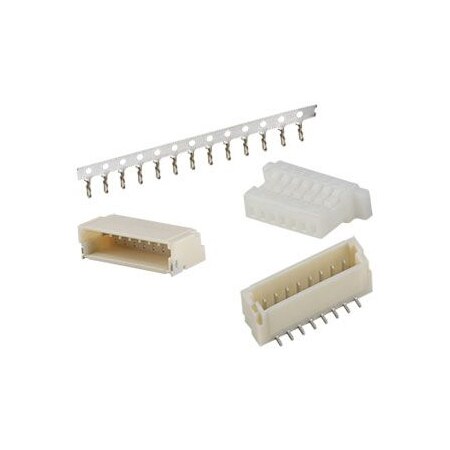

Minitek® 1.00 mm Wire-to-Board Connector System

Minitek® 1.00 mm Wire-to-Board Connector System

Minitek 1.00 mm connector system is the ideal solution for devices that require compact and low-profile connectors.

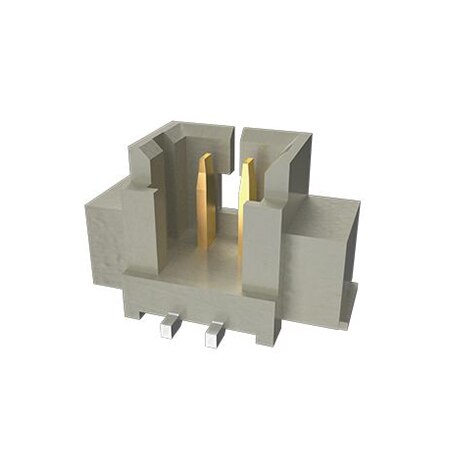

1.25 mm Wire-To-Board Connector Series

1.25 mm Wire-To-Board Connector Series

1.25 mm pitch wire-to-board connector series is designed for a wide variety of applications in industrial, automotive, consumer, and white goods sectors.

FFC and FPC Connectors

FFC and FPC Connectors

Available in front flip, back flip, or slider configurations with low insertion force (LIF) or zero insertion force (ZIF) models, the connectors are available in heights of 5.30 mm down to 0.70 mm.
