Amphenol Communications Solutions

Conan® Lite 1.00 mm Connectors

FCI Basics' vertical headers, receptacles, and right-angle headers feature an audible click to ensure perfect mating

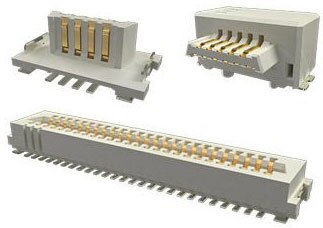

Image of Amphenol's Conan® Lite 1.00 mm ConnectorsFCI Basics' Conan lite 1.00 mm connectors come with a robust metal down feature that helps establish a reliable connection with the PCB in both parallel and perpendicular board-to-board applications. These connectors also feature an audible click ensuring mating in-place. Conan lite vertical headers, receptacles, and right-angle headers are offered in 9 to 69 positions and 4.15 mm to 7.5 mm mating heights, making them suitable for a wide range of applications.

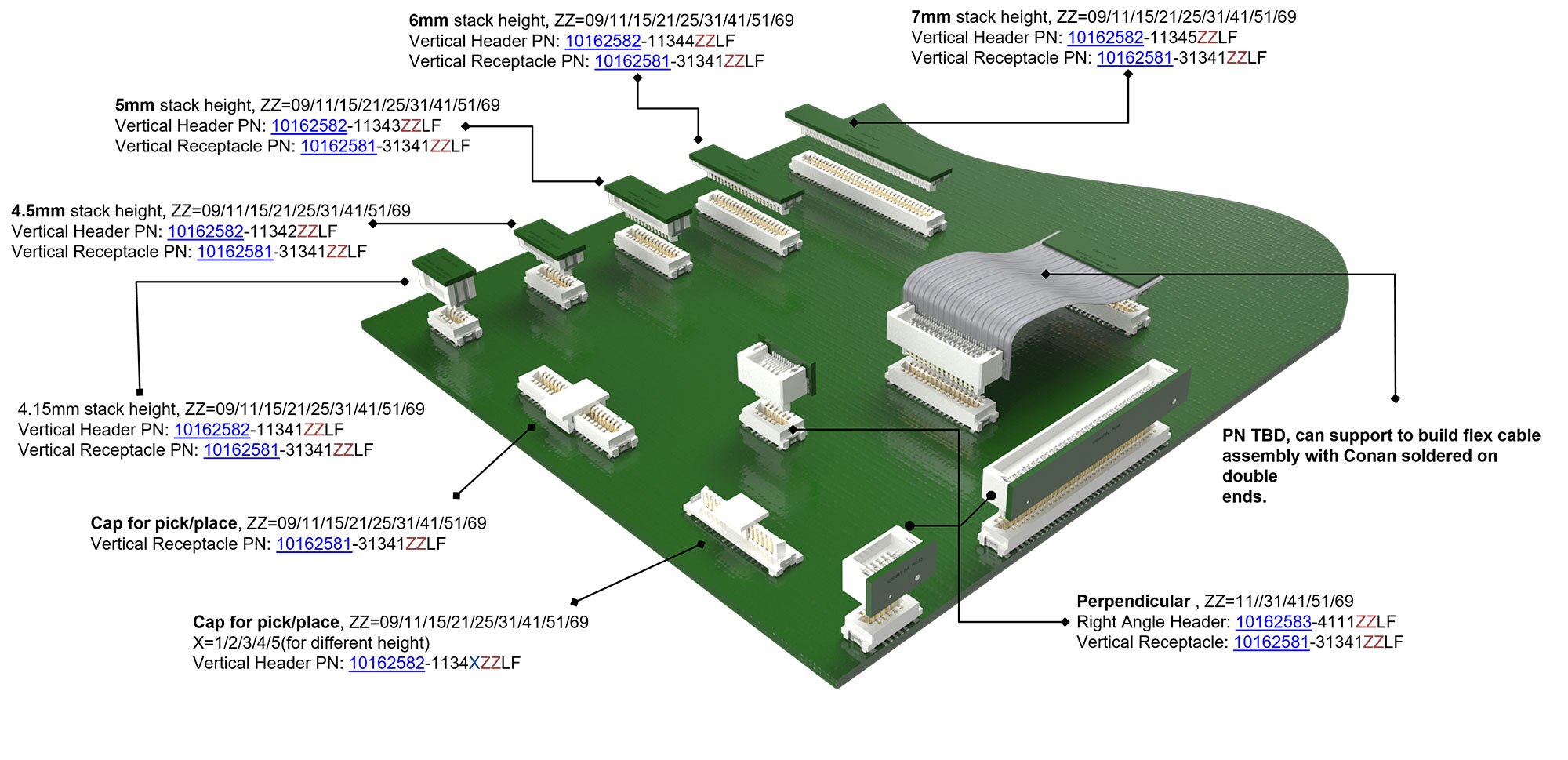

Conan Lite Product Overview
    Image of Amphenol's Conan® Lite 1.00 mm Connectors
Resources
Features
  • A comprehensive solution for various applications
  • Supports reliable and secure mating
  • Audible click to ensure perfect mating
  • Supports high-speed data transmission
  • Supports auto reflow process
Applications
  • Data servers
  • Industrial and instrumentation
  • Automotive

Conan® Lite 1.00 mm Receptacles

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONAN LITE RECEPTACLE, 9 POSITIO10162581-3134109LFCONAN LITE RECEPTACLE, 9 POSITIO1671 - Immediate$9.52View Details
CONAN LITE RECEPTACLE, 11 POSITI10162581-3134111LFCONAN LITE RECEPTACLE, 11 POSITI4388 - Immediate$10.02View Details
CONAN LITE RECEPTACLE, 15 POSITI10162581-3134115LFCONAN LITE RECEPTACLE, 15 POSITI2849 - Immediate$10.59View Details
CONAN LITE RECEPTACLE, 21 POSITI10162581-3134121LFCONAN LITE RECEPTACLE, 21 POSITI3494 - Immediate$11.74View Details
CONAN LITE RECEPTACLE, 25 POSITI10162581-3134125LFCONAN LITE RECEPTACLE, 25 POSITI6648 - Immediate$12.32View Details
CONAN LITE RECEPTACLE, 31 POSITI10162581-3134131LFCONAN LITE RECEPTACLE, 31 POSITI1887 - Immediate$13.22View Details
CONAN LITE RECEPTACLE, 41 POSITI10162581-3134141LFCONAN LITE RECEPTACLE, 41 POSITI1395 - Immediate$15.52View Details
CONAN LITE RECEPTACLE, 51 POSITI10162581-3134151LFCONAN LITE RECEPTACLE, 51 POSITI1729 - Immediate$17.57View Details
CONAN LITE RECEPTACLE, 69 POSITI10162581-3134169LFCONAN LITE RECEPTACLE, 69 POSITI307 - Immediate$19.62View Details

Conan® Lite 1.00 mm Headers

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONAN LITE HEADER, 9 POSITION10162582-1134109LFCONAN LITE HEADER, 9 POSITION4835 - Immediate$9.52View Details
CONAN LITE HEADER, 11 POSITION10162582-1134111LFCONAN LITE HEADER, 11 POSITION2288 - Immediate$10.02View Details
CONAN LITE HEADER, 15POSITION10162582-1134115LFCONAN LITE HEADER, 15POSITION2484 - Immediate$10.59View Details
CONAN LITE HEADER, 21 POSITION10162582-1134121LFCONAN LITE HEADER, 21 POSITION3016 - Immediate$11.74View Details
CONAN LITE HEADER, 25 POSITION10162582-1134125LFCONAN LITE HEADER, 25 POSITION3352 - Immediate$12.32View Details
CONAN LITE HEADER, 31 POSITION10162582-1134131LFCONAN LITE HEADER, 31 POSITION1335 - Immediate$13.22View Details
CONAN LITE HEADER, 41 POSITION10162582-1134141LFCONAN LITE HEADER, 41 POSITION3079 - Immediate$15.52View Details
CONAN LITE HEADER, 51 POSITION10162582-1134151LFCONAN LITE HEADER, 51 POSITION1137 - Immediate$17.57View Details
CONAN LITE HEADER, 69 POSITION10162582-1134169LFCONAN LITE HEADER, 69 POSITION737 - Immediate$19.62View Details

Conan® Lite 1.00 mm Right-Angle Headers

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
CONAN LITE R/A HEADER, 11 POSITI10162583-411111LFCONAN LITE R/A HEADER, 11 POSITI220 - Immediate$10.59View Details
CONAN LITE R/A HEADER, 31 POSITI10162583-411131LFCONAN LITE R/A HEADER, 31 POSITI623 - Immediate$12.97View Details
CONAN LITE R/A HEADER, 41 POSITI10162583-411141LFCONAN LITE R/A HEADER, 41 POSITI1297 - Immediate$16.26View Details
CONAN LITE R/A HEADER, 51 POSITI10162583-411151LFCONAN LITE R/A HEADER, 51 POSITI862 - Immediate$18.97View Details
CONAN LITE R/A HEADER, 69 POSITI10162583-411169LFCONAN LITE R/A HEADER, 69 POSITI453 - Immediate$23.07View Details
Published: 2021-09-15
