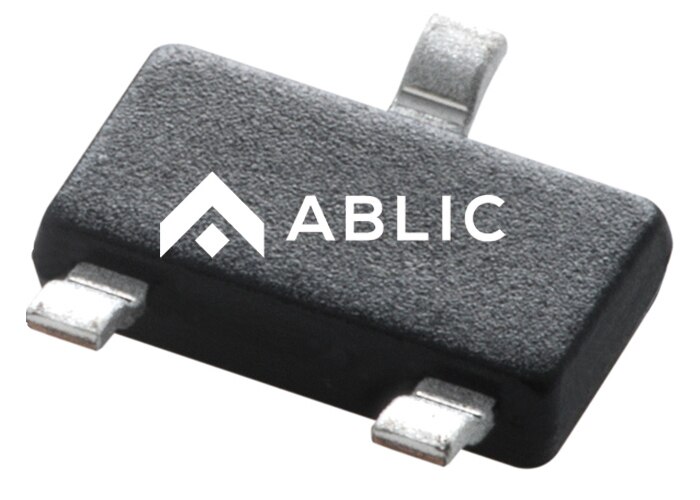

            S-576Z B Series ZCL™ Hall Effect ICs
                    ABLIC's ZCL (Zero Crossing Latch) Hall effect ICs transform the brushless DC motor market

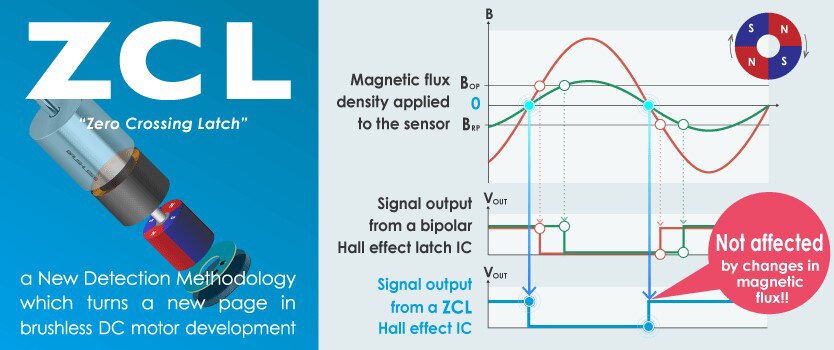

ABLIC’s ZCL Hall effect IC is a latch-type Hall effect IC that uses a new detection method that detects the output signal at the zero-crossing point where polarity changes. It is ideal for BLDC motor control, and unlike other Hall effect ICs, it is not thrown off by variations in magnetic flux density and can maintain stable detection. The high energy efficiency, reliability, low noise performance, and other characteristics make it ideal for consumer products requiring granular control.

Features and Benefits

Rotation angle detection is not easily impacted by changes in magnetic flux
Pole detection

ZCL detection

Output logic (the option can be selected)

V_OUT = "L" at S pole detection
V_OUT = "H" at S pole detection

Output form (the option can be selected)

Nch open-drain output
Nch driver + built-in pull-up resistor (1.2 kΩ typ.)

Zero crossing latch point

B_Z = 0.0 mT typ.

Release point (S pole) (the option can be selected)

B_RS = 3.0 mT typ.
B_RS = 6.0 mT typ.

Compact and low-profile motor housing
Chopping frequency

f_C = 500 kHz typ.

Output delay time

t_D = 8.0 μs typ.

Power supply voltage range

V_DD = 2.7 V to 26.0 V [when output form is Nch driver + built-in pull-up resistor (1.2 kΩ typ.)]

Built-in regulator
Built-in output current limit circuit
Operation temperature range

Ta = −40°C to +125°C

Lead-free (Sn 100%), halogen-free

Applications

Robots (brushless DC motors for vertical movement and operation of joints)
Electric power tools, cordless vacuum cleaners, and others
Consumer products requiring granular control
