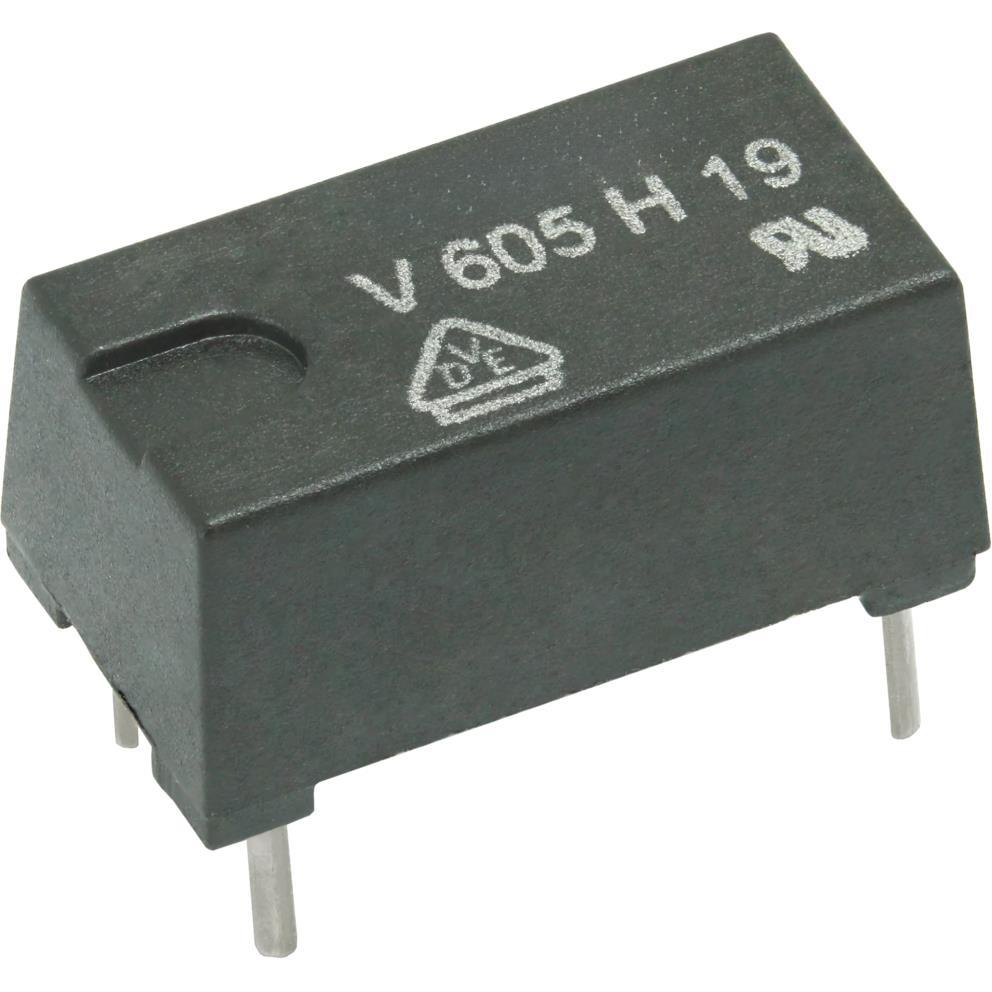

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
CNY65ST | |
|---|---|
DigiKey Part Number | CNY65STTR-ND - Tape & Reel (TR) CNY65STCT-ND - Cut Tape (CT) CNY65STDKR-ND - Digi-Reel® |
Manufacturer | |
Manufacturer Product Number | CNY65ST |
Description | OPTOISOLTR 8.2KV 1CH TRANS 4-SMD |
Manufacturer Standard Lead Time | 6 Weeks |
Customer Reference | |
Detailed Description | Optoisolator Transistor Output 8200Vrms 1 Channel 4-SMD |
Datasheet | Datasheet |
EDA/CAD Models | CNY65ST Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Manufacturer | Vishay Semiconductor Opto Division | |
Series | - | |
Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Part Status | Active | |
Number of Channels | 1 | |
Voltage - Isolation | 8200Vrms | |
Current Transfer Ratio (Min) | 50% @ 5mA | |
Current Transfer Ratio (Max) | 300% @ 5mA | |
Turn On / Turn Off Time (Typ) | 5µs, 3µs | |
Rise / Fall Time (Typ) | 2.4µs, 2.7µs | |
Input Type | DC | |
Output Type | Transistor | |
Voltage - Output (Max) | 32V | |
Current - Output / Channel | 50mA | |
Voltage - Forward (Vf) (Typ) | 1.32V | |
Current - DC Forward (If) (Max) | 75 mA | |
Vce Saturation (Max) | 300mV | |
Grade | - | |
Qualification | - | |
Operating Temperature | -55°C ~ 85°C | |
Mounting Type | Surface Mount | |
Package / Case | 4-SMD, Gull Wing | |
Supplier Device Package | 4-SMD | |
Base Product Number |
In-Stock: 2,744
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Cut Tape (CT) & Digi-Reel®
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $22.64000 | $22.64 |
| 10 | $16.42300 | $164.23 |
| 100 | $12.72090 | $1,272.09 |
Tape & Reel (TR)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 400 | $11.28320 | $4,513.28 |
| 800 | $10.72373 | $8,578.98 |
| 1,200 | $10.43701 | $12,524.41 |
| 2,000 | $10.11334 | $20,226.68 |
| 2,800 | $9.92094 | $27,778.63 |
| 4,000 | $9.73337 | $38,933.48 |
