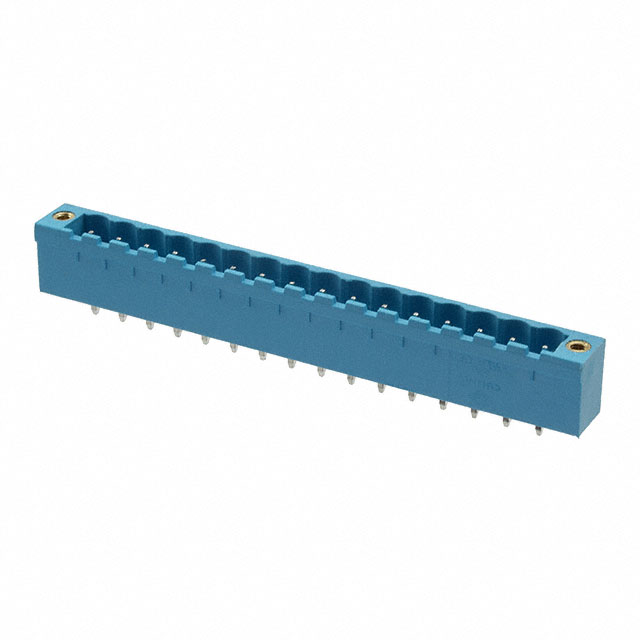

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TBP01R2W-508-16BE | |
|---|---|
DigiKey Part Number | 102-6466-ND |
Manufacturer | |
Manufacturer Product Number | TBP01R2W-508-16BE |
Description | TERM BLOCK HDR 16POS 5.08MM |
Manufacturer Standard Lead Time | 12 Weeks |
Customer Reference | |
Detailed Description | 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole |
Datasheet | Datasheet |
EDA/CAD Models | TBP01R2W-508-16BE Models |
Product Attributes
Filter Similar Products
Show Empty Attributes
Category | Voltage - IEC 320 V |
Manufacturer Same Sky (Formerly CUI Devices) | Current - UL 16 A |
Series | Voltage - UL 300 V |
Packaging Box | Color Blue |
Part Status Active | Operating Temperature -40°C ~ 105°C |
Type Header, Male Pins, Shrouded (4 Side) | Contact Mating Finish Tin |
Number of Positions 16 | Features Mating Flange |
Positions Per Level 16 | Material Flammability Rating UL94 V-0 |
Number of Levels 1 | Contact Material Copper Alloy |
Pitch 0.200" (5.08mm) | Housing Material Polyamide (PA66), Nylon 6/6 |
Header Orientation Vertical | Contact Tail Length 0.157" (4.00mm) |
Termination Style Solder | Insulation Height 0.472" (12.00mm) |
Mounting Type Through Hole | Base Product Number |
Current - IEC 20A |
Report Product Information Error
Documents & Media
Environmental & Export Classifications
Product Questions and Answers
Additional Resources
In-Stock: 303
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Box
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $24.17000 | $24.17 |
| 10 | $17.28200 | $172.82 |
| 25 | $15.08480 | $377.12 |
| 50 | $13.69200 | $684.60 |
| 100 | $12.52790 | $1,252.79 |
| 300 | $11.10370 | $3,331.11 |
| 600 | $10.43020 | $6,258.12 |
| 1,200 | $9.89793 | $11,877.52 |
| 5,100 | $9.13236 | $46,575.04 |
