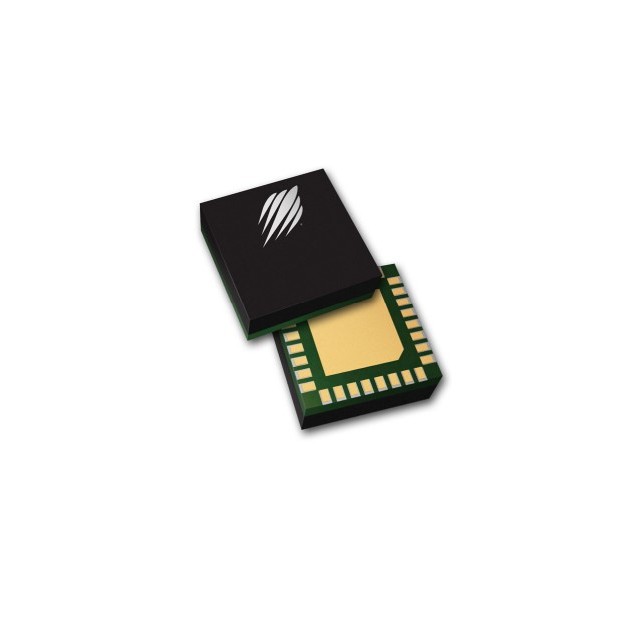

PE42540G-Z

DigiKey Part Number
1046-1167-2-ND - Tape & Reel (TR)
1046-1167-1-ND - Cut Tape (CT)
1046-1167-6-ND - Digi-Reel®
Manufacturer
Manufacturer Product Number
PE42540G-Z
Description
IC RF SWITCH SP4T 8GHZ 32LGA
Manufacturer Standard Lead Time
16 Weeks
Customer Reference
Detailed Description
RF Switch IC SP4T 8 GHz 50Ohm 32-LGA (5x5)
Datasheet
 Datasheet
EDA/CAD Models
PE42540G-Z Models
Product Attributes
Type
Description
Select All
Category
Manufacturer
pSemi
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status
Active
RF Type
-
Topology
Absorptive
Circuit
SP4T
Frequency Range
10Hz ~ 8GHz
Isolation
31dB
Insertion Loss
1.2dB
Test Frequency
8GHz
P1dB
33dBm
IIP3
58dBm
Features
-
Impedance
50Ohm
Voltage - Supply
3.3V
Operating Temperature
-40°C ~ 85°C
Package / Case
32-TFQFN Exposed Pad
Supplier Device Package
32-LGA (5x5)
Base Product Number
In-Stock: 2,339
Can ship immediately
All prices are in HKD
Cut Tape (CT) & Digi-Reel®
QuantityUnit PriceExt Price
1$76.38000$76.38
101$69.35485$7,004.84
1,000$57.34638$57,346.38
* All Digi-Reel orders will add a $55.00 reeling fee.
Tape & Reel (TR)
QuantityUnit PriceExt Price
3,000$57.34643$172,039.29
Manufacturers Standard Package
