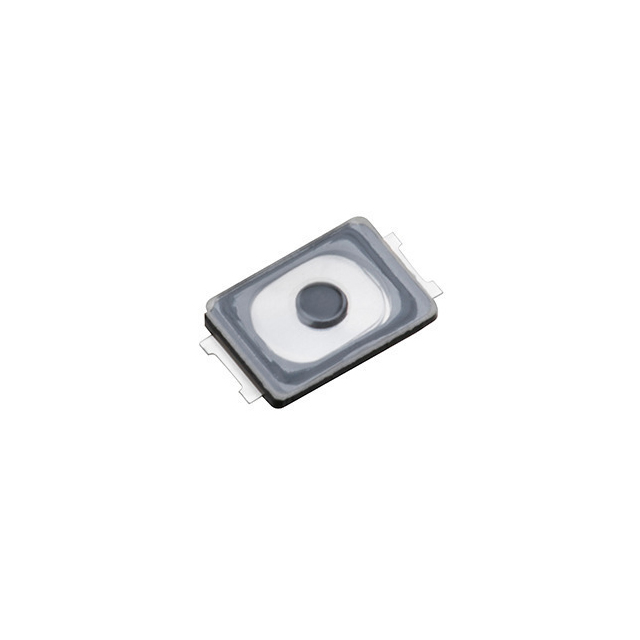

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
EVP-AWED2A | |
|---|---|
DigiKey Part Number | P19745TR-ND - Tape & Reel (TR) P19745CT-ND - Cut Tape (CT) P19745DKR-ND - Digi-Reel® |
Manufacturer | |
Manufacturer Product Number | EVP-AWED2A |
Description | SWITCH TACTILE SPST-NO 0.02A 15V |
Manufacturer Standard Lead Time | 18 Weeks |
Customer Reference | |
Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount |
Datasheet | Datasheet |
EDA/CAD Models | EVP-AWED2A Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Part Status | Active | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Contact Rating @ Voltage | 0.02A @ 15VDC | |
Actuator Type | Standard | |
Mounting Type | ||
Actuator Height off PCB, Vertical | 0.60mm | |
Actuator Length, Right Angle | - | |
Actuator Orientation | Top Actuated | |
Termination Style | SMD (SMT) Tab | |
Outline | 3.00mm x 2.00mm | |
Illumination | Non-Illuminated | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Operating Force | 330gf | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Features | - | |
Operating Temperature | -40°C ~ 85°C | |
Actuator Material | - | |
Switch Travel | 0.15mm | |
Mechanical Life | 300,000 Cycles | |
Base Product Number |
In-Stock: 11,239
Check for Additional Incoming Stock
Quantity
All prices are in HKD
Cut Tape (CT) & Digi-Reel®
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $4.61000 | $4.61 |
| 10 | $3.95100 | $39.51 |
| 25 | $3.68120 | $92.03 |
| 100 | $3.28950 | $328.95 |
| 250 | $3.04716 | $761.79 |
| 500 | $2.87660 | $1,438.30 |
| 1,000 | $2.71870 | $2,718.70 |
| 2,500 | $2.53091 | $6,327.27 |
| 5,000 | $2.40500 | $12,025.00 |
Tape & Reel (TR)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 10,000 | $2.33860 | $23,386.00 |
| 20,000 | $2.23744 | $44,748.80 |
| 30,000 | $2.18411 | $65,523.30 |
